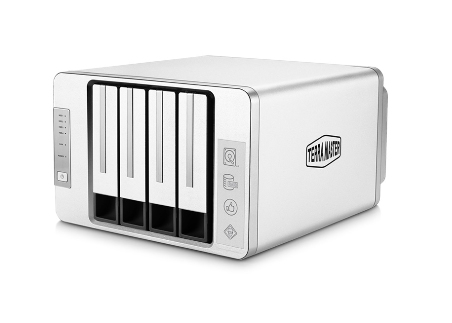

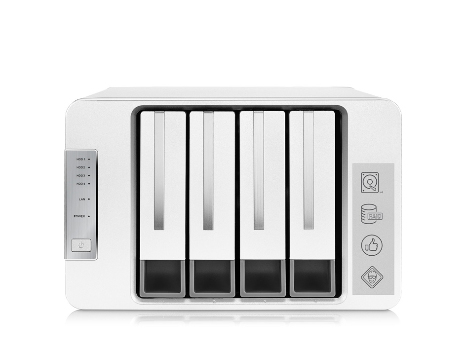

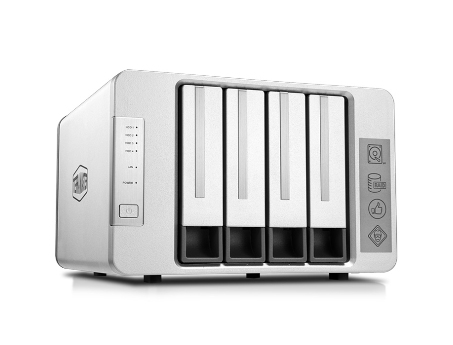

F4-210 16TB 4x4TB Seagate IronWolf 4 Bay NAS Desktop
Model F4-210 16TB 4x4TB Seagate IronWolf 4 Bay NAS DesktopPart no. F4-210/16TB-IW
74 specifications
- Memory2 GB
- Noise19.8 dB
- TypeNAS
- ColourGrey
- Storage drives installedYes
- Processor frequency1.4 GHz
Overview
- Memory
- 2 GB
- Noise
- 19.8 dB
- Type
- NAS
- Colour
- Grey
- Storage drives installed
- Yes
- Processor frequency
- 1.4 GHz
- Brand
- TerraMaster
- Category
- NAS & Storage Servers
- Model
- F4-210 16TB 4x4TB Seagate IronWolf 4 Bay NAS Desktop
- Part number
- F4-210/16TB-IW
- Also known as
- TerraMaster F4-210 16TB 4x4TB Seagate IronWolf 4 Bay NAS Desktop 2 GB HDD Grey
Specifications
74 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| Maximum supported storage capacity | 64 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10 |
| Online RAID migration | Yes |

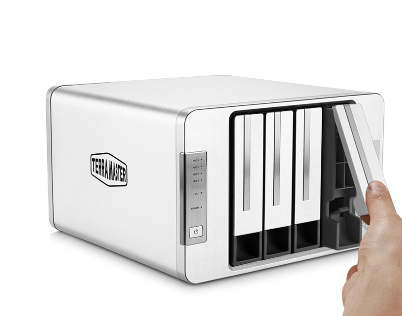

| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.4 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum RAM supported | 2 GB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Supported network protocols | CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | Grey |

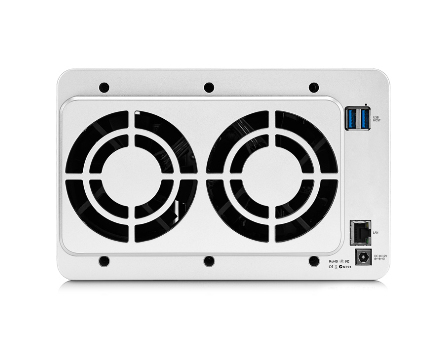

| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm |
| Fan diameter 2 | 8 cm |
| LED indicators | HDD, LAN, Power |
| Built-in display | No |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Multilingual support | Yes |
| Number of users | 128 user(s) |
| Noise level | 19.8 dB |
| Third-party support | Yes |
| Snapshot | Yes |
| Management protocols | SNMP |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5 |
| Hot spare | Yes |
| On/off switch | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | AES, HTTPS, SNMP, SSH |
| Share folder | 128 |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply location | External |
| Power supply unit (PSU) capacity | 90 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 25.6 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 136 mm |
| Height | 227 mm |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Digital Living Network Alliance (DLNA) certified | Yes |
