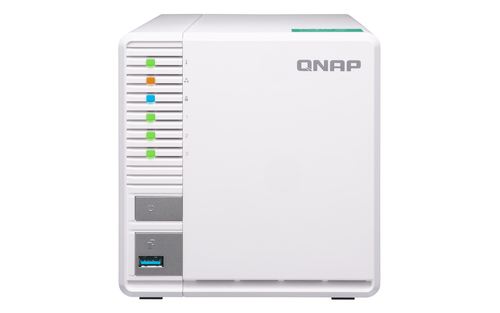

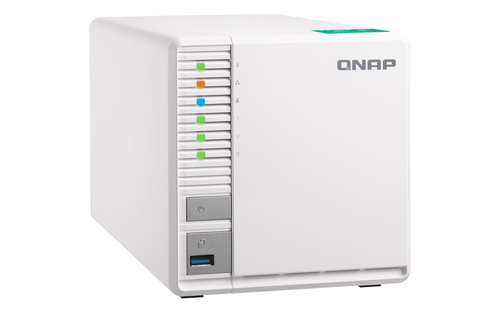

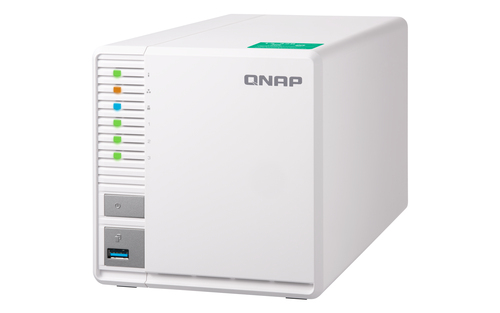

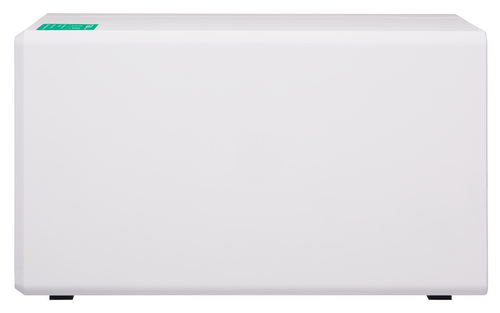

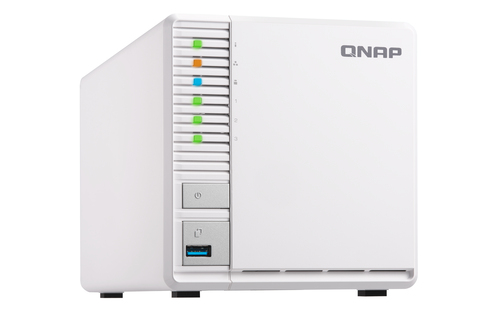

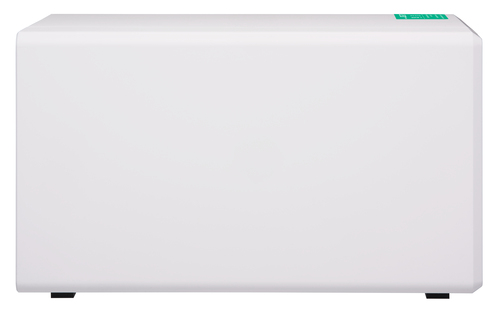

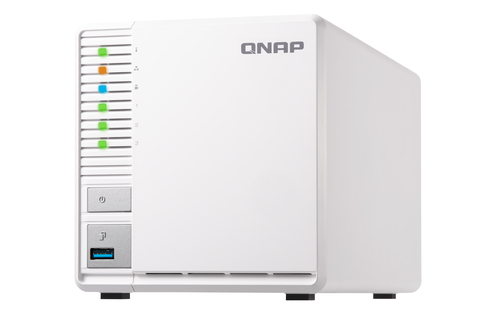

QNAP TS-328 + 3 x WD Red 4TB

TS-328 + 3 x WD Red 4TB

Model TS-328 + 3 x WD Red 4TBPart no. WD40EFRX?X3 + QNAP TS-328EAN 8432390013209

88 specifications

ProcessorRealtek
Memory2 GB
Noise16.5 dB
TypeNAS
OSQNAP Turbo System
Weight1.64 kg

See all specifications

Overview

Processor: Realtek
Memory: 2 GB
Noise: 16.5 dB
Type: NAS
OS: QNAP Turbo System
Weight: 1.64 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-328 + 3 x WD Red 4TB
Part number: WD40EFRX?X3 + QNAP TS-328
EAN / UPC: 8432390013209
Also known as: QNAP TS-328 + 3 x WD Red 4TB NAS Compact Realtek RTD1296 2 GB DDR4 12 TB HDD QNAP Turbo System White

Specifications

88 specifications in 13 groups

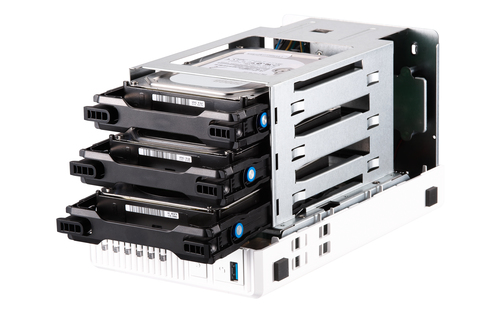

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	12 TB
Number of storage drives installed	3
Number of storage drives supported	3
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	4 TB
Storage drive interface	Serial ATA III
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive size	3.5"
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Processor

Specification	Value
Processor family	Realtek
Processor model	RTD1296
Processor frequency	1.4 GHz
Processor cores	4
Processor architecture	ARM Cortex-A53

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR4
Maximum RAM supported	2 GB
Flash memory	4000 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP (IPv4, IPv6), CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, MSC, UPnP, Bonjour

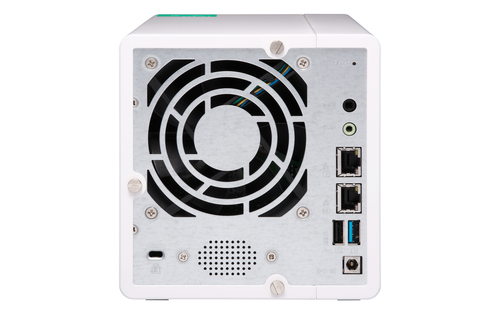

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
3.5 mm (1/8-inch) out	Yes

Design

Specification	Value
Chassis type	Compact
Cooling type	Active
Product colour	White
Number of fans	1 fan(s)
Fan diameter	9 cm
LED indicators	HDD, LAN, Power, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in speaker(s)	Yes

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	16.5 dB
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Safari 7, Chrome, Internet Explorer, Firefox
Built-in FTP server	Yes
Built-in iTunes server	Yes
On/off switch	Yes
Reset button	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB, AFP, FTP
System log	Yes

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3.4
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	65 W
Number of power supply units	1
Power consumption (typical)	18.35 W
Power consumption (HDD standby)	7.24 W
AC input voltage	100 - 240 V
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	150 mm
Depth	260.1 mm
Height	142 mm
Weight	1.64 kg
Package weight	2.69 kg

Packaging content

Specification	Value
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Other features

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
