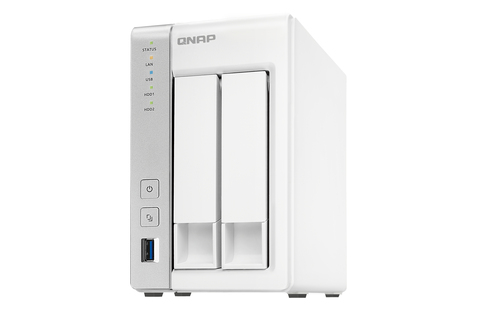

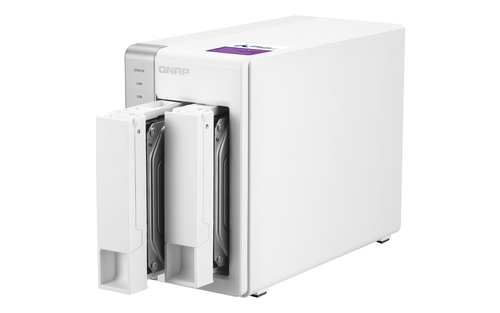

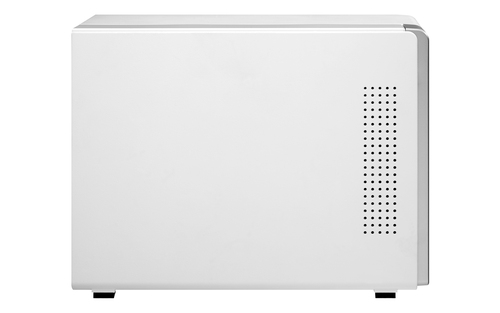

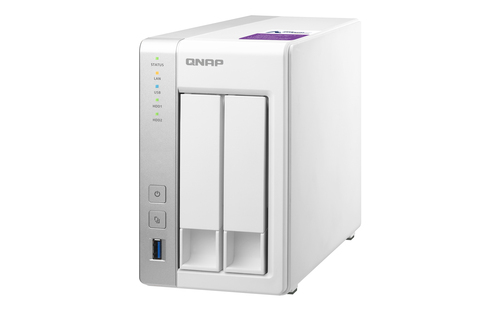

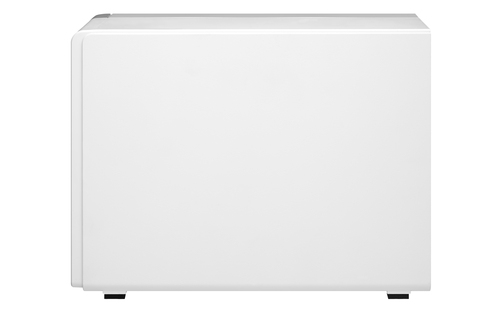

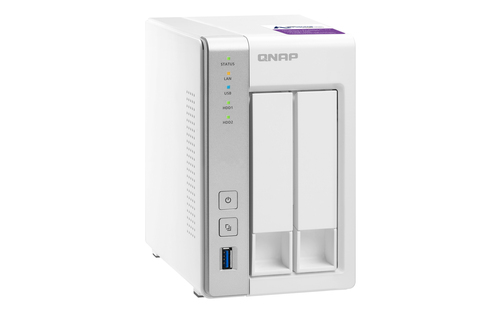

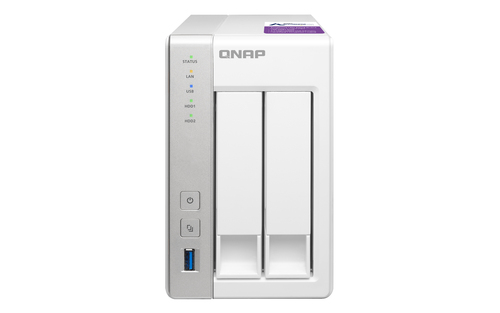

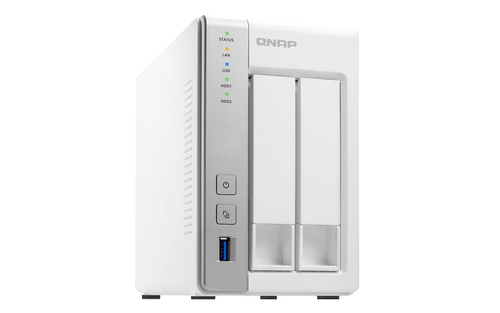

TS-231P+2 x WD Red 4TB

Model TS-231P+2 x WD Red 4TBPart no. WD40EFRX?X2 + QNAP TS-231EAN 8432390013186

89 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-231P+2 x WD Red 4TB
Part number: WD40EFRX?X2 + QNAP TS-231
EAN / UPC: 8432390013186
Also known as: QNAP TS-231P+2 x WD Red 4TB NAS Compact Annapurna Labs AL212 1 GB DDR3 8 TB HDD QNAP Turbo System Grey, White

89 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	2
Number of storage drives supported	2
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	4 TB
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	IPv4, IPv6, CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value

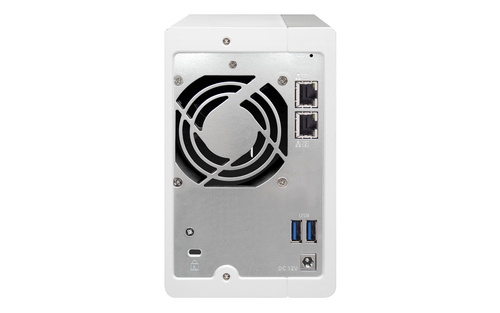

Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	19.2 dB
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Internet Explorer 10+, Firefox 8+, Safari 4+, Chrome
Built-in FTP server	Yes
Built-in iTunes server	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, HTTPS, SNMP, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.2
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	65 W
Number of power supply units	1
Power consumption (typical)	15.6 W
AC input voltage	100 - 240 V
Fan voltage	12 V
