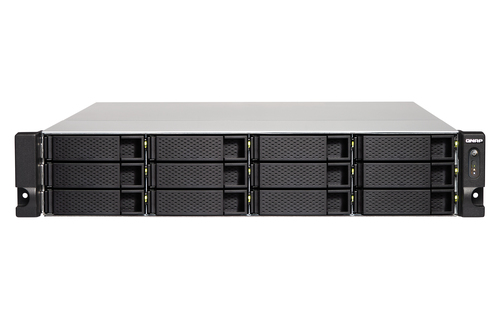

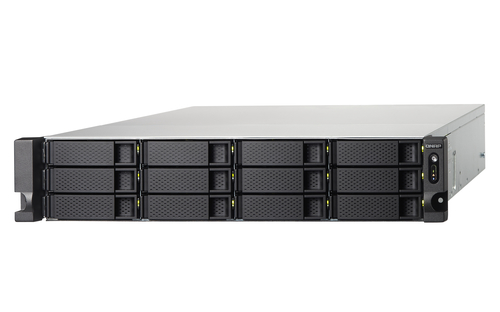

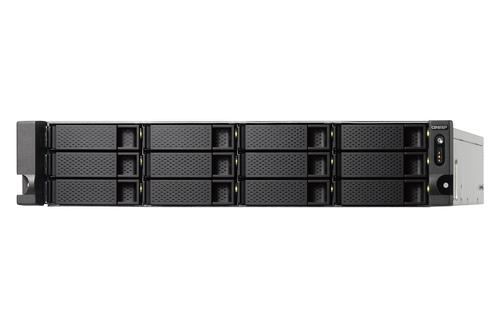

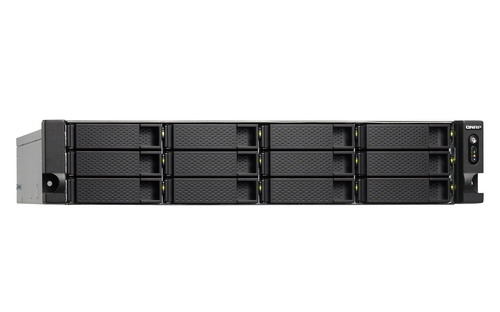

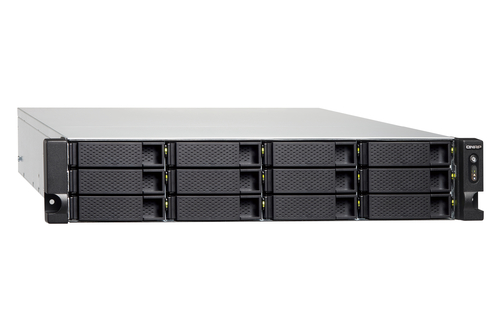

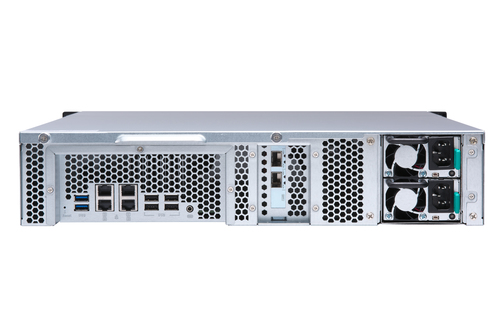

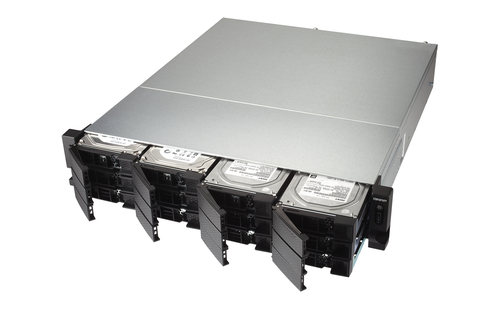

QNAP TS-1273U-RP-8G/48TB GOLD 12 Bay

TS-1273U-RP-8G/48TB GOLD 12 Bay

Model TS-1273U-RP-8G/48TB GOLD 12 BayPart no. TS-1273U-RP-8G/48TB-GOLDEAN 5051868131592

80 specifications

ProcessorAMD Embedded R-Series SoC
Memory8 GB
TypeNAS
OSQNAP Turbo System
ColourBlack
Storage drives installedYes

See all specifications

Overview

Processor: AMD Embedded R-Series SoC
Memory: 8 GB
Type: NAS
OS: QNAP Turbo System
Colour: Black
Storage drives installed: Yes

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-1273U-RP-8G/48TB GOLD 12 Bay
Part number: TS-1273U-RP-8G/48TB-GOLD
EAN / UPC: 5051868131592
Also known as: QNAP TS-1273U-RP-8G/48TB GOLD 12 Bay NAS Rack (2U) AMD Embedded R-Series SoC RX-421ND 8 GB DDR4 HDD QNAP Turbo System Black

Specifications

80 specifications in 13 groups

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	48 TB
Number of storage drives supported	12
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Embedded R-Series SoC
Processor model	RX-421ND
Processor frequency	2.1 GHz
Processor boost frequency	3.4 GHz

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4
Maximum RAM supported	64 GB
Memory slots	4
Flash memory	512 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	CIFS/SMB, AFP v3.3, NFS v3, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC
WLAN adapter supported	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP+

Design

Specification	Value
Chassis type	Rack (2U)
Cooling type	Active
Product colour	Black
Number of fans	2 fan(s)
Fan diameter	7 cm
LED indicators	HDD, LAN, Power, Status, USB

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Chrome, Firefox, Internet Explorer 10+, Safari 7+
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	300 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	482 mm
Depth	534 mm
Height	89 mm

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Other features

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
