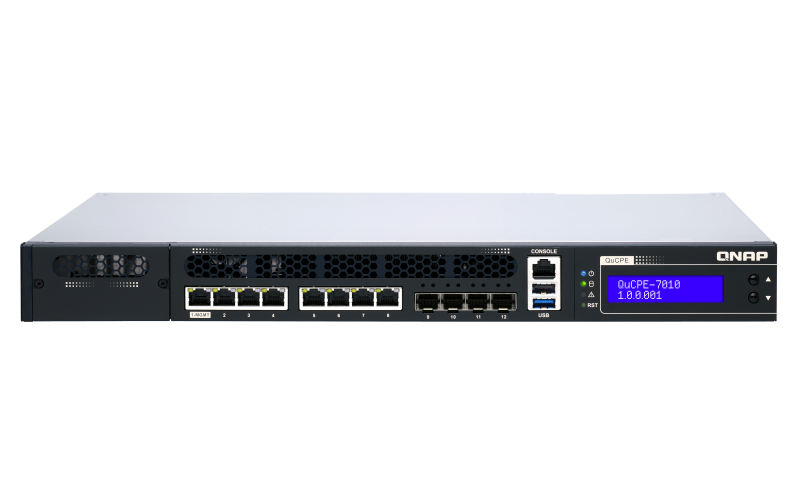

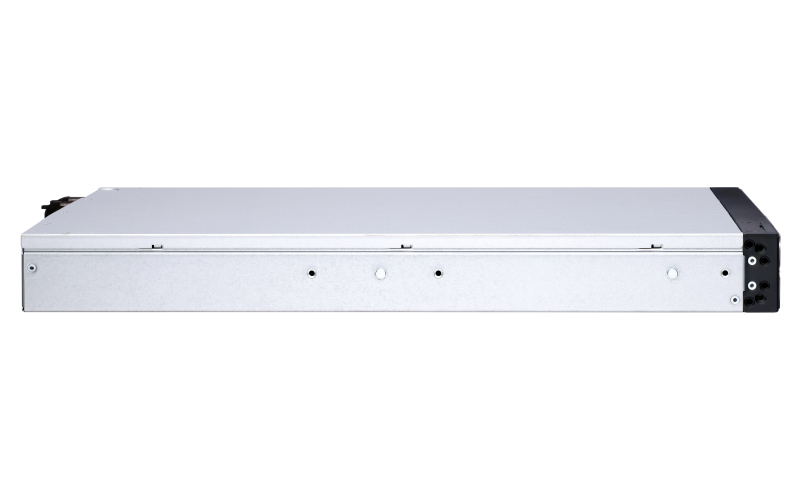

QNAP QUCPE-7010-D2166NT-64G NAS/storage server Rack (1U) Intel® Xeon® D

QUCPE-7010-D2166NT-64G NAS/storage server Rack (1U) Intel® Xeon® D

64 GB DDR4 Black, Silver

Model QUCPE-7010-D2166NT-64GEAN 4713213518908

44 specifications

ProcessorIntel® Xeon® D
Memory64 GB
TypeNAS
ColourBlack, Silver
Storage drives installedNo
Processor manufacturerIntel

See all specifications

Overview

Processor: Intel® Xeon® D
Memory: 64 GB
Type: NAS
Colour: Black, Silver
Storage drives installed: No
Processor manufacturer: Intel

Brand: QNAP
Category: NAS & Storage Servers
Model: QUCPE-7010-D2166NT-64G
Part number: QUCPE-7010-D2166NT-64G
EAN / UPC: 4713213518908
Also known as: QNAP QUCPE-7010-D2166NT-64G NAS/storage server Rack (1U) Intel® Xeon® D 64 GB DDR4 Black, Silver

Specifications

44 specifications in 10 groups

Storage

Specification	Value
Storage drives installed	No
Number of storage drives supported	3
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive interface	M.2, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5"

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® D
Processor frequency	2 GHz
Processor boost frequency	3 GHz
Processor cores	12
Processor threads	24
Processor cache	16.6 MB
Number of processors supported	1

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR4
Memory clock speed	2666 MHz
Maximum RAM supported	256 GB
ECC	Yes
Memory form factor	RDIMM
Memory slots	8

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000,10000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	8
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	4
Fiber optic connector	SFP+
PCI Express x8 (Gen 3.x) slots	1

Design

Specification	Value
Chassis type	Rack (1U)
Cooling type	Active
Product colour	Black, Silver
Number of fans	3 fan(s)
Built-in display	Yes
Display type	LCD

Performance

Specification	Value
Type	NAS

Power

Specification	Value
Power supply unit (PSU) capacity	300 W
Redundant power supply (RPS) support	Yes
AC input voltage	90 - 264 V

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Power cables quantity	1
Rack mount kit	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	84714100
