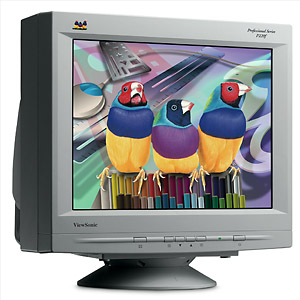

Viewsonic 22IN 27MM 1600X1200 97KHZ

Viewsonic 22IN 27MM 1600X1200 97KHZ

Model 22IN 27MM 1600X1200 97KHZPart no. P220F

25 specifications

Display55.9 cm (22")
Resolution2048 x 1536 pixels
Weight31 kg
Video inBandwidth - 266MHz (typical)
Power consumption (typical)125 W
Operating relative humidity (H-H)5 - 95%

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 2048 x 1536 pixels
Weight: 31 kg
Video in: Bandwidth - 266MHz (typical)
Power consumption (typical): 125 W
Operating relative humidity (H-H): 5 - 95%

Brand: Viewsonic
Category: Monitors CRT
Model: 22IN 27MM 1600X1200 97KHZ
Part number: P220F
Also known as: Viewsonic 22IN 27MM 1600X1200 97KHZ monitor CRT 2048 x 1536 pixels 55.9 cm (22")

Specifications

25 specifications in 8 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Type	22"(20.0" viewable) 90° deflection
Display resolution	2048 x 1536 pixels
Viewable size, vertical	30 cm
Viewable size, horizontal	40 cm
Vertical scan range	50 - 160 Hz
Horizontal scan range	30 - 110 kHz
Maximum resolution	2048 x 1536 pixels
Pixel pitch	0.24
Surface treatment	TM˜38.4%, Sputter-coating, Anti-Reflection and Anti-Static

Features

Specification	Value
Audio system	No
Video in	Bandwidth - 266MHz (typical)
Certification	TCO'03, TÜV/GS, TÜV/ERGO, ISO9241-3, ISO9241-7, ISO9241-8, Energy 2000, MPR-II, CE, CB, FCC-B, UL, CSA, DHHS, DOC-B, NEMKO, DEMKO, SEMKO, FIMKO, B-Mark, PCT, SASO, CCIB, C-Tick, S-Mark, NOM, VCCI, IRAM, ICE5003, CCEE, EMC, EMI-B
Mounting interface	Plug & Play

Ports & interfaces

Specification	Value
I/O ports	Signal - High-density 15 pin mini D-sub Power - 3-pin plug (IEC 320)

Power

Specification	Value
Power management	Energy Star, VESA DPMS, TCO'03 Energy 2000
Power consumption (typical)	125 W
Power source	AC 100-240V, 50/60 Hz (auto switch)

Management features

Specification	Value
User controls	Basic: Power ON/OFF, 1, DOWN, UP, 2, Zoom Hotkey. OnView functions.

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	500 x 511.5 x 505 mm
Weight	31 kg

System requirements

Specification	Value
Compatible products	PC compatible from VGA up to 2048 x 1536. Power Mac compatible from 640 x 480 to 2048 x 1536. Other - Most workstations
Mac compatibility	Yes
