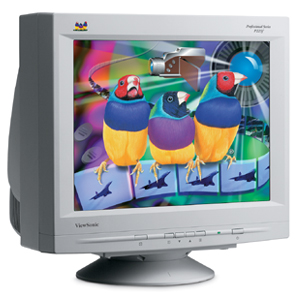

22IN 24MM 2048X1536 127KHZ
Model 22IN 24MM 2048X1536 127KHZPart no. P225F
24 specifications
- Display55.9 cm (22")
- Resolution2048 x 1536 pixels
- Audio systemNo, N
- Power consumption (typical)160 W
- Operating relative humidity (H-H)5 - 95%
- Dimensions (WxDxH)500 x 512 x 505 mm
Overview
- Display
- 55.9 cm (22")
- Resolution
- 2048 x 1536 pixels
- Audio system
- No, N
- Power consumption (typical)
- 160 W
- Operating relative humidity (H-H)
- 5 - 95%
- Dimensions (WxDxH)
- 500 x 512 x 505 mm
- Brand
- Viewsonic
- Category
- Monitors CRT
- Model
- 22IN 24MM 2048X1536 127KHZ
- Part number
- P225F
- Also known as
- Viewsonic 22IN 24MM 2048X1536 127KHZ monitor CRT 2048 x 1536 pixels 55.9 cm (22")
Specifications
24 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Type | 22" (20.0" diagonal viewable area) 90° deflection |
| Display resolution | 2048 x 1536 pixels |
| Viewable size, vertical | 30 cm |
| Viewable size, horizontal | 40 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 127 kHz |
| Maximum resolution | 2048 x 1536 pixels |
| Pixel pitch | 0.24 |
| Surface treatment | Tint (TM=39.8%), antistatic/antireflection |
Features
| Specification | Value |
|---|---|
| Audio system | No, N |
| Video in | Bandwidth 340MHz (typical) |
| Certification | TCO '03, TÜV/GS, TÜV/ERGO, CE, ISO9241-3, ISO9241-7, ISO9241-8, Energy 2000, ENERGY STAR, MPR-II, CB, UL, FCC-B, DHHS, PSB, VCCI, C-Tick, NEMKO, SEMKO, DEMKO, FIMKO, CSA, BSMI, NOM, PCBC, GOST-R, SASO, ICES003, IRAM, CCIB, CCEE, EMI-B, PC '99, PFC |
| Mounting interface | Plug & Play |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Signal - 15-pin mini D-sub, BNC x 5 [RGBHV] Power - 3-pin plug (IEC320) |
Power
| Specification | Value |
|---|---|
| Power management | Energy Star, VESA DPMS, TCO '03 and Energy 2000 standards |
| Power consumption (typical) | 160 W |
| Power source | AC 90-260 V, 50-60(+/-2)Hz |
Management features
| Specification | Value |
|---|---|
| User controls | Basic: Power on/off, Menu, up, down, select, Zoom Hotkey. OnView: Contrast, brightness, H/V-position, H/V-size, zoom, pincushion, pin-balance, trapezoid, parallelogram, rotation, top/bottom hooking, linearity centre, linearity edge, H-moiré, H/V-conver-gence, H/V focus, corner purity, degauss, ViewM |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 500 x 512 x 505 mm |
System requirements
| Specification | Value |
|---|---|
| Compatible products | PC and Mac compatible, Other - Most workstations |
| Mac compatibility | Yes |
