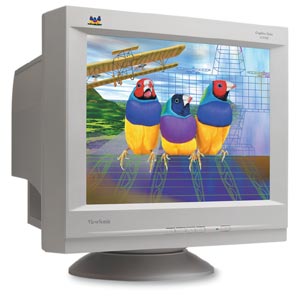

21IN 25MM 1600X1200 87HZ
Model 21IN 25MM 1600X1200 87HZPart no. G220FEAN 766907585612
22 specifications
- Display53.3 cm (21")
- Resolution1600 x 1200 pixels
- Weight27 kg
- Mounting interfacePlug & Play
- Power consumption (typical)115 W
- Operating relative humidity (H-H)5 - 95%
Overview
- Display
- 53.3 cm (21")
- Resolution
- 1600 x 1200 pixels
- Weight
- 27 kg
- Mounting interface
- Plug & Play
- Power consumption (typical)
- 115 W
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Viewsonic
- Category
- Monitors CRT
- Model
- 21IN 25MM 1600X1200 87HZ
- Part number
- G220F
- EAN / UPC
- 766907585612
- Also known as
- Viewsonic 21IN 25MM 1600X1200 87HZ monitor CRT 1600 x 1200 pixels 53.3 cm (21")
Specifications
22 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 53.3 cm (21") |
| Type | 21" (20.0" viewable) 90° deflection |
| Display resolution | 1600 x 1200 pixels |
| Viewable size, vertical | 30 cm |
| Viewable size, horizontal | 40 cm |
| Vertical scan range | 50 - 180 Hz |
| Horizontal scan range | 30 - 110 kHz |
| Pixel pitch | 0.25 |
| Surface treatment | Tint (TM=50%), ARAG screen treatment |
Features
| Specification | Value |
|---|---|
| Audio system | No |
| Certification | TCO'99, TMV/GS, TMV-ERGO, CE, ISO9241-3, ISO9241-7, ISO9241-8, Energy 2000, MPR-II, CE, CB, UL, FCC-B, DHHS, VCCI, C-TICK, NOM, SASO, CSA, DOC-B, NEMKO, DEMKO, SEMKO, FIMKO, B-Mark, PCT, CCIB, S-Mark, IRAM, ICE5003, CCEE, EMC, EMI-B |
| Mounting interface | Plug & Play |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Signal - 15-pin mini D-Sub (attached) Power - 3-pin plug (IEC 320) |
Power
| Specification | Value |
|---|---|
| Power management | Meets ENERGY STAR, VESA DPMS, TCO '99 and Energy 2000 standards |
| Power consumption (typical) | 115 W |
| Power source | AC 90-264V, 50/60 Hz (auto switch) |
Management features
| Specification | Value |
|---|---|
| User controls | Basic - Power ON/OFF, 1, down, up, 2. OnView - Contrast, brightness, H/V-position, H/V-size, pincushion, pinbalance, trapazoid, parallelogram, tilt, top/bottom hooking, degauss, moir, language, ViewMatch colour, H/V convergence, ViewMeter, OSD position, data recall, zoom |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 500 x 488 x 508 mm |
| Weight | 27 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible products | PC und Mac compatible |
| Mac compatibility | Yes |
