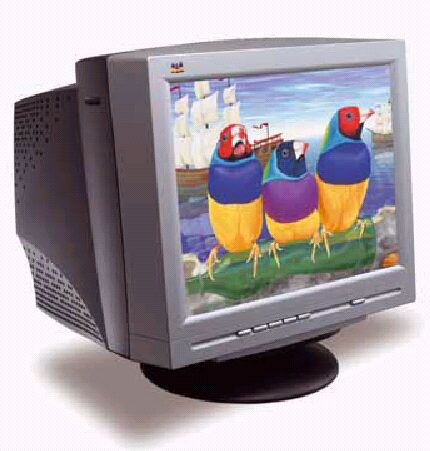

19IN 25MM 1280X1024 88HZ
Model 19IN 25MM 1280X1024 88HZPart no. E92F+SBEAN 766907984811
25 specifications
- Display48.3 cm (19")
- Resolution2048 x 1536 pixels
- Weight21.9 kg
- Video inBandwidth -240MHz
- Power managementTCO’03, ENERGY STAR
- Operating relative humidity (H-H)5 - 95%
Overview
- Display
- 48.3 cm (19")
- Resolution
- 2048 x 1536 pixels
- Weight
- 21.9 kg
- Video in
- Bandwidth -240MHz
- Power management
- TCO’03, ENERGY STAR
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Viewsonic
- Category
- Monitors CRT
- Model
- 19IN 25MM 1280X1024 88HZ
- Part number
- E92F+SB
- EAN / UPC
- 766907984811
- Also known as
- Viewsonic 19IN 25MM 1280X1024 88HZ monitor CRT 2048 x 1536 pixels 48.3 cm (19")
Specifications
25 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | 19" (18.0" viewable), 90° deflection, PerfectFlat |
| Display resolution | 2048 x 1536 pixels |
| Viewable size, vertical | 27 cm |
| Viewable size, horizontal | 36 cm |
| Vertical scan range | 50 - 180 Hz |
| Horizontal scan range | 30 - 97 kHz |
| Pixel pitch | 0.21 x 0.25 mm |
| Surface treatment | Tint (TM = 53%), Anti-Reflection and Anti-Static |
Features
| Specification | Value |
|---|---|
| Audio system | No |
| Video in | Bandwidth -240MHz |
| Certification | TCO ’03, TÜV/GS, TÜV/ERGO, CE, ISO 9241-3, ISO 9241-7, ISO 9241-8, ENERGY STAR, MPR-II, CB, UL, FCC-B, CSA, NOM, BSMI, VCCI, PSB, C-TICK, SASO, CCIB, NEMKO, SEMKO, DEMKO, FIMKO, Gost-R, PCBC, PC ’2001 |
| Mounting interface | Plug & Play |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Signal - 15-pin mini D-sub (high density) Power - 3-pin plug (IEC320) |
Power
| Specification | Value |
|---|---|
| Power management | TCO’03, ENERGY STAR |
| Power consumption (typical) | 90 W |
| Power requirements | AC 90-264VAC, 50–60Hz (+/-2)Hz |
| Monitor maximum power consumption | 110 W |
Management features
| Specification | Value |
|---|---|
| User controls | Basic - Power on/off, 1, Down, Up, 2, UltraBrite. OnView Contrast, Brightness, Degauss, Horizontal Size, Horizontal Position, Vertical Size, Vertical Position, Pincushion, Pincushion Balance, Trapezoid, Parallelogram, Tilt, CORNER, Horizontal Moire, Vertical Moire, ViewMatch (9300K, 6500K, 5000K, Us |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 449 x 453.4 x 451 mm |
| Weight | 21.9 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible products | PC - IBM compatible (from VGA up to 1792 x 1344). Mac - Power Mac (G3/G4 from 640 x 480 to 1152 x864) |
| Mac compatibility | Yes |
