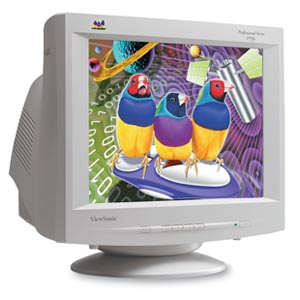

17IN 25MM 1600X1200 97KHZ
Model 17IN 25MM 1600X1200 97KHZPart no. P75F+
25 specifications
- Display43.2 cm (17")
- Resolution1600 x 1200 pixels
- Weight18 kg
- Video inBandwidth - 205MHz
- Power managementTCO’95/’99, ENERGY STAR
- Operating relative humidity (H-H)5 - 95%
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1600 x 1200 pixels
- Weight
- 18 kg
- Video in
- Bandwidth - 205MHz
- Power management
- TCO’95/’99, ENERGY STAR
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Viewsonic
- Category
- Monitors CRT
- Model
- 17IN 25MM 1600X1200 97KHZ
- Part number
- P75F+
- Also known as
- Viewsonic 17IN 25MM 1600X1200 97KHZ monitor CRT 1600 x 1200 pixels 43.2 cm (17")
Specifications
25 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | 17" (16.0" viewable), 90º deflection, PerfectFlat |
| Display resolution | 1600 x 1200 pixels |
| Viewable size, vertical | 25 cm |
| Viewable size, horizontal | 32.6 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 97 kHz |
| Maximum resolution | 1792 x 1344 pixels |
| Pixel pitch | 0.25 |
| Surface treatment | Tint: TM~39.8%, anti-reflection, anti-static coating |
Features
| Specification | Value |
|---|---|
| Audio system | No |
| Video in | Bandwidth - 205MHz |
| Certification | UL/cUL, EPA ENERGY STAR, FCC-B, ICES003, DHHS, NOM,TUV-S, CE, CB, TUV/GS, TUV/Ergo, MPR ll, TCO’95 (P75f+B), TCO’99, PSB, BSMI, C-TICK, GOST, Nordic, PCBC, VCCI, CCEE |
| Mounting interface | Plug & Play+ |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Signal - 15-pin mini D-sub (high density) Power - 3-pin plug (ICE320) |
Power
| Specification | Value |
|---|---|
| Power management | TCO’95/’99, ENERGY STAR |
| Power source | AC 90–240VAC, 50–60Hz (+/-2)Hz |
| Monitor typical power consumption | 95 W |
| Monitor maximum power consumption | 130 W |
Management features
| Specification | Value |
|---|---|
| User controls | Basic: Power, 1, down, up, 2, UltraBrite toggle. On View: Contrast, brightness, H. size, H. position, V. size, V. position, pincushion, pin balance, trapezoid, parallelogram, rotation, degauss, moiré reduction, H. convergence, V. convergence, ViewMeter, language, ViewMatch color, data recall and zoo |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 18 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible products | PC and Mac compatible |
| Mac compatibility | Yes |
