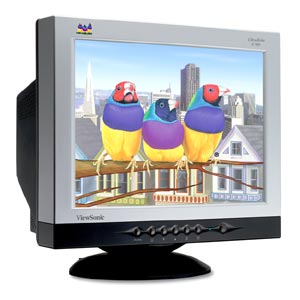

17IN 25MM 1280X1024 70KHZ
Model 17IN 25MM 1280X1024 70KHZPart no. E70F+SBEAN 766907218534
23 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight14.7 kg
- Mounting interfacePlug & Play
- Power managementTCO’99, Energy 2000, VESA DPMS
- Operating relative humidity (H-H)5 - 95%
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 14.7 kg
- Mounting interface
- Plug & Play
- Power management
- TCO’99, Energy 2000, VESA DPMS
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Viewsonic
- Category
- Monitors CRT
- Model
- 17IN 25MM 1280X1024 70KHZ
- Part number
- E70F+SB
- EAN / UPC
- 766907218534, 766907019834, 766907091557, 766907622836 +1 more
- Also known as
- Viewsonic 17IN 25MM 1280X1024 70KHZ monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
23 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | 17" (16.0" viewable), 90° deflection |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 24.3 cm |
| Viewable size, horizontal | 32.5 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 70 kHz |
| Pixel pitch | 0.21 x 0.25 mm |
| Surface treatment | Tint (TM=50%), ARAG screen treatment |
Features
| Specification | Value |
|---|---|
| Audio system | No |
| Video in | RGB analogue (0.7V/1.0 Vp-p, 75 ohms) |
| Certification | TCO ’99, TÜV/GS, TÜV/ERGO, CE, ISO 9241-3, ISO 9241-7, ISO 9241-8, ENERGY STAR, MPR-II, CB, UL, FCC-B, CSA, NOM, BSMI, VCCI, PSB, C-TICK, SASO, CCIB, NEMKO, SEMKO, DEMKO, FIMKO, Gost-R, PCBC, PC ’2001 |
| Mounting interface | Plug & Play |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Signal- 15-pin mini D-sub, attached cable Power - 3-pin plug (IEC320) |
Power
| Specification | Value |
|---|---|
| Power management | TCO’99, Energy 2000, VESA DPMS |
| Monitor typical power consumption | 75 W |
Management features
| Specification | Value |
|---|---|
| User controls | Basic - Power on/off, Menu, Down, Up, Select, UltraBrite toggle, One Touch Auto Adjust. OnView Contrast, Brightness, H/V Size, H/V Position, Pincushion, Pin balance, Trapezoid, Parallelogram, Tilt, Moiré, Degauss, ViewMatch colour adjust (9300, 6500, 5000, user), Information, Language, OSD Position, |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 400 x 425 x 403 mm |
| Weight | 14.7 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible products | PC IBM compatible (from VGA up to 1280 x 1024). Mac - PowerMac (G3/G4 up to 1024 x 768) |
| Mac compatibility | Yes |
