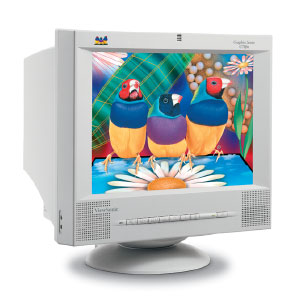

Viewsonic 17IN 25MM 1280X 1024 70HZ

Viewsonic 17IN 25MM 1280X 1024 70HZ

Model 17IN 25MM 1280X 1024 70HZPart no. G70FMEAN 766907469127

23 specifications

Display43.2 cm (17")
Resolution1280 x 1024 pixels
Weight16.7 kg
Mounting interfacePlug & Play
Power consumption (typical)90 W
Operating relative humidity (H-H)5 - 95%

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Weight: 16.7 kg
Mounting interface: Plug & Play
Power consumption (typical): 90 W
Operating relative humidity (H-H): 5 - 95%

Brand: Viewsonic
Category: Monitors CRT
Model: 17IN 25MM 1280X 1024 70HZ
Part number: G70FM
EAN / UPC: 766907469127
Also known as: Viewsonic 17IN 25MM 1280X 1024 70HZ monitor CRT 1280 x 1024 pixels 43.2 cm (17")

Specifications

23 specifications in 8 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Type	17" (16.0" viewable), 90° deflection
Display resolution	1280 x 1024 pixels
Viewable size, vertical	23 cm
Viewable size, horizontal	31 cm
Vertical scan range	50 - 150 Hz
Horizontal scan range	30 - 70 kHz
Pixel pitch	0.25 x 0.21 mm
Surface treatment	Tint (TM = 50%), ARAG screen treatment

Features

Specification	Value
Audio system	3W (x2) @ 1KHz, THD100-20KHz, Bezel-integrated high-fidelity speakers and microphone
Certification	TCO '99, Tܖ/GS, Tܖ/Ergo, CE, ISO9241-3, ISO9241-7, ISO9241-8, Nordics, GOST-R, PCBC, Energy2000, ENERGY STAR, MPR-II, CB, UL, FCC-B, CSA, ICES-003, NOM, Tܖ-S, SASO
Mounting interface	Plug & Play

Ports & interfaces

Specification	Value
I/O ports	Video In 15-pin mini D-Sub (attached) Audio In 3.5mm pin mini jack (stereo) Mic In/Out 3.5mm pin mini jack (mono/auxillary) Headphone Out 3.5mm pin mini jack (stereo) Power 3-pin plug (IEC22)

Power

Specification	Value
Power management	ENERGY STAR, VESA DPMS, TCO '99 and Energy 2000
Power consumption (typical)	90 W
Power source	AC 100-240V, 50-60Hz (auto switch)

Management features

Specification	Value
User controls	Basic - Power on/off, Menu, down, up, Select, Mute, Volume. OSD Contrast, Brighness, Zoom, H/V Position, H/V Size, Pincushion, Pin-Balance, Trapezoid, Rotation, H/V Moire, Degauss, ViewMatch Colour, ViewMeter, OSD Language, OSD Position, OSD Lock, Recall

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	412 x 412 x 435 mm
Weight	16.7 kg

System requirements

Specification	Value
Compatible products	PC and Mac compatible
Mac compatibility	Yes
