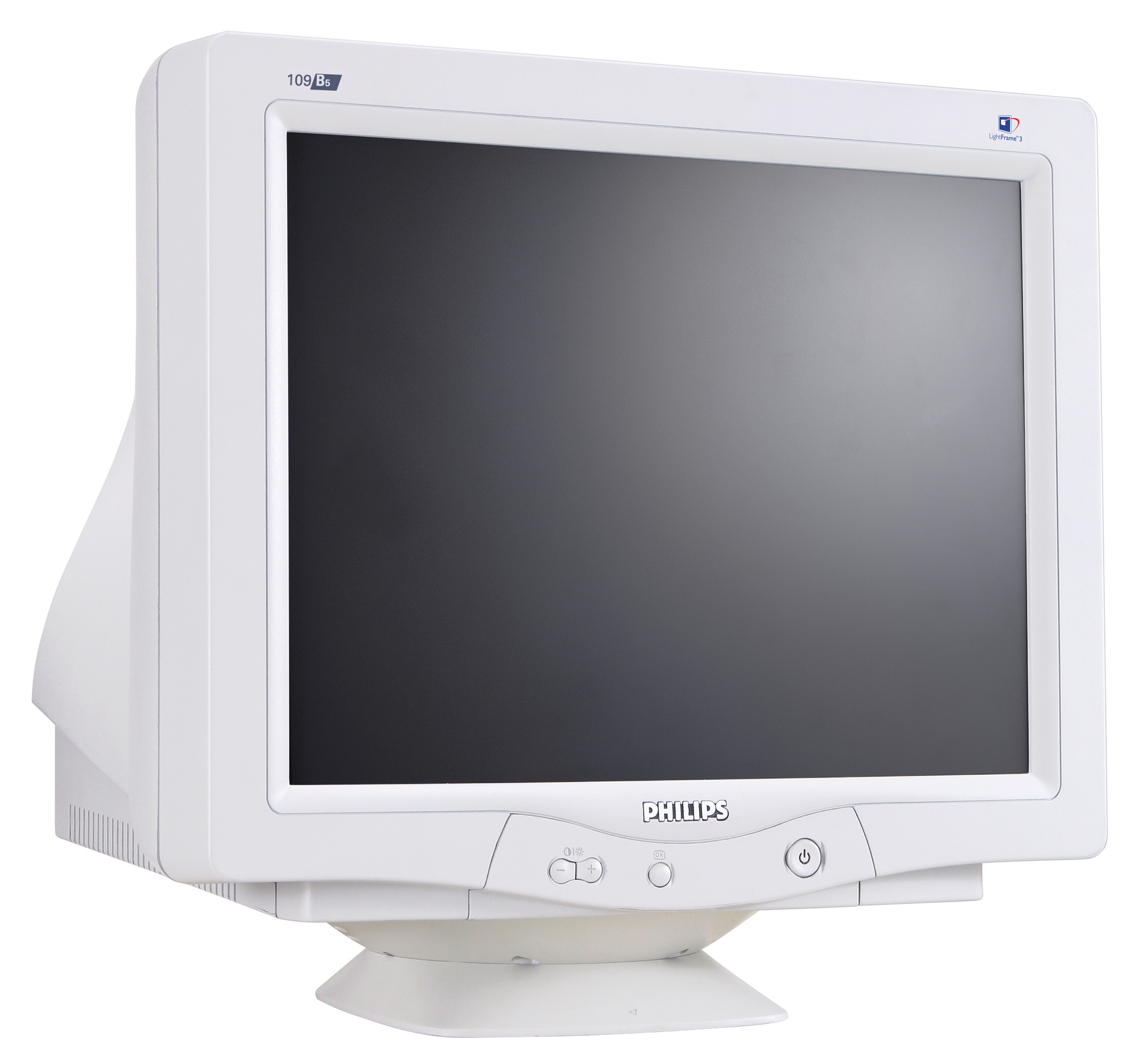

Philips 19'' real flat UXGA CRT monitor
Model 19'' real flat UXGA CRT monitorPart no. 109B50/60EAN 8710895787383
22 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Weight20 kg
- CertificationMPR-II, TCO ‘03
- I/O portsVideo 15-pin D-Shell
- Power consumption (off)1 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Weight
- 20 kg
- Certification
- MPR-II, TCO ‘03
- I/O ports
- Video 15-pin D-Shell
- Power consumption (off)
- 1 W
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 19'' real flat UXGA CRT monitor
- Part number
- 109B50/60
- EAN / UPC
- 8710895787383
- Also known as
- Philips 19'' real flat UXGA CRT monitor monitor CRT 1280 x 1024 pixels 48.3 cm (19")
Specifications
22 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | CRT Shadow mask, Real Flat, High Contrast,Anti Glare, Anti Static, Anti reflection,Light Transmission 45% |
| Display resolution | 1280 x 1024 pixels |
| Viewable size diagonal | 46 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 97 kHz |
| Maximum resolution | 1920 x 1440 pixels |
| Pixel pitch | 0.25 x 0.21 mm |
| Display | CRT |
| Viewing angle | 90° |
Features
| Specification | Value |
|---|---|
| Certification | MPR-II, TCO ‘03 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Video 15-pin D-Shell |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 1 W |
| Monitor typical power consumption | 75 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 449 mm |
| Dimensions (W x D x H) with stand | 440 x 449 x 433 mm |
| Height | 383 mm |
| Weight | 20 kg |
| Width | 440 mm |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 95/98/Me & 2000/NT/XP |
