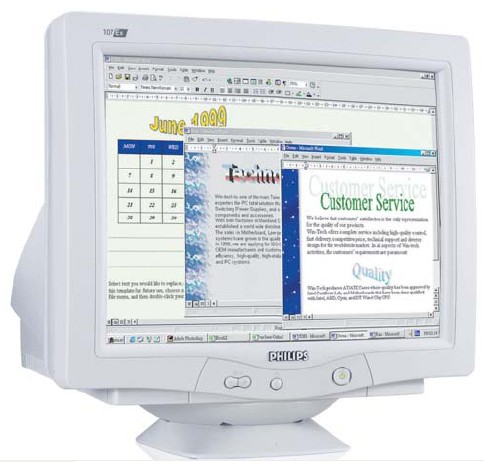

17" Digitalized CRT Monitor
Model 17" Digitalized CRT MonitorPart no. 107E60
21 specifications
- Display43.2 cm (17")
- Weight13.4 kg
- Swivel angle range90 - 90°
- I/O portsD-Sub
- Power managementNUTEK, E2000
- Storage temperature (T-T)-25 - 65 °C
Overview
- Display
- 43.2 cm (17")
- Weight
- 13.4 kg
- Swivel angle range
- 90 - 90°
- I/O ports
- D-Sub
- Power management
- NUTEK, E2000
- Storage temperature (T-T)
- -25 - 65 °C
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 17" Digitalized CRT Monitor
- Part number
- 107E60
- Also known as
- Philips 17" Digitalized CRT Monitor monitor CRT 43.2 cm (17")
Specifications
21 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 71 kHz |
| Maximum resolution | 1280 x 1024 pixels |
| Pixel pitch | 0.27 |
| Display | FST |
| Recommended resolution | 1024 x 768@ 85 Hz |
Features
| Specification | Value |
|---|---|
| Swivel angle range | 90 - 90° |
| Plug and Play | Yes |
| Tilt angle range | -5 - 13° |
| Certification | CE Mark, FCC-B, UL, CSA, NUTEK, SEMKO, TÜV/GS, TÜV Ergo, FDA, EZU, GOST, MEEI, PCBC, BSMI, TCO'03, E2000 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | D-Sub |
Power
| Specification | Value |
|---|---|
| Power management | NUTEK, E2000 |
| Power consumption (typical) | 64 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 397 x 419 x 383 mm |
| Weight | 13.4 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP |
| Mac compatibility | No |
