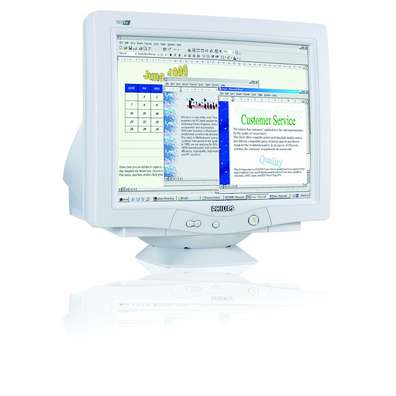

17" CRT monitor
Model 17" CRT monitorPart no. 107S61/00EAN 8710895853378
22 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- TypeFlat Square Tube
- Weight13.4 kg
- Swivel angle range90 - 90°
- Power consumption (standby)1 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Type
- Flat Square Tube
- Weight
- 13.4 kg
- Swivel angle range
- 90 - 90°
- Power consumption (standby)
- 1 W
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 17" CRT monitor
- Part numbers
- 107S61/00, 107E71, 107E71/05, 107E76/05, 107E61/00
- EAN / UPC
- 8710895853378, 8710895865777
- Also known as
- Philips 17" CRT monitor monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
22 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | Flat Square Tube |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 23 cm |
| Viewable size, horizontal | 30.6 cm |
| Viewable size diagonal | 41 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 71 kHz |
| Pixel pitch | 0.27 |
| Recommended resolution | 1024 x 768 @ 85 Hz |
Features
| Specification | Value |
|---|---|
| Swivel angle range | 90 - 90° |
| Plug and Play | Yes |
| Tilt angle range | -5 - 13° |
| Certification | CE Mark, FCC-B, UL, CSA, NUTEK, Energy Star, SEMKO, TÜV/GS, TÜV Ergo, FDA, EZU, GOST, MEEI, PCBC, BSMI, E2000, MPR-II, low emission |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x D-sub video cable; 1 x power cord; 1 x Sync input impedance: 4.7k ohm; 1 x Video Input Impedance: 75 ohm; 1 x Video input signal levels: 0.7 Vpp; 1 x Video sync input signal: Separate sync; 1 x Video sync polarities: Positive and Negative; 1 x AC power in. |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 1 W |
| Monitor typical power consumption | 64 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 397 x 419 x 383 mm |
| Weight | 13.4 kg |
Technical details
| Specification | Value |
|---|---|
| Video Dot Rate | 120 MHz |
