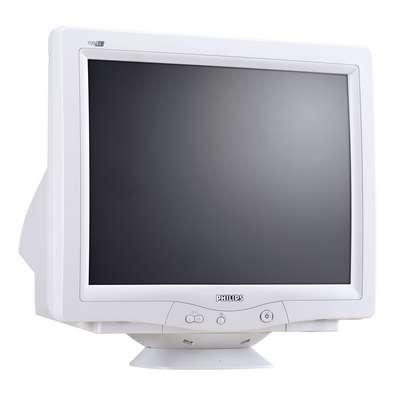

Philips 109E50 19" FST .25 92kHz
Model 109E50 19" FST .25 92kHzPart no. 109E50
18 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- TypeDisplay / CRT Shadow mask
- Weight17.8 kg
- Video inRGB
- Monitor maximum power consumption65 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Type
- Display / CRT Shadow mask
- Weight
- 17.8 kg
- Video in
- RGB
- Monitor maximum power consumption
- 65 W
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 109E50 19" FST .25 92kHz
- Part number
- 109E50
- Also known as
- Philips 109E50 19" FST .25 92kHz monitor CRT 1280 x 1024 pixels 48.3 cm (19")
Specifications
18 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | Display / CRT Shadow mask |
| Display resolution | 1280 x 1024 pixels |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 92 kHz |
| Maximum resolution | 1920 x 1440 pixels |
| Display viewable area (HxV) | 360 x 270 mm |
| Pixel pitch | 0.25 x 0.21 mm |
Features
| Specification | Value |
|---|---|
| Video in | RGB |
| Certification | TCO '03, FCC Class B certified, CE, MPR II, CSA, UL, TUV GS, C-Tick, ISO 9241-3, BCIQ, DDC-2B, DHHS, EPA Energy Star, NUTEK, SEMKO |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x VGA - 15 pin HD D-Sub (HD-15) |
Power
| Specification | Value |
|---|---|
| Monitor maximum power consumption | 65 W |
Management features
| Specification | Value |
|---|---|
| User controls | Brightness, contrast, H/V moire, H/V position, H/V size, trapezoid, degauss, parallelogram, pincushion, pin balance, zoom |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 437 x 443 mm |
| Weight | 17.8 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible products | PC, Mac |
