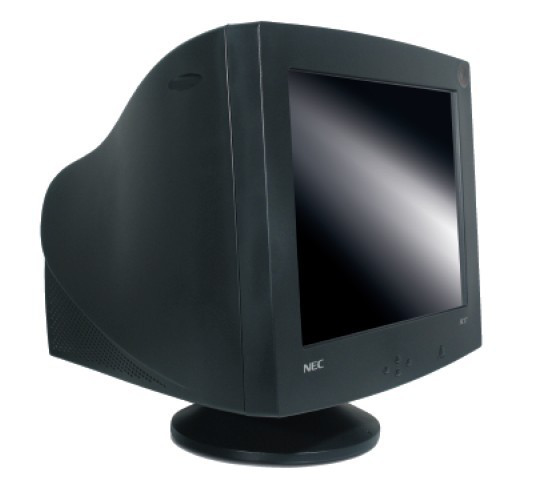

Flat CRT 17" Monitor
Model Flat CRT 17" MonitorPart no. NCM-1716-P0-B0
25 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- TypeCRT
- Cable length1.5 m
- I/O portsMini D-sub (15-pin)
- Power consumption (typical)75 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Type
- CRT
- Cable length
- 1.5 m
- I/O ports
- Mini D-sub (15-pin)
- Power consumption (typical)
- 75 W
- Brand
- NEC
- Category
- Monitors CRT
- Model
- Flat CRT 17" Monitor
- Part number
- NCM-1716-P0-B0
- Also known as
- NEC Flat CRT 17" Monitor monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
25 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | CRT |
| Display resolution | 1280 x 1024 pixels |
| Horizontal scan range | 30 - 70 kHz |
| Display viewable area (HxV) | 310 x 232 mm |
| Pixel pitch | 0.25 |
| Display | Flat Screen |
| Display resolution at frequency | 1024 x 768@60/85Hz; 800 x 600@60/100Hz; 640 x 480@60/85Hz; 720 x 400@70Hz |
Features
| Specification | Value |
|---|---|
| Ergonomics | MPR-II,TCO 99, ISO 13406-2, Energy Star |
| Cable length | 1.5 m |
| Certification | MPR-II, TCO'99, EPA, DPMS, VESA DDC 1/2B |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Mini D-sub (15-pin) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 75 W |
| Power consumption (standby) | 5 W |
| Power requirements | 100-240V |
Management features
| Specification | Value |
|---|---|
| User controls | OSD |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 35 - 80% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 410 mm |
| Height | 420 mm |
| Width | 410 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 550 x 515 x 465 mm |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | FCC-B, DOC-B, EN55022-B, EN61000-3-2,-3-3 EN55024 (IEC6100-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4,11) |
| Safety | UL 1950 (UL), CSA C22.2 No.950, (C-UL) CE Marketing,TUV-GS (EN60950) |
