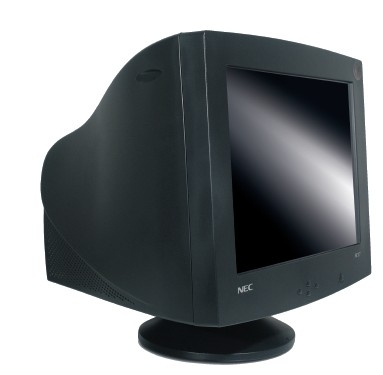

FC17 - Flat CRT 17" Monitor
Model FC17 - Flat CRT 17" MonitorPart no. NCM-1716-P2-B0
25 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- TypeFlat CRT
- Plug and PlayYes
- I/O ports1x 15-pin D-sub
- Power managementEPA, TCO'99, Energy Star
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Type
- Flat CRT
- Plug and Play
- Yes
- I/O ports
- 1x 15-pin D-sub
- Power management
- EPA, TCO'99, Energy Star
- Brand
- NEC
- Category
- Monitors CRT
- Model
- FC17 - Flat CRT 17" Monitor
- Part number
- NCM-1716-P2-B0
- Also known as
- NEC FC17 - Flat CRT 17" Monitor monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
25 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | Flat CRT |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 31 cm |
| Viewable size, horizontal | 23.2 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 70 kHz |
| Pixel pitch | 0.25 |
| Display resolution at frequency | 1024x768 @ 60Hz/85Hz; 800x600 @ 60Hz/100Hz; 640x480 @ 60Hz/85Hz; 720x400 @ 70Hz |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | MPR-II, TCO'99 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1x 15-pin D-sub |
Power
| Specification | Value |
|---|---|
| Power management | EPA, TCO'99, Energy Star |
| Power consumption (typical) | 75 W |
| Power consumption (standby) | 5 W |
| Power requirements | 100-240V; 50/60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 35 - 80% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 410 mm |
| Height | 420 mm |
| Width | 410 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 550 x 515 x 465 mm |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | FCC-B, DOC-B, EN55022-B, EN61000-3-2/-3-3 EN55024 (IEC6100-4-2,-4-3,-4-4,-4-5, -4-6,-4-8,-4,11) |
| Safety | UL 1950 (UL), CSA C22.2 No.950, (C-UL) CE Marketing, TUV-GS (EN60950) |
