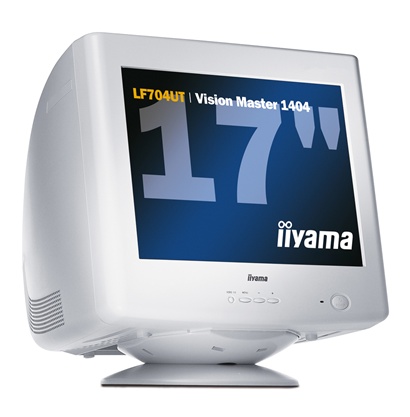

Vision Master 1404 17" FST .25mm 70kHz
Model Vision Master 1404 17" FST .25mm 70kHzPart no. LF704UT
18 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- TypeCRT
- Weight15.5 kg
- Plug and PlayYes
- Power consumption (typical)75 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Type
- CRT
- Weight
- 15.5 kg
- Plug and Play
- Yes
- Power consumption (typical)
- 75 W
- Brand
- iiyama
- Category
- Monitors CRT
- Model
- Vision Master 1404 17" FST .25mm 70kHz
- Part number
- LF704UT
- Also known as
- iiyama Vision Master 1404 17" FST .25mm 70kHz monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
18 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | CRT |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 24.3 cm |
| Viewable size, horizontal | 32.4 cm |
| Viewable size diagonal | 40.5 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 70 kHz |
| Pixel pitch | 0.22 |
| Brightness | 270 cd/m2 |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TCO 99 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x VGA - 15 pin HD D-Sub (HD-15) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 75 W |
| Power requirements | AC 90-132 V / 198-264 V, 50/60 Hz |
Management features
| Specification | Value |
|---|---|
| User controls | Brightness, contrast, H/V moire, H/V position, H/V size, rotation, trapezoid, degauss, colour temperature, parallelogram, pincushion, zoom |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 408 x 420 x 430 mm |
| Weight | 15.5 kg |
