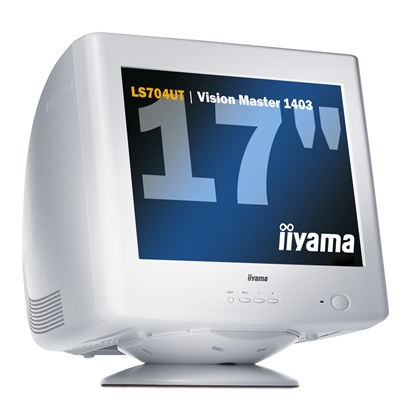

LS704U 17" CRT .27 70kHz
Model LS704U 17" CRT .27 70kHzPart no. LS704U
20 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- TypeCRT FST
- Weight14.8 kg
- Plug and PlayYes
- I/O portsD-Sub mini 15 pin
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Type
- CRT FST
- Weight
- 14.8 kg
- Plug and Play
- Yes
- I/O ports
- D-Sub mini 15 pin
- Brand
- iiyama
- Category
- Monitors CRT
- Model
- LS704U 17" CRT .27 70kHz
- Part number
- LS704U
- Also known as
- iiyama LS704U 17" CRT .27 70kHz monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
20 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | CRT FST |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 24.3 cm |
| Viewable size, horizontal | 32.4 cm |
| Viewable size diagonal | 40.6 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 70 kHz |
| Pixel pitch | 0.270 |
| Brightness | 95 cd/m² |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TCO 99 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | D-Sub mini 15 pin |
Power
| Specification | Value |
|---|---|
| Power management | VESA DPMS, ENERGY STAR |
| Power consumption (typical) | 75 W |
| Power requirements | AC 90 - 132 V / 198 - 264 V, 50 / 60 Hz |
Management features
| Specification | Value |
|---|---|
| User controls | Contrast, brightness, horizontal and vertical size and position, trapezoid distortion, zoom, colour temperature, Pincushion distortions Pin-Balance, rotation, degauss, parallelogram, horizontal/vertical Moiré-Clear function, reset, OSD position |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 408 x 430 x 420 mm |
| Weight | 14.8 kg |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
