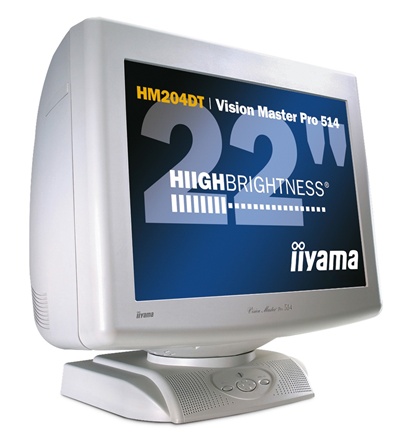

HM204DTA 22" CRT .24 140kHz
Model HM204DTA 22" CRT .24 140kHzPart no. HM204DTA
22 specifications
- Display55.9 cm (22")
- Resolution2048 x 1536 pixels
- TypeDiamondtron U2-CRT
- Weight29.5 kg
- Plug and PlayYes
- I/O ports2 x D-Sub mini 15 pin
Overview
- Display
- 55.9 cm (22")
- Resolution
- 2048 x 1536 pixels
- Type
- Diamondtron U2-CRT
- Weight
- 29.5 kg
- Plug and Play
- Yes
- I/O ports
- 2 x D-Sub mini 15 pin
- Brand
- iiyama
- Category
- Monitors CRT
- Model
- HM204DTA 22" CRT .24 140kHz
- Part number
- HM204DTA
- Also known as
- iiyama HM204DTA 22" CRT .24 140kHz monitor CRT 2048 x 1536 pixels 55.9 cm (22")
Specifications
22 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Type | Diamondtron U2-CRT |
| Display resolution | 2048 x 1536 pixels |
| Viewable size, vertical | 30.4 cm |
| Viewable size, horizontal | 40.5 cm |
| Viewable size diagonal | 50.8 cm |
| Vertical scan range | 50 - 200 Hz |
| Horizontal scan range | 30 - 142 kHz |
| Pixel pitch | 0.24 |
| Brightness | 95 cd/m² |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TCO 03 |
| Speakers and microphone | 2 x 1W Stereo |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 2 x D-Sub mini 15 pin |
Power
| Specification | Value |
|---|---|
| Power management | VESA DPMS, ENERGY STAR |
| Power consumption (typical) | 170 W |
| Power requirements | AC 90-132 / 198-264 V, 50/60 Hz |
Management features
| Specification | Value |
|---|---|
| User controls | sRGB, gamma correction, OPQ, contrast, volume, brightness, vertical positioning/size, horizontal positioning/size, trapezoid distortion, colour temperature, pincushion, reset, picture rotation, degauss, convergence(horizontal and vertical), parallelogram, horizontal Moiré-Clear-function, pin-balance |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 493 x 479 x 500 mm |
| Weight | 29.5 kg |
Certificates
| Specification | Value |
|---|---|
| Safety | TÜV GS EN(60950), UL60950, FCC Class B, CE (EN60950), DHHS, CAN/CSA-C22.2 No. 60950, PTB |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
