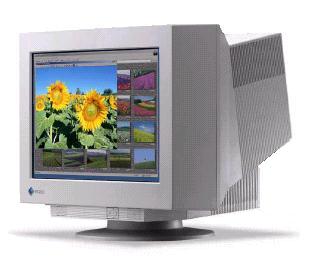

19IN 25MM 1280X1024 160HZ
Model 19IN 25MM 1280X1024 160HZPart no. T766
18 specifications
- Display48.3 cm (19")
- Resolution1920 x 1440 pixels
- Weight26.7 kg
- Plug and PlayYes
- Dimensions (WxDxH)452 x 478 x 455 mm
- Monitor max. video input bandwidth280 MHz
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1920 x 1440 pixels
- Weight
- 26.7 kg
- Plug and Play
- Yes
- Dimensions (WxDxH)
- 452 x 478 x 455 mm
- Monitor max. video input bandwidth
- 280 MHz
- Brand
- EIZO
- Category
- Monitors CRT
- Model
- 19IN 25MM 1280X1024 160HZ
- Part numbers
- T766, T766-K
- Also known as
- EIZO 19IN 25MM 1280X1024 160HZ monitor CRT 1920 x 1440 pixels 48.3 cm (19")
Specifications
18 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | Display / CRT conventional - desktop |
| Display resolution | 1920 x 1440 pixels |
| Viewable size, vertical | 27.1 cm |
| Viewable size, horizontal | 36.2 cm |
| Viewable size diagonal | 45.2 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 115 kHz |
| Display | Flat-faced aperture grill CRT |
| Surface treatment | Super ErgoCoat |
Features
| Specification | Value |
|---|---|
| Audio system | No |
| Plug and Play | Yes |
| Certification | TCO99, TUV ECO Circle 2000, TUV/GS, c-Tick, CE, CB, UL 1950, CSA C22.2 No.950, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA ENERGY STAR Program, Energy 2000 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | D-Sub 15-pin, 5 x BNC (switchable), USB 1.1: 1 x upstream, 4x downstream ports |
Management features
| Specification | Value |
|---|---|
| User controls | ScreenManager, ScreenManager Pro for USB, One Touch Auto Adjustment Function (Auto-Sizing) |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 452 x 478 x 455 mm |
| Weight | 26.7 kg |
Technical details
| Specification | Value |
|---|---|
| Monitor max. video input bandwidth | 280 MHz |
