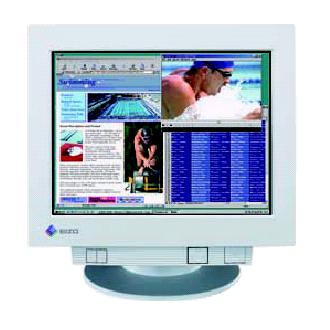

17IN 25MM 1152X900 101KHZ
Model 17IN 25MM 1152X900 101KHZPart no. T565
17 specifications
- Display43.2 cm (17")
- Resolution1600 x 1200 pixels
- Weight19.5 kg
- Dimensions (WxDxH)410 x 439 x 413 mm
- Monitor max. video input bandwidth200 MHz
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1600 x 1200 pixels
- Weight
- 19.5 kg
- Dimensions (WxDxH)
- 410 x 439 x 413 mm
- Monitor max. video input bandwidth
- 200 MHz
- Brand
- EIZO
- Category
- Monitors CRT
- Model
- 17IN 25MM 1152X900 101KHZ
- Part numbers
- T565, T565-K
- Also known as
- EIZO 17IN 25MM 1152X900 101KHZ monitor CRT 1600 x 1200 pixels 43.2 cm (17")
Specifications
17 specifications in 5 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | Display / CRT conventional - desktop |
| Display resolution | 1600 x 1200 pixels |
| Viewable size, vertical | 24.2 cm |
| Viewable size, horizontal | 34.3 cm |
| Viewable size diagonal | 40.3 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 96 kHz |
| Pixel pitch | 0.25 |
| Display | Flat aperture grill CRT |
| Surface treatment | Super ErgoCoat |
Features
| Specification | Value |
|---|---|
| Audio system | No |
| Certification | TCO99, TUV ECO Circle 2000, TUV/GS, c-Tick, CE, CB, UL 1950, CSA C22.2 No.950, FCC-B, Canadian ICES-003- B, TUV/S, VCCI-B, EPA ENERGY STAR Program |
Management features
| Specification | Value |
|---|---|
| User controls | ScreenManager, ScreenManager Pro for USB, One Touch Auto Adjustment Function (Auto-Sizing) |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 410 x 439 x 413 mm |
| Weight | 19.5 kg |
Technical details
| Specification | Value |
|---|---|
| Monitor max. video input bandwidth | 200 MHz |
