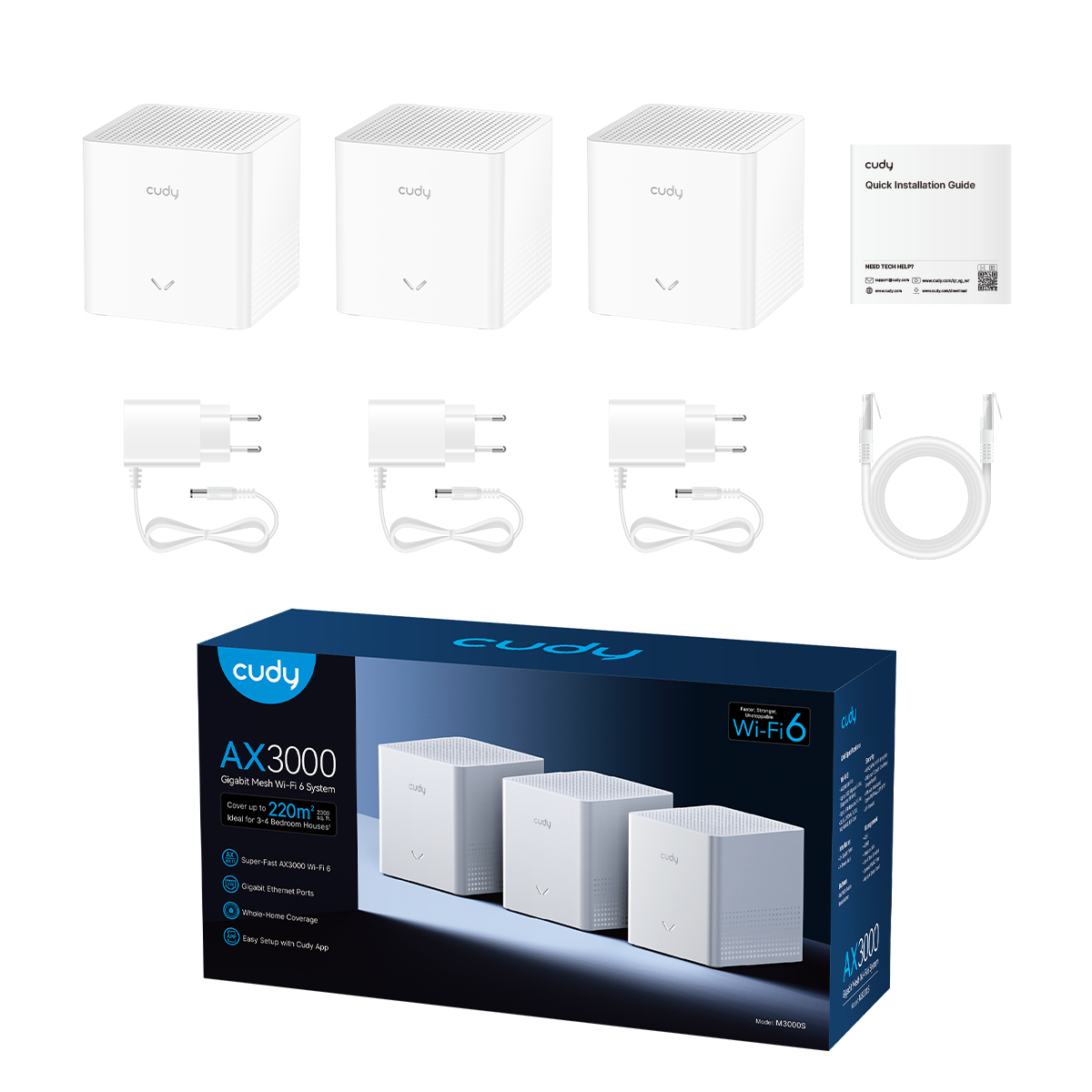

AX3000 Gigabit Mesh Wi-Fi 6 System, M3000S 1.0, 3-Pack
Model AX3000 Gigabit Mesh Wi-Fi 6 System, M3000S 1.0, 3-PackPart no. M3000S 3-PACKEAN 6971690795344
58 specifications
- Memory128 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh system
- Weight303.4 g
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Memory
- 128 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh system
- Weight
- 303.4 g
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- Cudy
- Category
- Mesh Wi-Fi System
- Model
- AX3000 Gigabit Mesh Wi-Fi 6 System, M3000S 1.0, 3-Pack
- Part number
- M3000S 3-PACK
- EAN / UPC
- 6971690795344
- Also known as
- Cudy AX3000 Gigabit Mesh Wi-Fi 6 System, M3000S 1.0, 3-Pack Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 2 Internal
Specifications
58 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| LED indicators | System |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Maximum coverage | 220 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Networking standards | IEEE 802.11ax |
| Security algorithms | WPA, WPA2, WPA3 |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Guest access | Yes |
| VPN support | WireGuard, OpenVPN, PPTP, L2TP, IPsec |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
| Processor frequency | 1.2 GHz |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Firewall security | SPI Firewall, DoS Protection, Block PING |
| DHCP client | Yes |
| Parental control | Yes |
| Parental control features | Content filter, Custom profiles, Pause the Internet, Off time |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Operating modes | Wi-Fi Router, Access Point, Range Extender, WISP, Client |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 85 mm |
| Height | 86.5 mm |
| Weight | 303.4 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 3 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 274 mm |
| Package depth | 90 mm |
| Package height | 143 mm |
