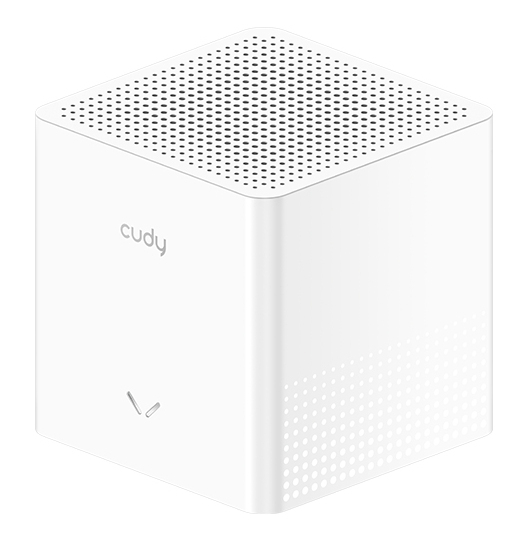

AC1200 Gigabit Mesh Wi-Fi System, M1300S 1.0, 1-Pack
Model AC1200 Gigabit Mesh Wi-Fi System, M1300S 1.0, 1-PackPart no. M1300S 1-PACKEAN 6971690795566
57 specifications
- Memory32 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeMesh system
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Built-in processorYes
Overview
- Memory
- 32 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mesh system
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Built-in processor
- Yes
- Brand
- Cudy
- Category
- Mesh Wi-Fi System
- Model
- AC1200 Gigabit Mesh Wi-Fi System, M1300S 1.0, 1-Pack
- Part number
- M1300S 1-PACK
- EAN / UPC
- 6971690795566
- Also known as
- Cudy AC1200 Gigabit Mesh Wi-Fi System, M1300S 1.0, 1-Pack Dual-band (2.4 GHz / 5 GHz) Wi-Fi 5 (802.11ac) White 2 Internal
Specifications
57 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| LED indicators | System |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Maximum coverage | 70 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Networking standards | IEEE 802.11ac |
| Security algorithms | WPA, WPA2, WPA3 |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Guest access | Yes |
| VPN support | VPN Server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP VPN Client: WireGuard OpenVPN IPsec Zerotier PPTP L2TP |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
| Processor frequency | 1.2 GHz |
| Internal memory | 32 MB |
| Flash memory | 128 MB |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Firewall security | SPI Firewall, DoS Protection, Block PING |
| DHCP client | Yes |
| Parental control | Yes |
| Parental control features | Content filter, Custom profiles, Pause the Internet, Off time |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Operating modes | Wi-Fi Router, Access Point, Range Extender, WISP, Client |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 85 mm |
| Height | 86.5 mm |

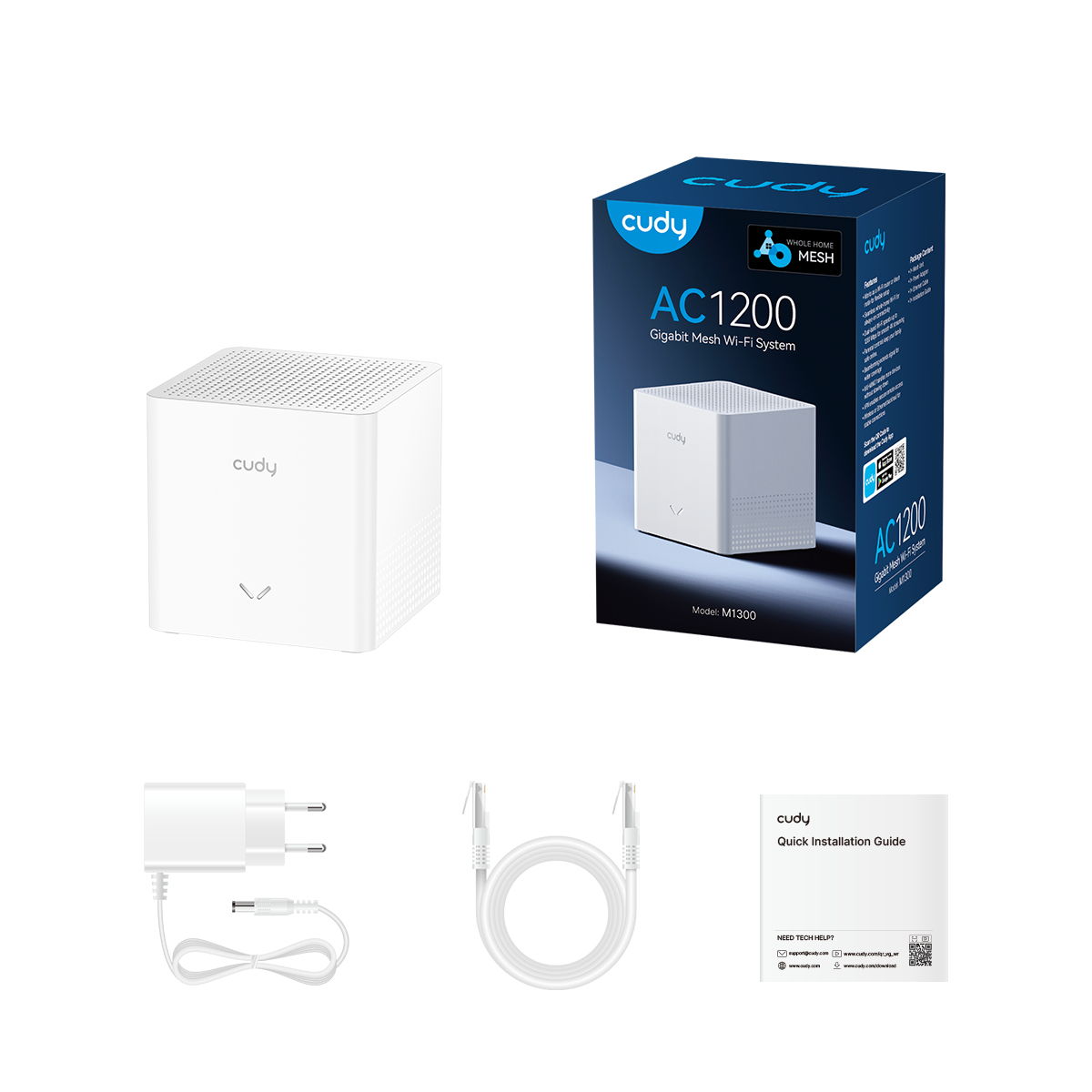

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 94 mm |
| Package depth | 90 mm |
| Package height | 147 mm |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
