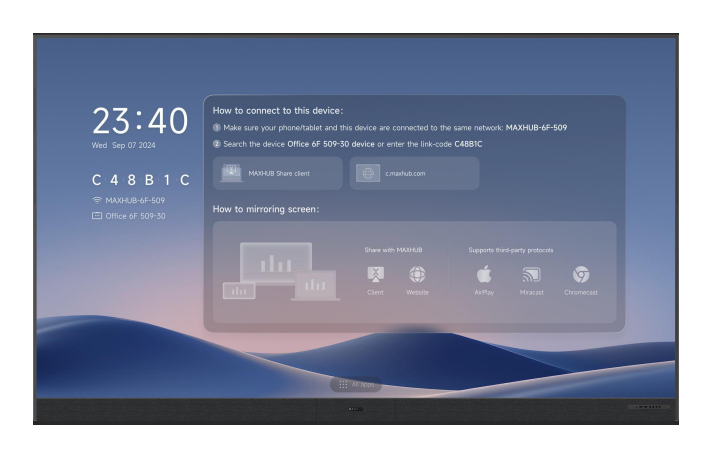

DVLED RAPTOR SERIES V3
Model DVLED RAPTOR SERIES V3Part no. LX220V07EAN 6927433607580
36 specifications
- Display3.81 m (150")
- Resolution1920 x 1080 pixels
- Memory8 GB
- Storage64000 MB
- OSAndroid 13.0
- Weight131 kg
Overview
- Display
- 3.81 m (150")
- Resolution
- 1920 x 1080 pixels
- Memory
- 8 GB
- Storage
- 64000 MB
- OS
- Android 13.0
- Weight
- 131 kg
- Brand
- MAXHUB
- Category
- Meeting Room Display
- Model
- DVLED RAPTOR SERIES V3
- Part numbers
- LX220V07, LX150V07, LX180V07
- EAN / UPC
- 6927433607580, 6927433601700, 6927433607559, 6927433607573 +1 more
- Also known as
- MAXHUB DVLED RAPTOR SERIES V3 3.81 m (150") 1920 x 1080 pixels Black
Specifications
36 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 3.81 m (150") |
| Display resolution | 1920 x 1080 pixels |
| Pixel pitch | 1.7 x 1.7 mm |
| Aspect ratio | 16:9 |
| Maximum refresh rate | 3840 Hz |
| Viewing angle | 160° |
| Display brightness | 600 cd/m² |
| Contrast ratio (typical) | 6500:1 |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| RAM capacity | 8 GB |
| Storage capacity | 64000 MB |
| Operating system installed | Android 13.0 |
| Video formats supported | H.264 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | No |
| Built-in speaker(s) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB port type | USB Type-A |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 2 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| HDMI ports quantity | 5 |
| HDMI version | 1.4/2.0 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 100 - 240 V |
| Power consumption (average) | 0.575 W |
| Power consumption (max) | 1.916 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 131 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | -10 - 40 °C |
