TX-10 meeting room display
25.6 cm (10.1") 1280 x 800 pixels LCD
Model TX-10EAN 4710739596274
39 specifications
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- Energy classNot available
- VESA mountingYes
- Windows operating systems supportedWindows 10, Windows 7, Windows 8
- Built-in microphoneNo
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Energy class
- Not available
- VESA mounting
- Yes
- Windows operating systems supported
- Windows 10, Windows 7, Windows 8
- Built-in microphone
- No
- Brand
- AG Neovo
- Category
- Meeting Room Display
- Model
- TX-10
- Part number
- TX-10
- EAN / UPC
- 4710739596274
- Also known as
- AG Neovo TX-10 meeting room display 25.6 cm (10.1") 1280 x 800 pixels LCD
Specifications
39 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Display technology | LCD |
| Pixel pitch | 0.169 x 0.169 mm |
| Aspect ratio | 16:10 |
| Maximum refresh rate | 60 Hz |
| Response time | 5 ms |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1300:1 |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 10 |
Design
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Yes |
| Certification | CE, LVD, REACH, WEEE |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | No |
| Built-in speaker(s) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |

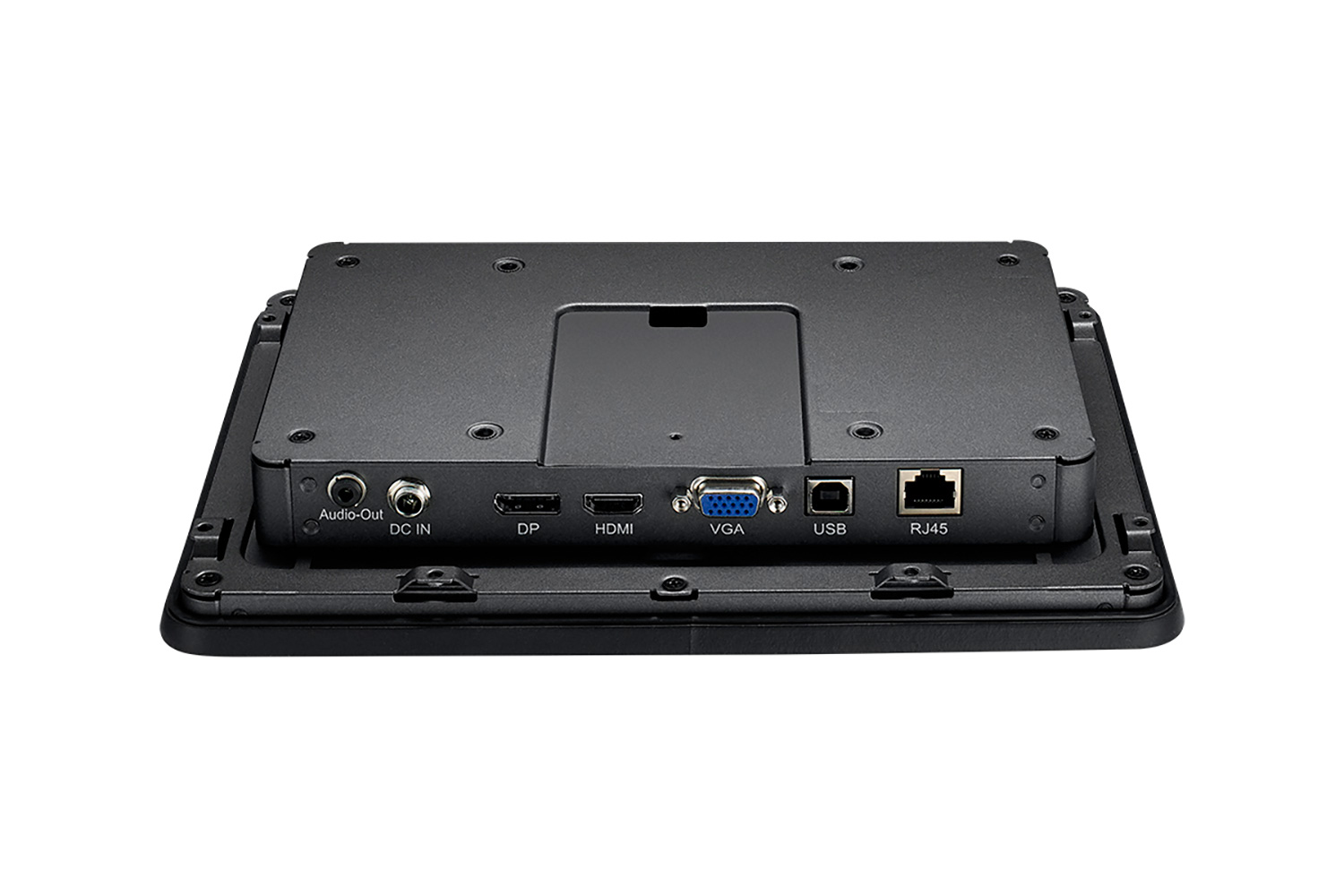

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.3a |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 370 mm |
| Package depth | 160 mm |
| Package height | 325 mm |
| Package weight | 2.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DisplayPort, USB, VGA |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
