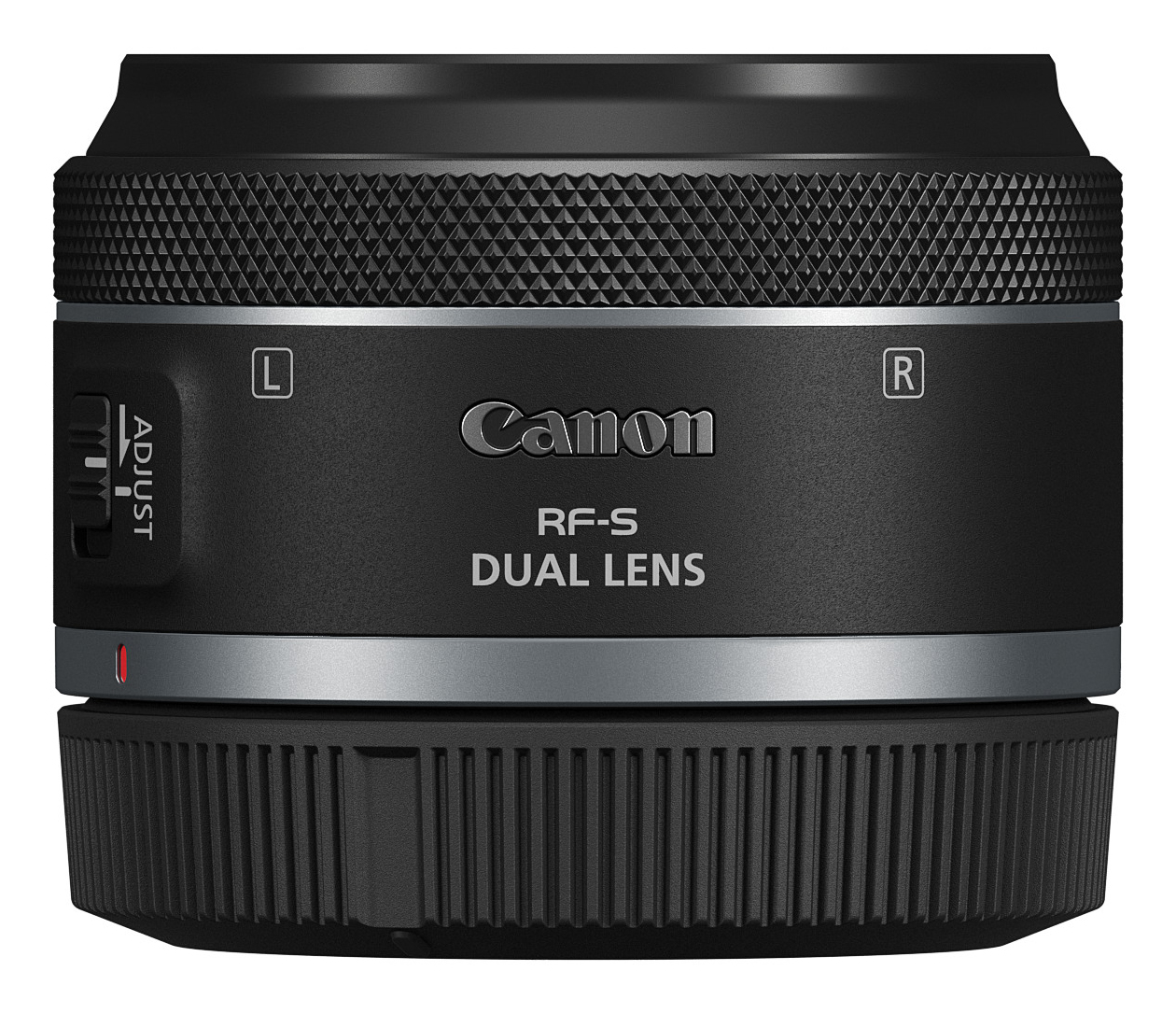

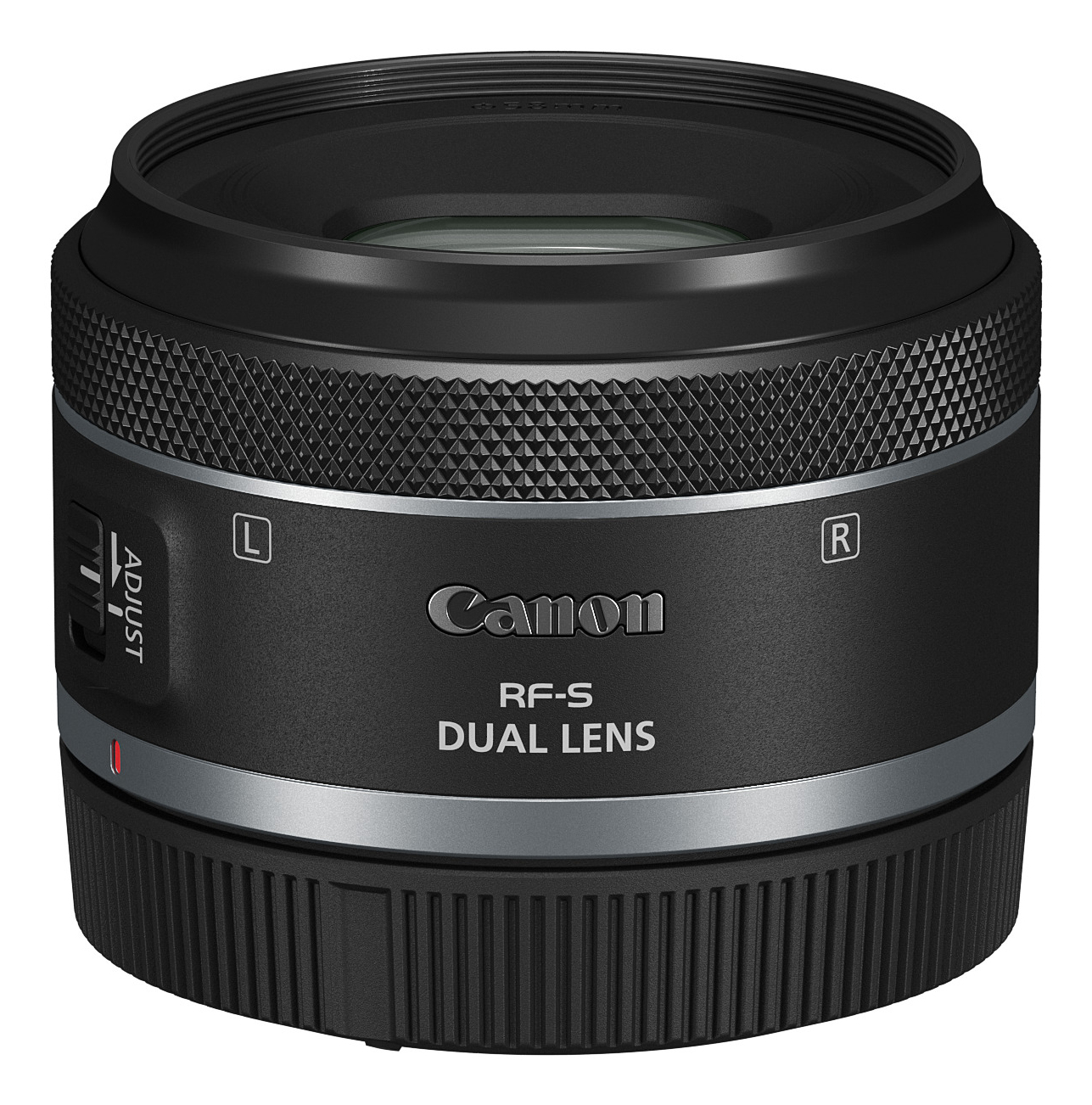

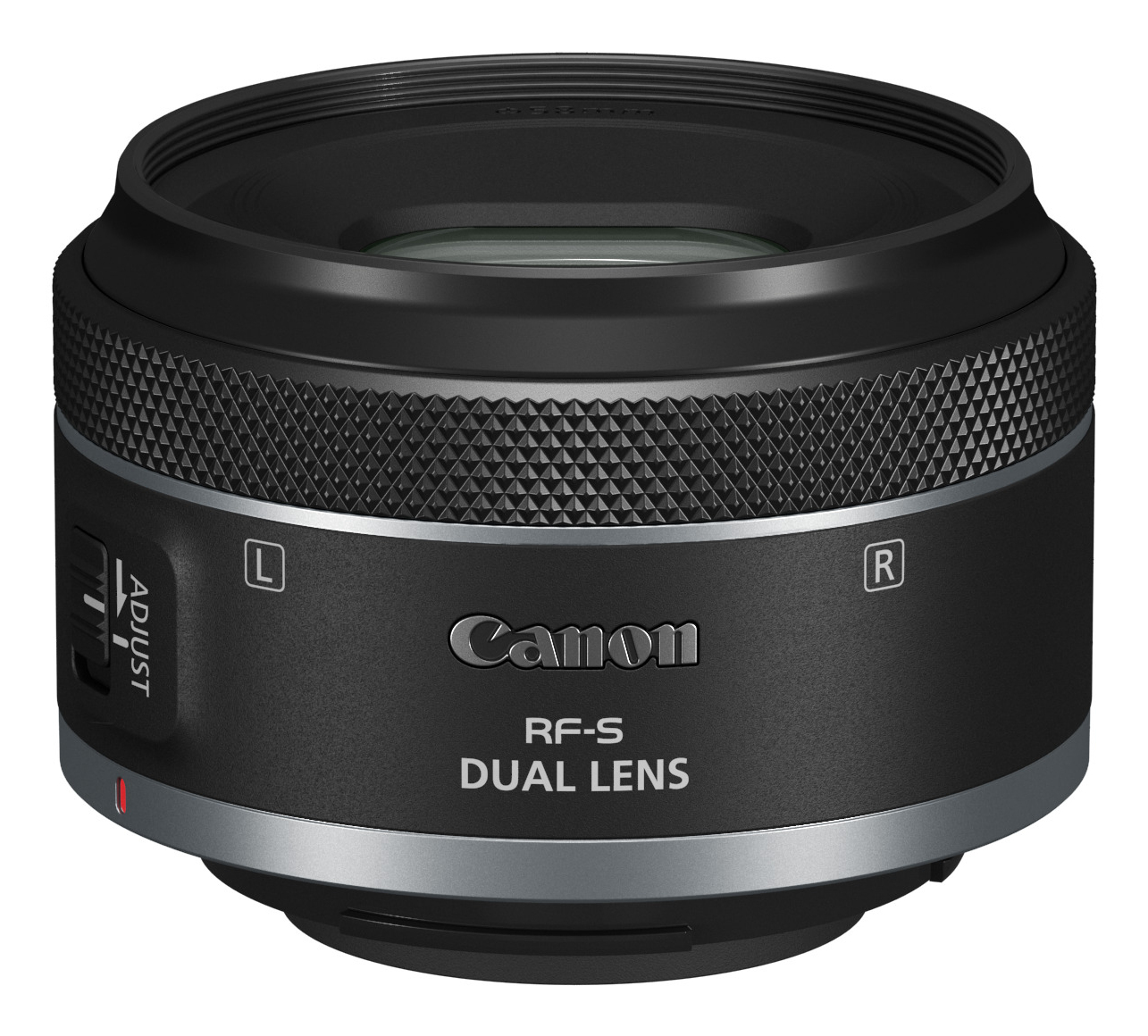

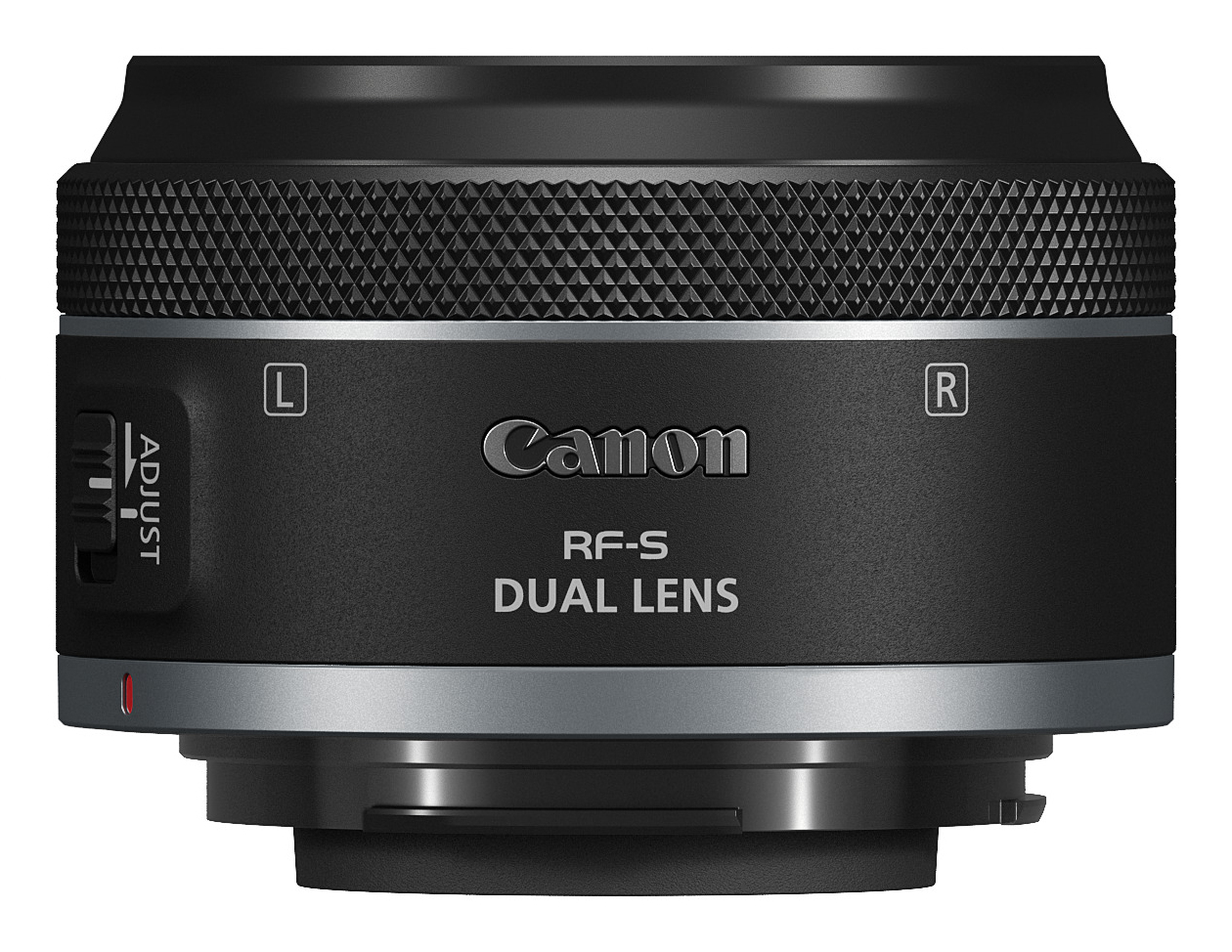

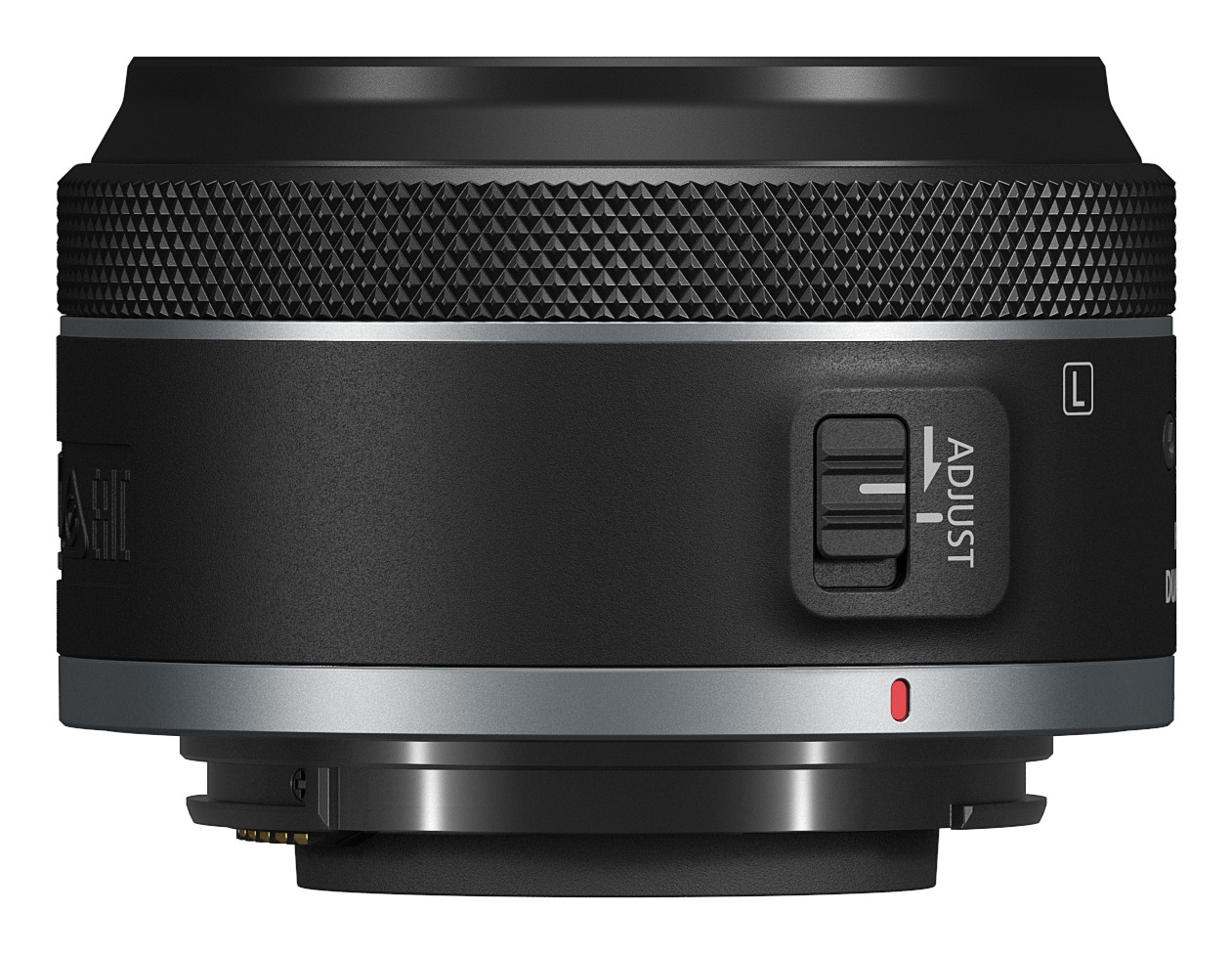

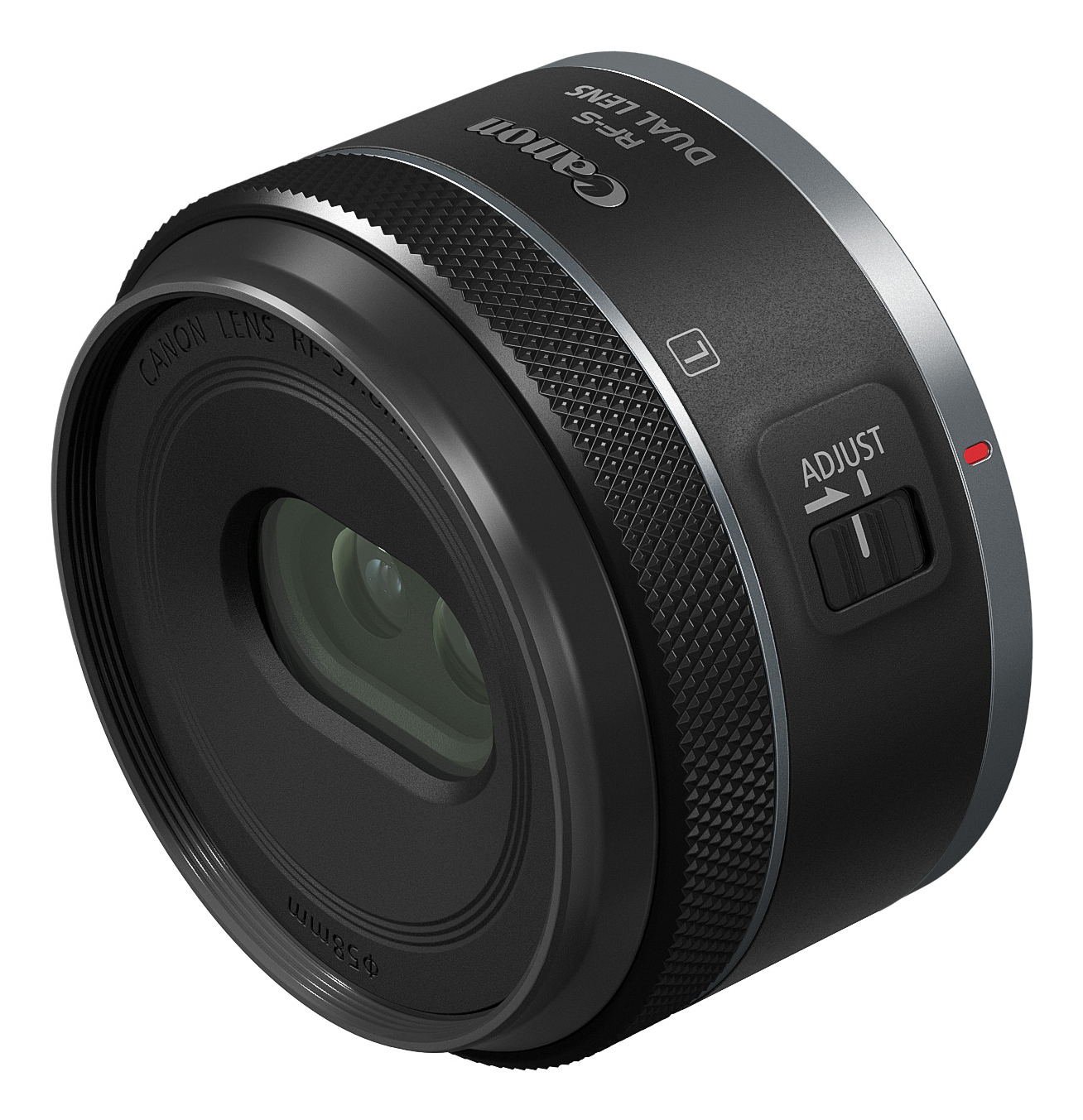

RF-S 7.8 mm F4 STM Dual
Model RF-S 7.8 mm F4 STM DualPart no. 6795C005EAN 4549292237610
39 specifications Checked today
- Weight130 g
- ColourBlack
- Component forMILC
- AF actuatorSTM
- Diameter6.92 cm
Overview
- Weight
- 130 g
- Colour
- Black
- Component for
- MILC
- AF actuator
- STM
- Diameter
- 6.92 cm
- Brand
- Canon
- Category
- Lens
- Model
- RF-S 7.8 mm F4 STM Dual
- Part number
- 6795C005
- EAN / UPC
- 4549292237610
- Also known as
- Canon RF-S 7.8 mm F4 STM Dual MILC Stereoscopic lens Black
Specifications
39 specifications in 7 groups
Lens system
| Specification | Value |
|---|---|
| Component for | MILC |
| Lens structure (elements/groups) | 9/7 |
| Lens type | Stereoscopic lens |
| Lens viewing angle, horizontal | 63° |
| Focus adjustment | Auto/Manual |
| Lens viewing angle, vertical | 63° |
| Fixed focal length | 7.8 mm |
| Lens viewing angle, diagonal | 63° |
| Closest focusing distance | 0.15 m |
| Control ring | Yes |
| Image sensor format | APS-C |
| Lens mount interface | Canon RF |
| Maximum aperture number | 4 |
| Minimum aperture number | 16 |
| Number of diaphragm blades | 7 |
| Zoom capability | No |
Performance
| Specification | Value |
|---|---|
| AF actuator | STM |
| Auto focus | Yes |
| Camera brands compatibility | Canon |
| Lens coating features | Super Spectra Coating (SSC) |
| Manual focus | Yes |
| Maximum magnification | 0.07x |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Bayonet |
| Dustproof | No |
| Moisture-resistant | No |
Logistics data
| Specification | Value |
|---|---|
| Layers per pallet | 5 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 6.92 cm |
| Filter size | 58 mm |
| Length | 41.5 mm |
| Weight | 130 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 110 mm |
| Package height | 132 mm |
| Package weight | 272 g |
| Package width | 110 mm |
Packaging content
| Specification | Value |
|---|---|
| Lens cap included | Yes |
| Lens cap model | E-58II |
| Rear lens cap included | Yes |
| Rear lens cap model | RF |
