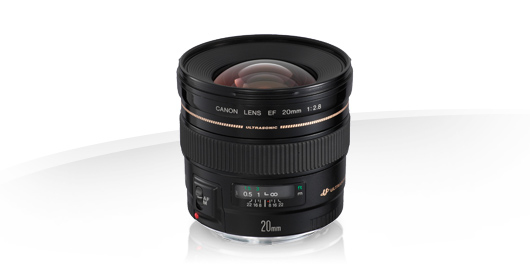

EF 20mm f/2.8 USM
Model EF 20mm f/2.8 USMPart no. 2509A017EAN 8714574506906
18 specifications Checked today
- Weight405 g
- ColourBlack
- Component forSLR
- AF actuatorUSM
- Diameter7.75 cm
Overview
- Weight
- 405 g
- Colour
- Black
- Component for
- SLR
- AF actuator
- USM
- Diameter
- 7.75 cm
- Brand
- Canon
- Category
- Lens
- Model
- EF 20mm f/2.8 USM
- Part numbers
- 2509A017, 2509A010, 2509A012, EF202.8U, EF2002.8LII, 2509A015 +1 more
- EAN / UPC
- 8714574506906, 082966212888, 678209271158, 829662128880 +18 more
- Also known as
- Canon EF 20mm f/2.8 USM SLR Ultra-wide lens Black
Specifications
18 specifications in 5 groups
Lens system
| Specification | Value |
|---|---|
| Component for | SLR |
| Lens structure (elements/groups) | 11/9 |
| Lens type | Ultra-wide lens |
| Lens viewing angle, horizontal | 84° |
| Lens viewing angle, vertical | 62° |
| Fixed focal length | 20 mm |
| Lens viewing angle, diagonal | 94° |
| Closest focusing distance | 0.25 m |
| Lens mount interface | Canon EF |
| Maximum aperture number | 22 |
| Number of diaphragm blades | 5 |
Performance
| Specification | Value |
|---|---|
| AF actuator | USM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 7.75 cm |
| Filter size | 72 mm |
| Length | 70.6 mm |
| Weight | 405 g |
Other features
| Specification | Value |
|---|---|
| Magnification | 0.14x |
