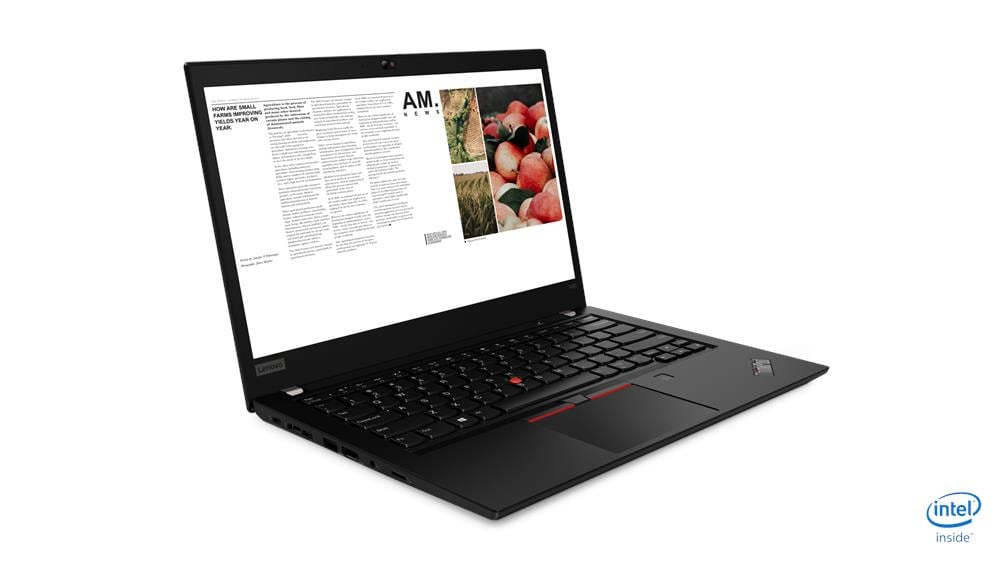

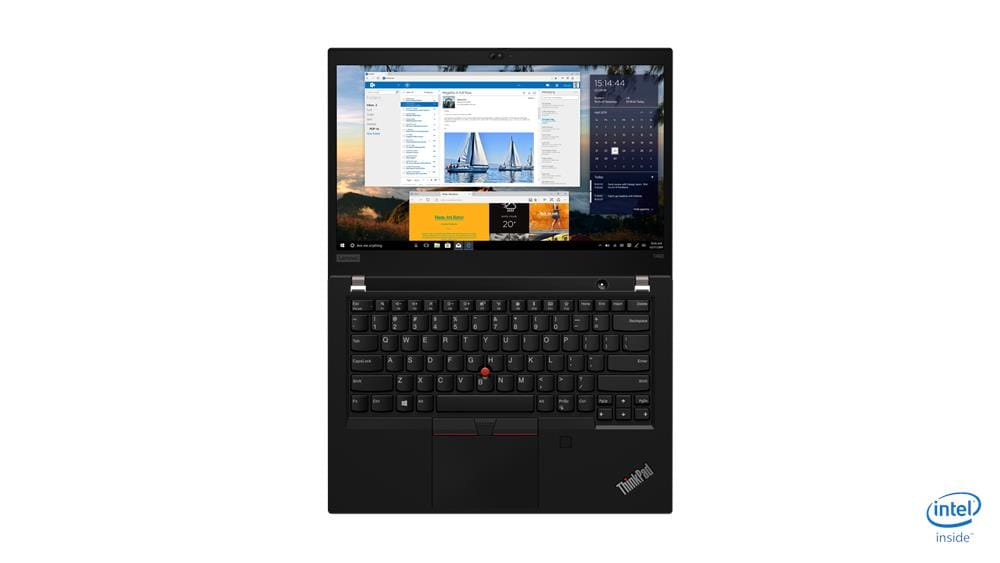

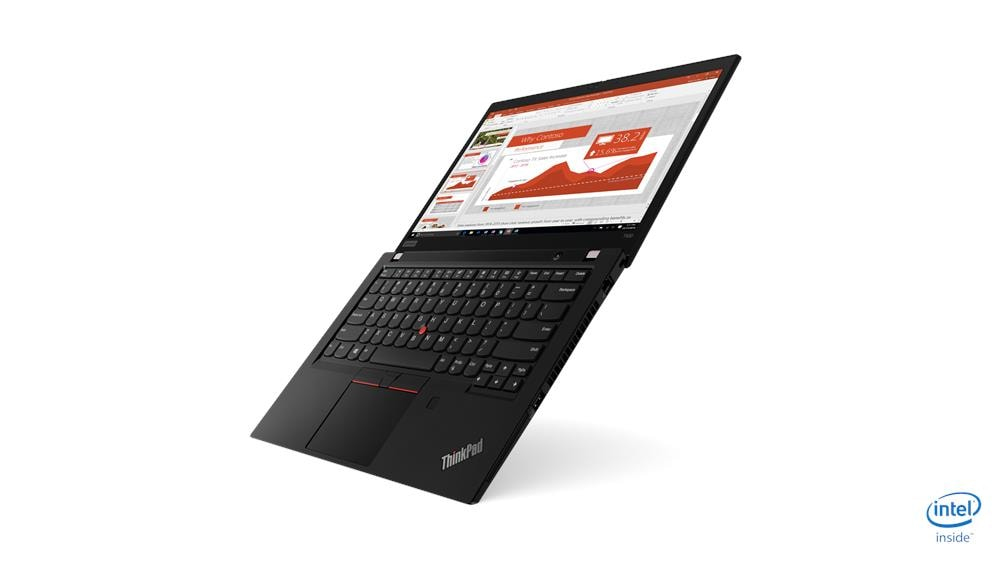

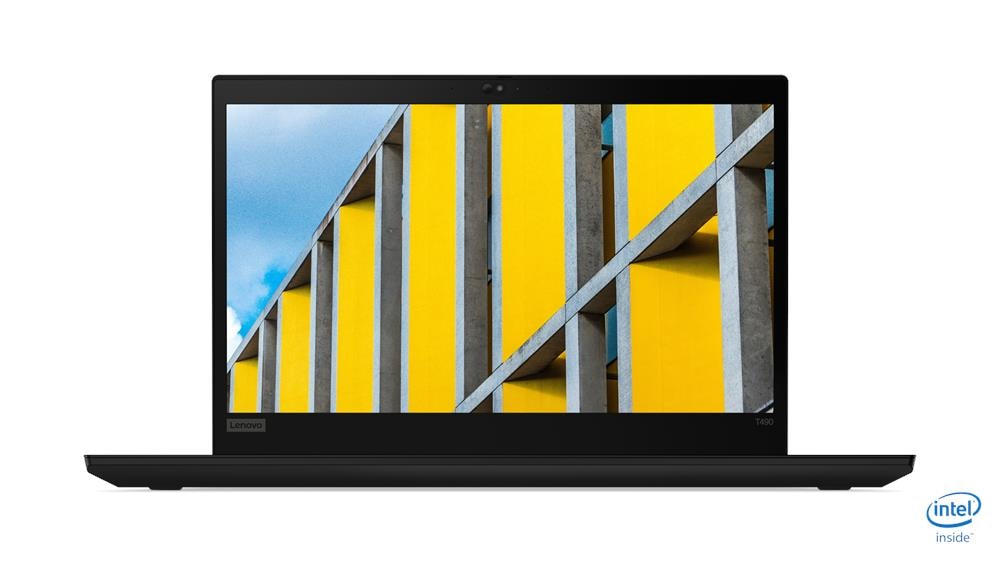

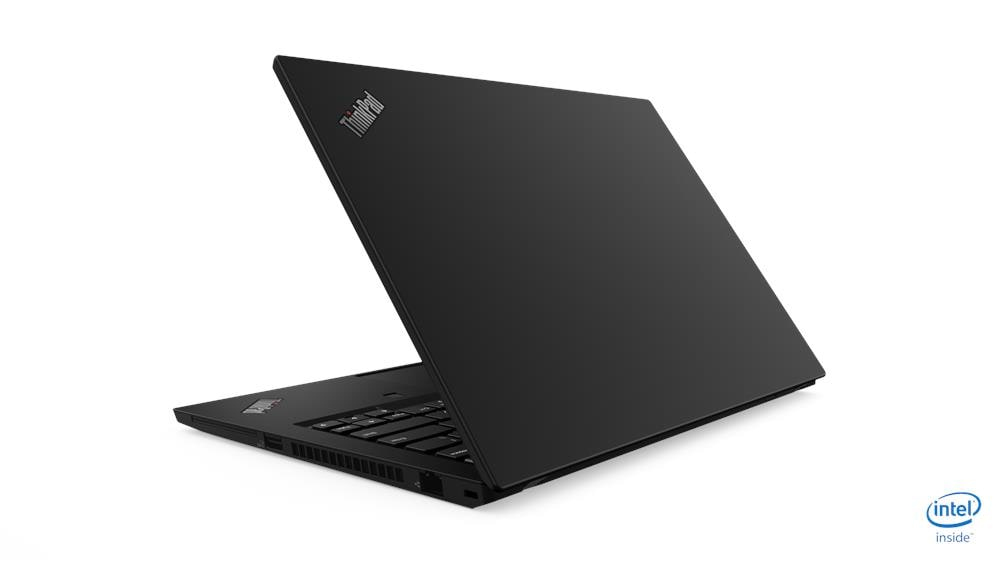

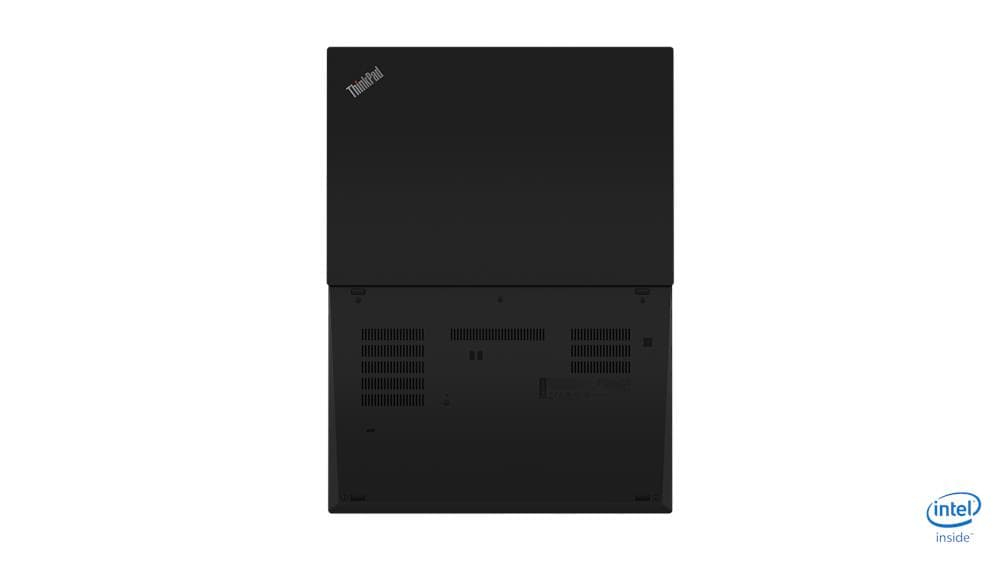

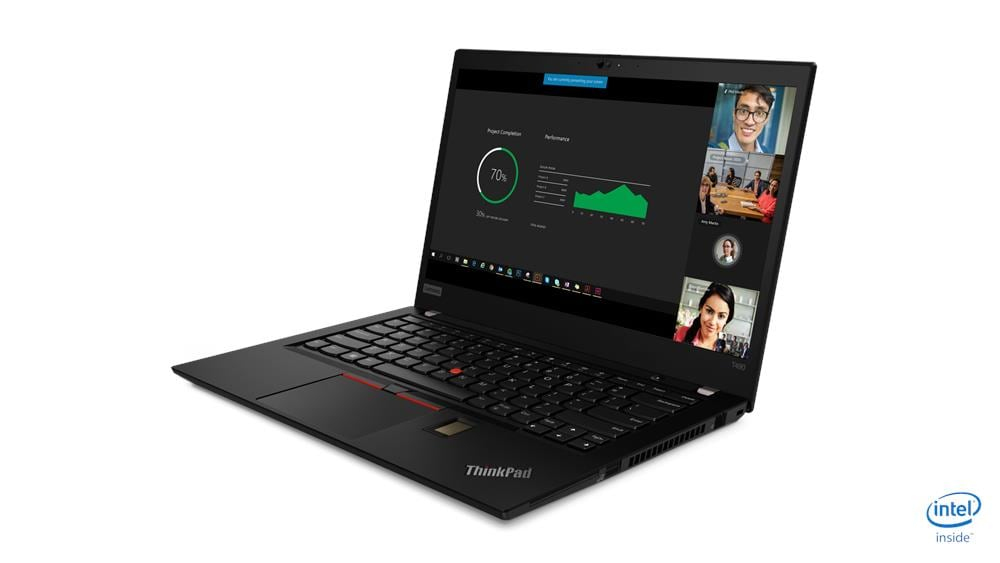

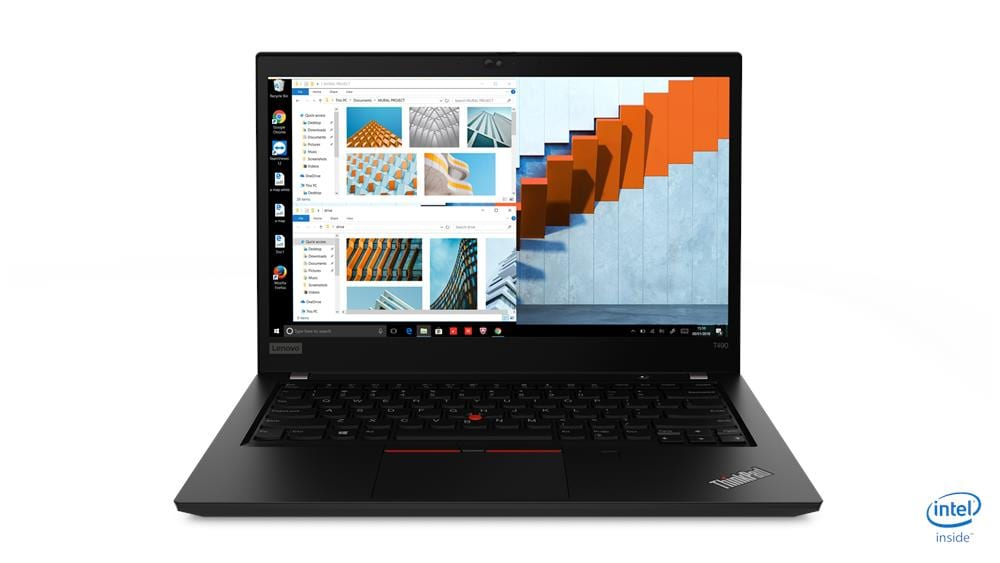

Lenovo ThinkPad T490

ThinkPad T490

Model ThinkPad T490Part no. 20N2000DMXEAN 193386025405

97 specifications Checked today

Display35.6 cm (14")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ThinkPad T490
Part numbers: 20N2000DMX, 20N3S3J000, 20N3S72U00, 20N2S0B600, 20N2S0GQ00, 20N20009UK +34 more
EAN / UPC: 193386025405, 194552605025, 194552745134, 194552147655 +56 more
Also known as: Lenovo ThinkPad T490 Intel® Core™ i5 i5-8265U Laptop 35.6 cm (14") HD 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Black Spanish

Specifications

97 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
Panel type	TN
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor model	i5-8265U
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	1.6 GHz

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Maximum internal memory	40 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

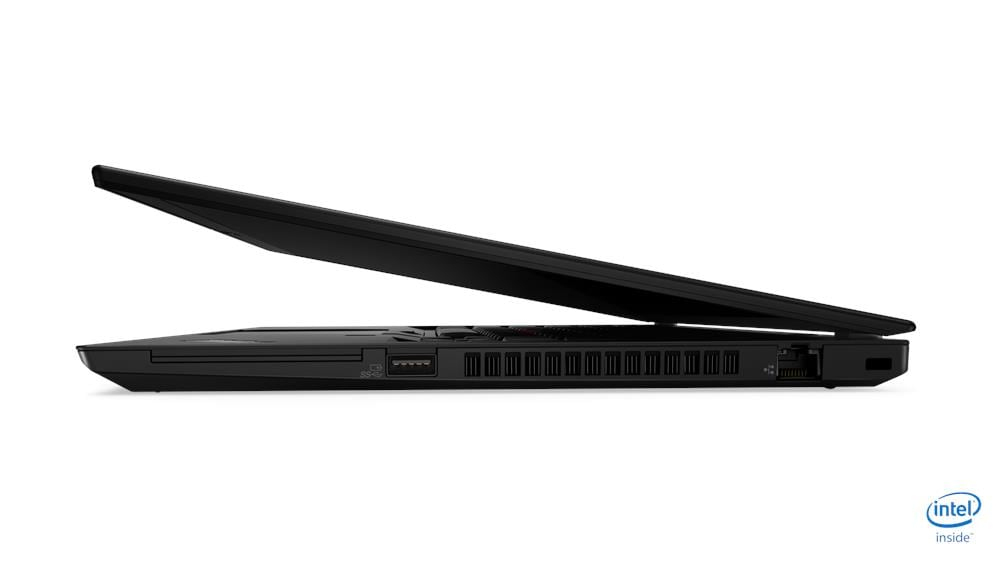

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
Thunderbolt 3 ports quantity	1
Combo headphone/mic port	Yes
Docking connector	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	No
Numeric keypad	No
Keyboard language	Spanish

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Spanish

Battery

Specification	Value
Battery capacity	50 Wh

Power

Specification	Value
AC adapter power	65 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	1.53 kg
Width	329 mm
Depth	227 mm
Height	17.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
