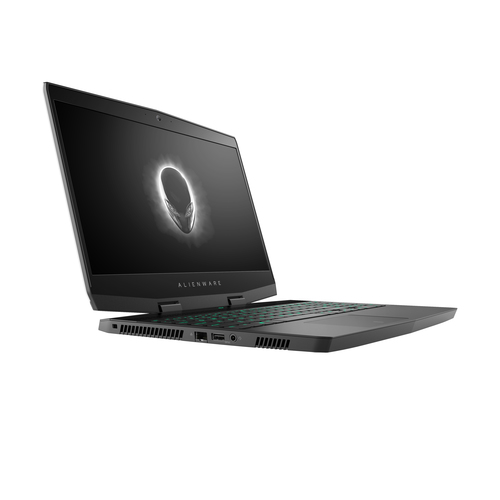

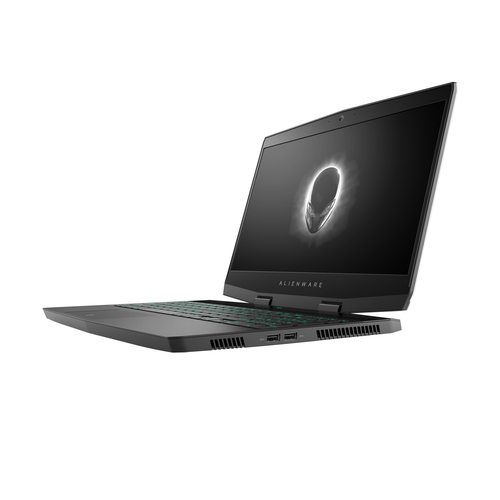

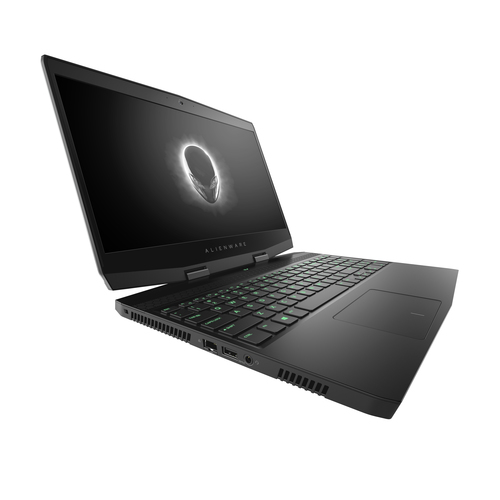

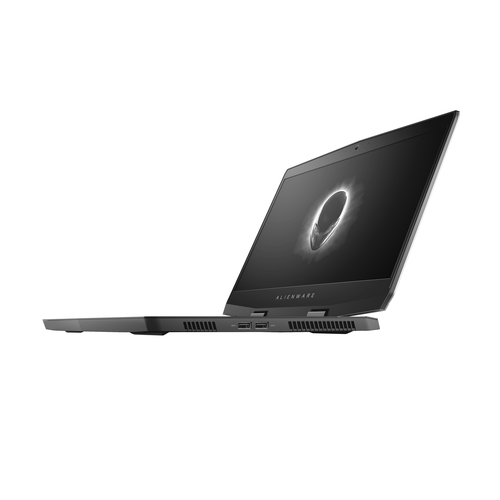

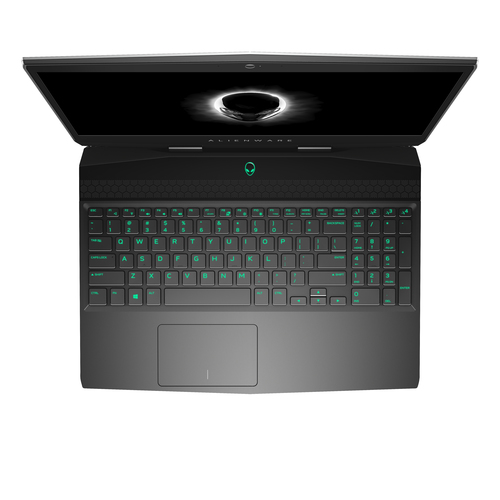

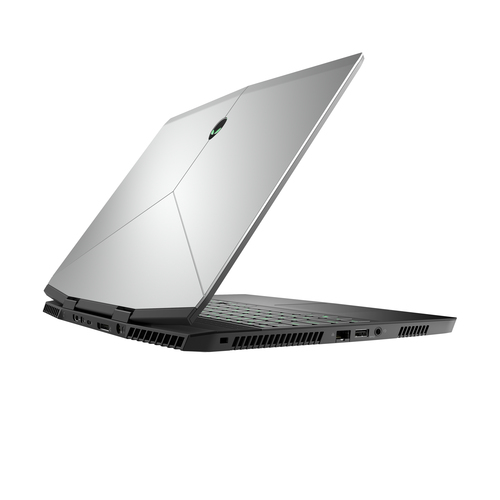

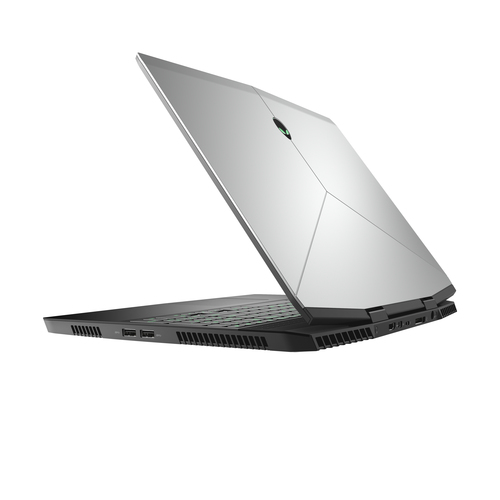

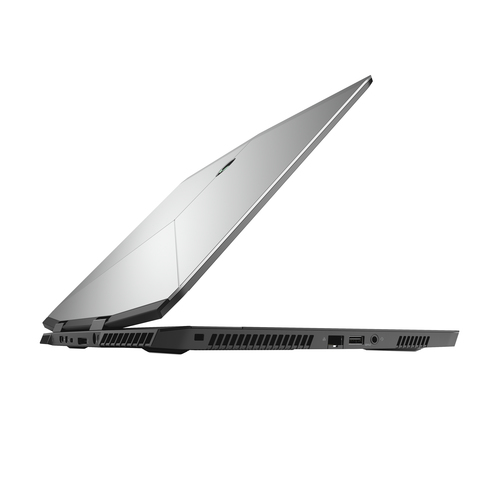

m15 Intel® Core™ i7 i7-8750H Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1.25 TB Hybrid-HDD+SSD NVIDIA® GeForce® GTX 1070 Max-Q Wi-Fi 5 (802.11ac)

Model m15Part no. N500M2001308KREAN 5397184246146

219 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1.25 TB
GraphicsNVIDIA® GeForce® GTX 1070 Max-Q

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1.25 TB
Graphics: NVIDIA® GeForce® GTX 1070 Max-Q

Brand: Alienware
Category: Laptop
Model: m15
Part numbers: N500M2001308KR, N500M2001304KR, N500M2001303KR, N500M2001306KR, N500M2001307KR, N500M2001305KR +34 more
EAN / UPC: 5397184246146, 5397184246283, 5397184246290, 5397184246344 +14 more
Also known as: Alienware m15 Intel® Core™ i7 i7-8750H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1.25 TB Hybrid-HDD+SSD NVIDIA® GeForce® GTX 1070 Max-Q Wi-Fi 5 (802.11ac)

Specifications

219 specifications in 24 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Grey, Silver
Colour name	Epic Silver
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Display brightness	300 cd/m²
Pixel density	141 ppi
Pixel pitch	0.179 x 0.179 mm
Dual-screen	No
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8750H
Processor cores	6
Processor threads	12
Processor boost frequency	4.1 GHz
Processor frequency	2.2 GHz
System bus rate	8 GT/s
Processor cache	9 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Bus type	DMI
Stepping	U0
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Configurable TDP-down frequency	1.7 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Maximum internal memory (64-bit)	32 GB

Storage

Specification	Value
Total storage capacity	1.25 TB
Storage media	Hybrid-HDD+SSD
Hybrid-HDD capacity	1 TB
Hybrid-HDD cache memory	8 GB
HDD size	2.5"
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1070 Max-Q
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E9B
Number of discrete graphics cards installed	1
CUDA	Yes

Audio

Specification	Value
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Front camera signal format	1080p
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
WLAN controller model	Killer Wireless-AC 1550
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
Alienware graphics amplifier port	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	Various
Windows keys	Yes
Keyboard language	UK English

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	English
Trial software	McAfee LiveSafe (30 days Trial), Microsoft Office (30 days Trial)
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	134906
Processor code	SR3YY
Processor package size	42 x 28 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	60 Wh
Battery voltage	15.2 V
Battery recharge time	4 h
Battery weight	250 g

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	9.23 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	362.5 mm
Depth	275 mm
Height (front)	1.79 cm
Height (rear)	2 cm

Packaging data

Specification	Value
Package width	407.8 mm
Package depth	455.3 mm
Package height	117.4 mm
Package weight	4.58 kg

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	1.03 kg
Corrugated cardboard content per shipping (inner) case	639.1 g
Corrugated cardboard content per box for accessories	202.2 g
Corrugated cardboard content per sleeve for accessories	192 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	0 g
Low-density polyethylene (LDPE) content per package	21 g
Polypropylene (PP) content per package	0 g
Polystyrene (PS) content per package	0 g
Other materials content per package	120.89 g

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Logistics data

Specification	Value
Products per pallet layer	20 pc(s)
Layers per pallet	2 pc(s)
Products per pallet	40 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	191.4 kg
Pallet volume weight	75 kg
Products per intermodal container (20ft)	800 pc(s)
Products per intermodal container (40ft)	1680 pc(s)

Other features

Specification	Value
EPEAT rating	87.93%
Package volume weight	3.6329692193333 kg
