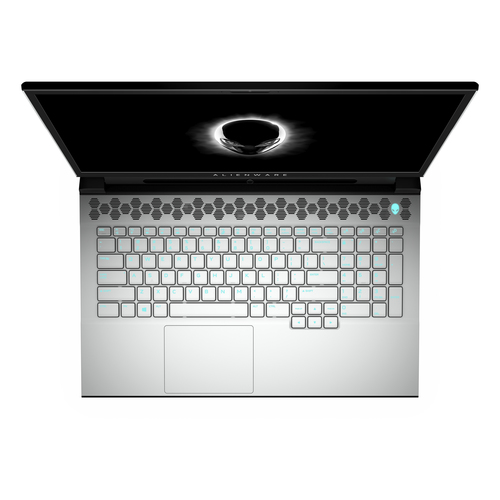

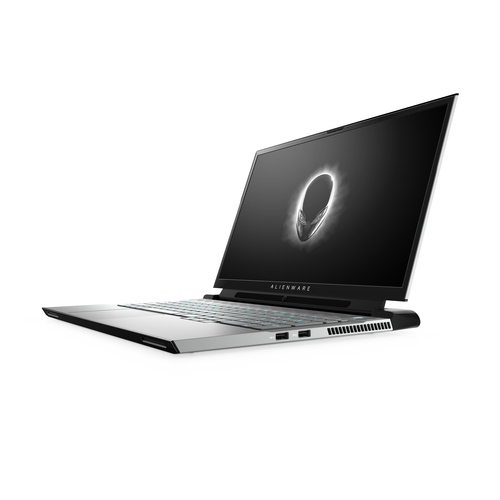

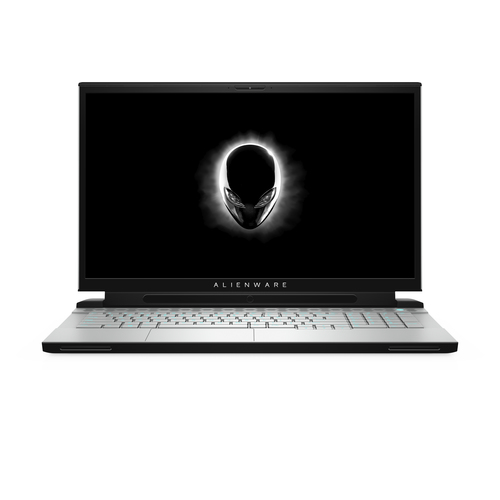

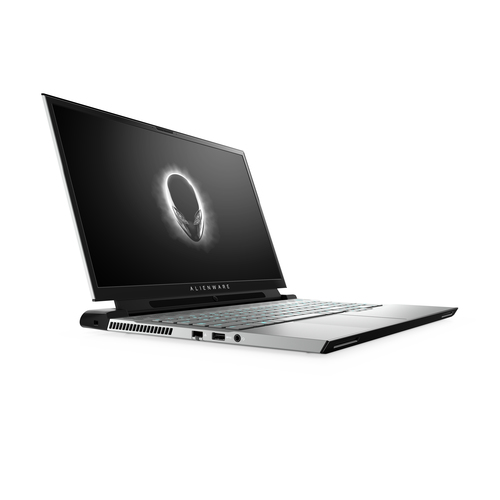

m17 R2
Model m17 R2Part no. WNM17R2070SEAN 5397184286227
211 specifications Checked today
- Display43.9 cm (17.3")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i9
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA® GeForce RTX™ 2080 Max-Q
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i9
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® GeForce RTX™ 2080 Max-Q
- Brand
- Alienware
- Category
- Laptop
- Model
- m17 R2
- Part numbers
- WNM17R2070S, WNM17R2070SBUN, N00AWM17R206, AWR2-5992, AWR2-6111, AWR2-6128 +34 more
- EAN / UPC
- 5397184286227, 5397184286234, 5397184286395, 5397184286401 +13 more
- Also known as
- Alienware m17 R2 Intel® Core™ i9 i9-9980HK Laptop 43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 2080 Max-Q Wi-Fi 5 (802.11ac) Windows
Specifications
211 specifications in 25 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black, White |
| Colour name | Lunar Light |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Pixel density | 127 ppi |
| Pixel pitch | 0.2 x 0.2 mm |
| Dual-screen | No |
| Display response rise/fall | 19 ms |
| Maximum refresh rate | 144 Hz |
| NTSC coverage (typical) | 72% |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 9th gen Intel® Core™ i9 |
| Processor model | i9-9980HK |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5 GHz |
| Processor frequency | 2.4 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | On-board |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 16 GB |
| Maximum internal memory (64-bit) | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2080 Max-Q |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1250 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards installed | 1 |
| CUDA | Yes |
| CUDA cores | 2944 |
| NVIDIA GameWorks VR | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3281-CG |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Video capturing speed | 30 fps |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Thunderbolt™ 3 Technology | Yes |
| Combo headphone/mic port | Yes |
| Alienware graphics amplifier port | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Performance
| Specification | Value |
|---|---|
| Virtual Reality (VR) ready | Yes |
| Motherboard chipset | Intel® HM370 |
| Repairability index | 6.9 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | Various |
| Windows keys | Yes |
| Keyboard language | French |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
| Bundled software | Financial Tracker & Retail Information |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 192990 |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery capacity | 76 Wh |
| Battery voltage | 11.4 V |
| Battery recharge time | 4 h |
| Battery weight | 320 g |
Power
| Specification | Value |
|---|---|
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12.31 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Noble |
| Password protection | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.63 kg |
| Width | 399.8 mm |
| Depth | 294.3 mm |
| Height (front) | 1.86 cm |
| Height (rear) | 1.95 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 425.8 mm |
| Package depth | 502.8 mm |
| Package height | 117.4 mm |
| Package weight | 5.34 kg |
| Package material | Corrugated cardboard, Polypropylene (PP) |
Recycling data
| Specification | Value |
|---|---|
| Paper molded pulp content per package | 0 g |
| Bamboo molded pulp content per package | 0 g |
| Wheat straw molded pulp content per package | 0 g |
| Grey board content per package | 0 g |
| Corrugated cardboard content per package | 1.49 kg |
| Corrugated cardboard content per shipping (inner) case | 1.06 kg |
| Corrugated cardboard content per box for accessories | 229 g |
| Corrugated cardboard content per sleeve for accessories | 205 g |
| Polyethylene terephthalate (PET) content per package | 0 g |
| High-density polyethylene (HDPE) content per package | 0 g |
| Low-density polyethylene (LDPE) content per package | 0 g |
| Polypropylene (PP) content per package | 19 g |
| Polystyrene (PS) content per package | 0 g |
| Other materials content per package | 166 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet layer | 18 pc(s) |
| Layers per pallet | 2 pc(s) |
| Products per pallet | 36 pc(s) |
| Pallet gross width | 100 cm |
| Pallet gross length | 120 cm |
| Pallet gross weight | 200.1 kg |
| Pallet volume weight | 75 kg |
| Products per intermodal container (20ft) | 720 pc(s) |
| Products per intermodal container (40ft) | 1512 pc(s) |
Other features
| Specification | Value |
|---|---|
| EPEAT rating | 88.96% |
| Package volume weight | 4.189071496 kg |
Similar products
All laptops
Alienware
m17 Intel® Core™ i7 i7-8750H Laptop
Model m17
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad W550s (Refurbished) B
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad W550s (Refurbished) A
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad T550 (Refurbished) Grade B
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad T550 (Refurbished) Grade A
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad T550 (Refurbished) A
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad T550 (Refurbished) B
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad X1 Yoga 1st (Refurbished) B
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
upcycle it
Lenovo ThinkPad X1 Yoga 1st (Refurbished) A
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
upcycle it
Lenovo ThinkPad T550 (Refurbished) С
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
upcycle it
Lenovo ThinkPad X1 Yoga 1st (Refurbished) C
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
