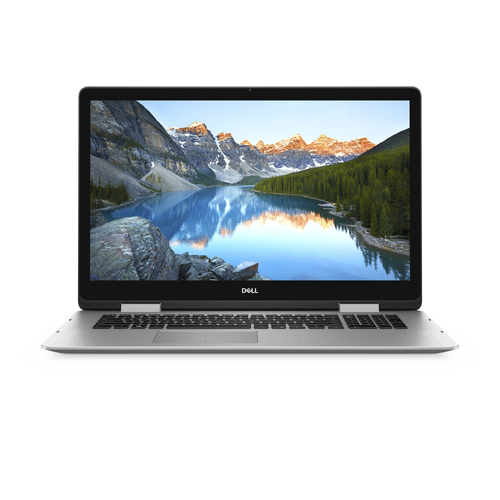

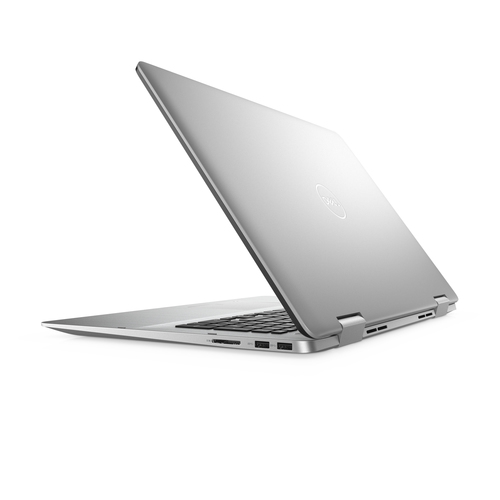

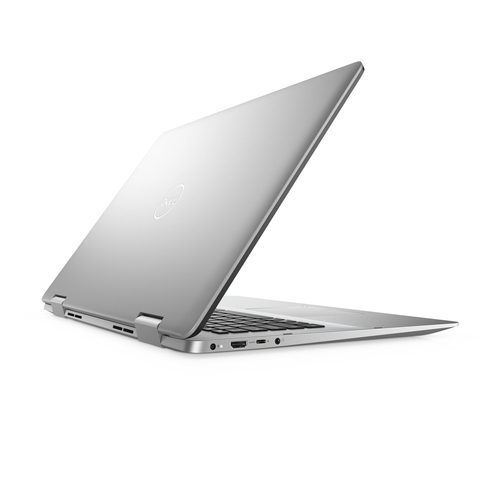

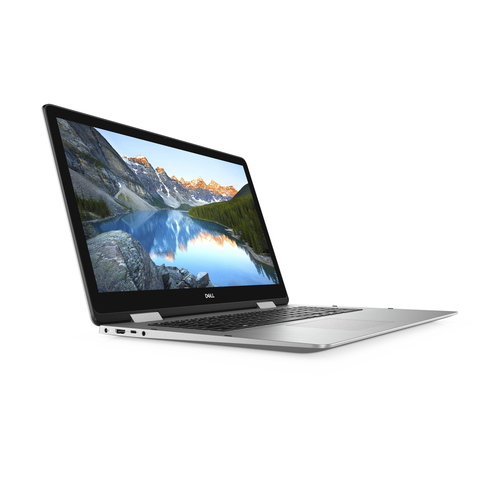

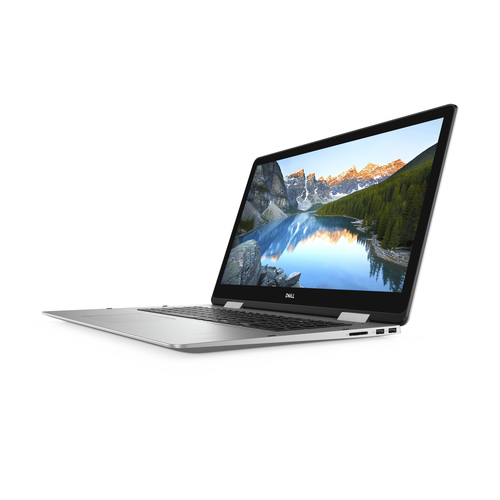

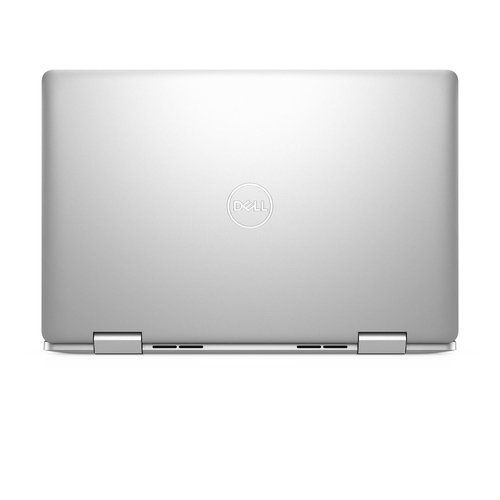

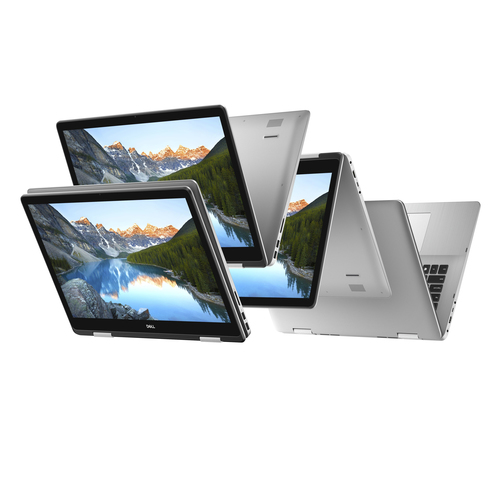

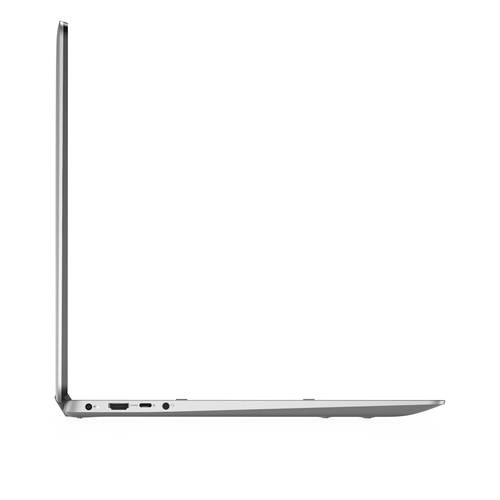

Inspiron 7786 Intel® Core™ i7 i7-8565U Hybrid (2-in-1)

43.9 cm (17.3") Touchscreen Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® MX150 Wi-Fi 5 (802.

Model 7786Part no. CAI1772N1W10PC1009EAN 884116313229

223 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA® GeForce® MX150

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce® MX150

Brand: Dell
Category: Laptop
Model: 7786
Part numbers: CAI1772N1W10PC1009, CAI1772N1W10PC126103BP, CAI1772N1W10PC16103, CAI1772N1W10PC2008BP, CAI1772N1W10PC26103, CAI1772N1W10PC28 +30 more
EAN / UPC: 884116313229, 884116314929, 884116313199, 5397184283219 +9 more
Also known as: DELL Inspiron 7786 Intel® Core™ i7 i7-8565U Hybrid (2-in-1) 43.9 cm (17.3") Touchscreen Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® MX150 Wi-Fi 5 (802.

Specifications

223 specifications in 24 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Platinum, Silver
Colour name	Platinum Silver
Form factor	Convertible (Folder)

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Pixel density	127 ppi
Pixel pitch	0.198 x 0.198 mm
Contrast ratio (typical)	700:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8565U
Processor cores	4
Processor threads	8
Processor boost frequency	4.6 GHz
Processor frequency	1.8 GHz
System bus rate	4 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1528
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Whiskey Lake
Bus type	OPI
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x4, 2x2
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce® MX150
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3EA0
Number of discrete graphics cards installed	1

Audio

Specification	Value
Audio chip	Realtek ALC3254
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
WLAN controller model	Intel Dual Band Wireless-AC 9560
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	German, Dutch, English, French, Italian
Drivers included	Yes
Trial software	Microsoft Office, McAfee LiveSafe (30 days Trial), Microsoft Office (30 days Trial - Excludes Office License)
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	149091
Processor package size	46x24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Number of battery cells	4
Battery capacity	56 Wh
Battery voltage	15.2 V
Removable battery	No
Battery recharge time	4 h

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.34 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Fingerprint reader	Yes
Password protection	Yes
Password protection type	BIOS, User

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.94 kg
Width	412.5 mm
Depth	273.9 mm
Height (front)	1.61 cm
Height (rear)	2.15 cm

Packaging data

Specification	Value
Package width	79 mm
Package depth	561 mm
Package height	353 mm
Package weight	3.93 kg
Package material	Corrugated cardboard, Paper molded pulp, High-Density Polyethylene (HDPE)

Recycling data

Specification	Value
Paper molded pulp content per package	260 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	480 g
Corrugated cardboard content per shipping (inner) case	450 g
Corrugated cardboard content per box for accessories	30 g
Corrugated cardboard content per sleeve for accessories	0 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	20 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	0 g
Polystyrene (PS) content per package	0 g
Other materials content per package	4 g

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Logistics data

Specification	Value
Maximum number of stacking cartons	6 pc(s)
Products per pallet layer	24 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	72 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross height	119.9 cm
Pallet gross weight	291 kg
Pallet volume weight	239.8 kg
Products per intermodal container (20ft)	1200 pc(s)
Products per intermodal container (40ft, HC)	3024 pc(s)

Other features

Specification	Value
Laptop hinge test	Yes
Convertible hinge test	Yes
Keyboard test	Yes
Extreme temperature test	Yes
I/O ports test	Yes
EPEAT rating	96.86%
Package volume weight	2.6074345 kg
