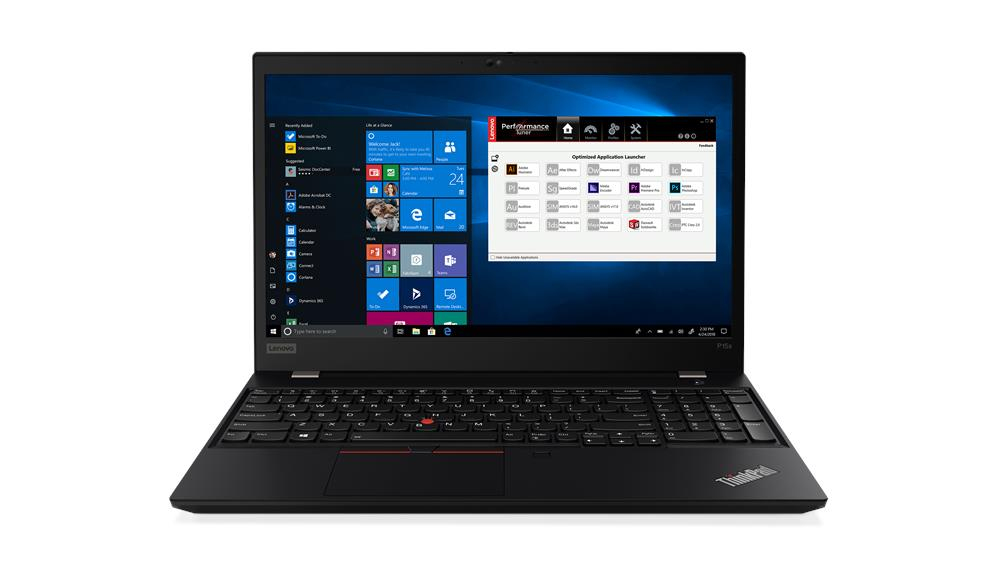

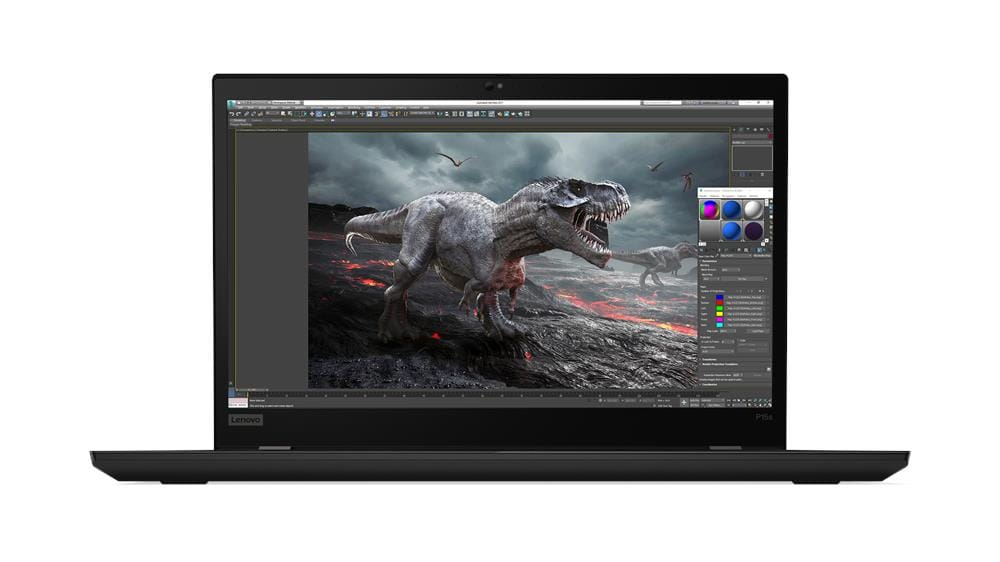

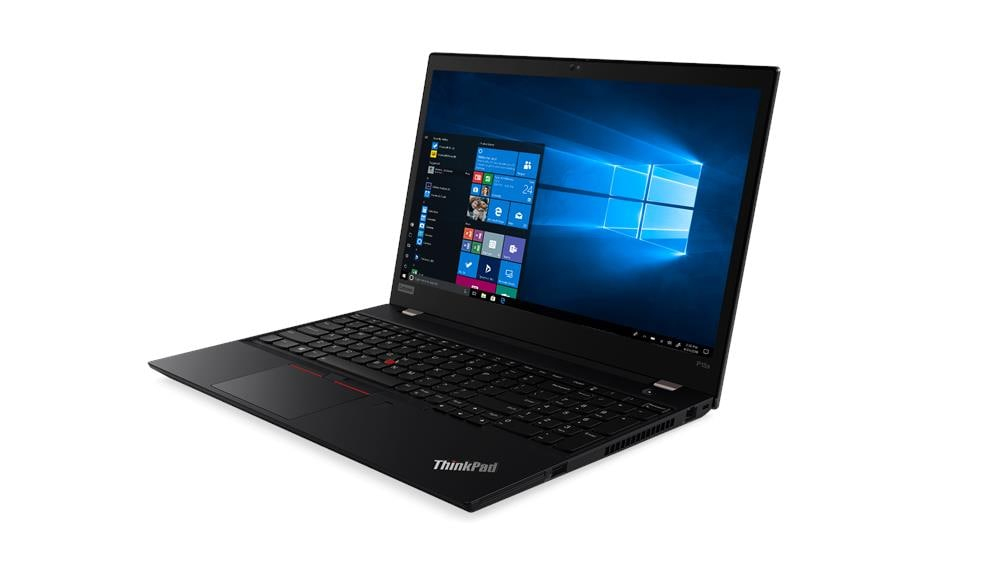

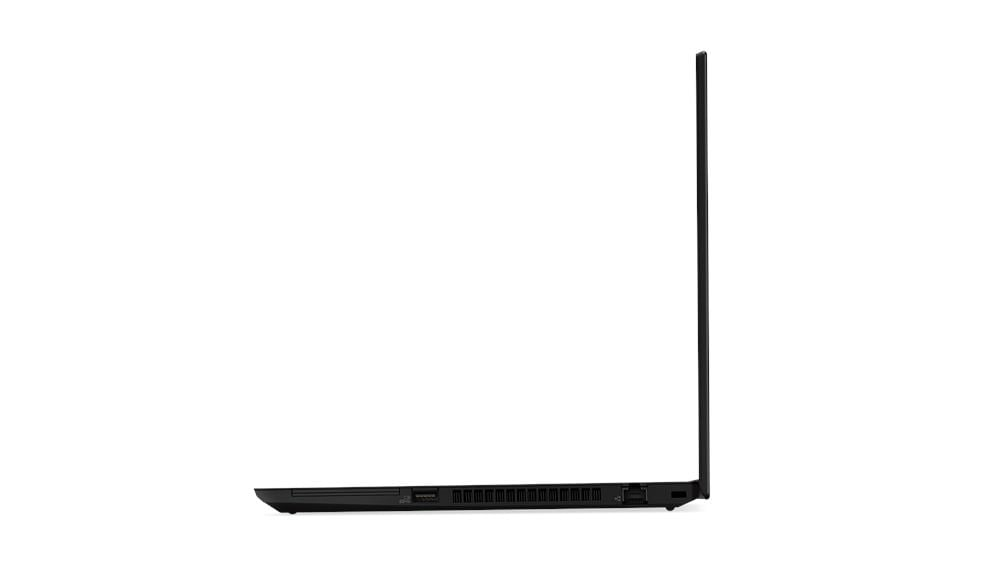

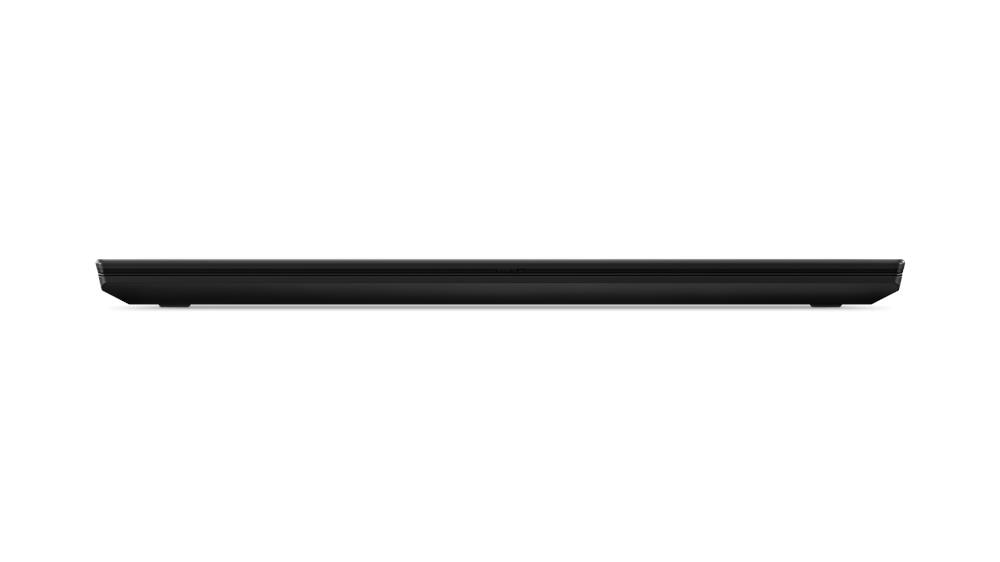

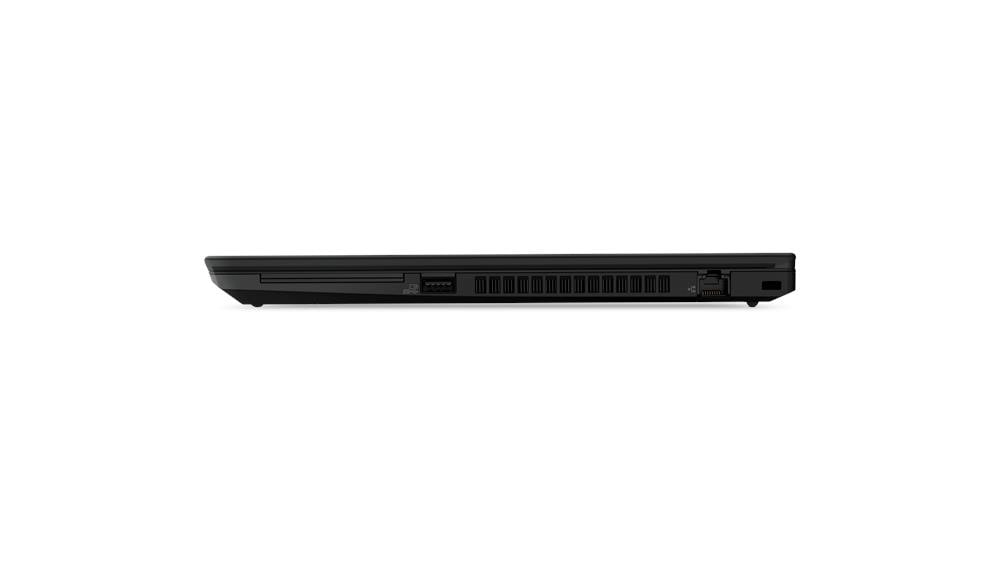

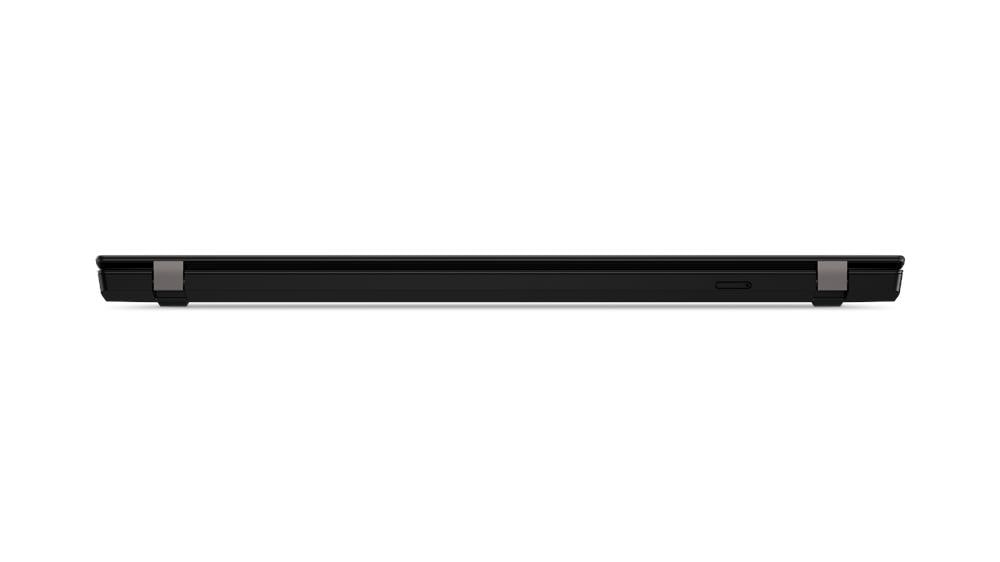

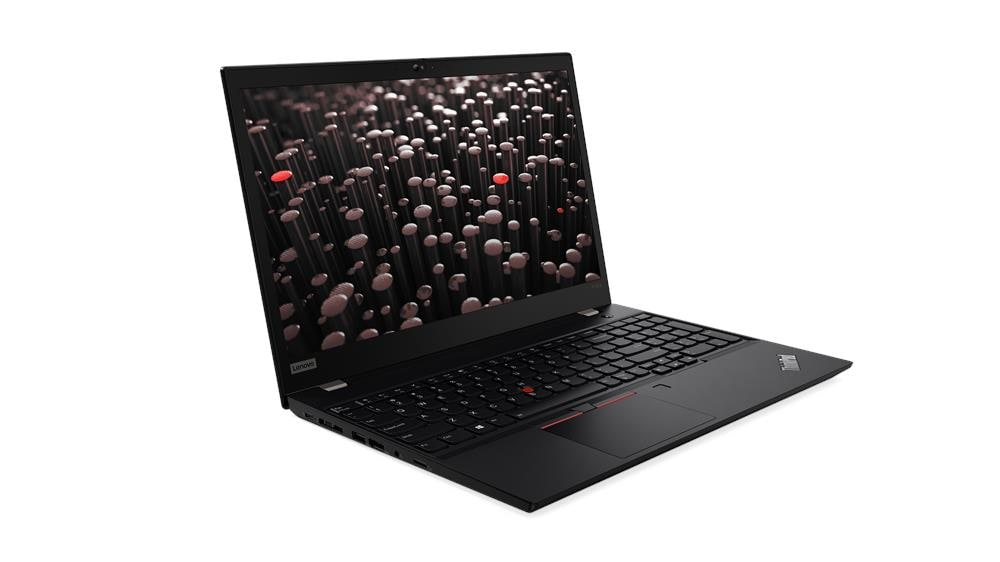

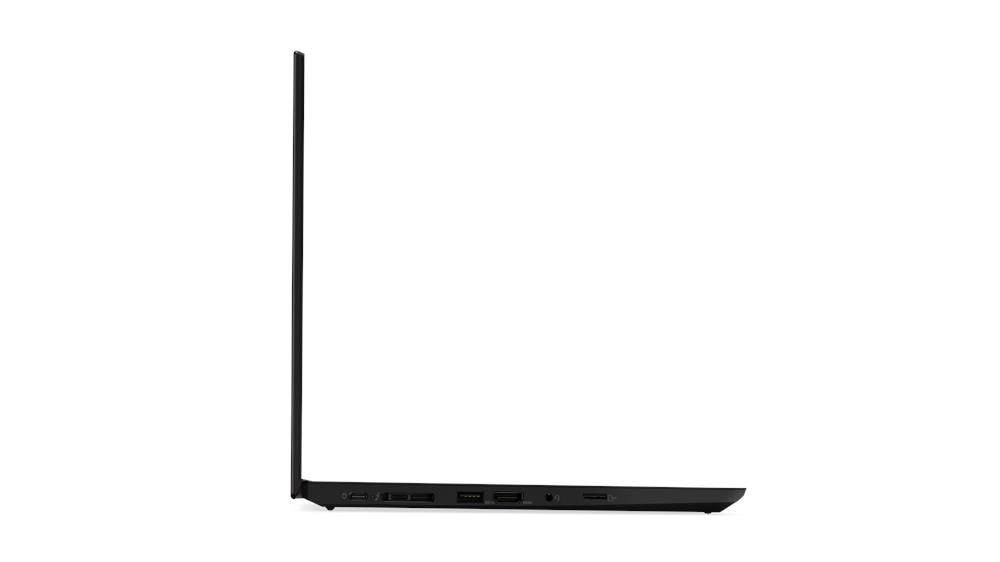

Lenovo ThinkPad P15s Gen 1

ThinkPad P15s Gen 1

Model ThinkPad P15s Gen 1Part no. 20T4002KUSEAN 195042302806

96 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory24 GB
Storage512 GB
GraphicsNVIDIA Quadro P520

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 24 GB
Storage: 512 GB
Graphics: NVIDIA Quadro P520

Brand: Lenovo
Category: Laptop
Model: ThinkPad P15s Gen 1
Part numbers: 20T4002KUS, 20T50000BR, 20T50001BR, 20T50002BR, 20T50003BR, 20T4002LUS +34 more
EAN / UPC: 195042302806, 195042056631, 195042056648, 195042056709 +56 more
Also known as: Lenovo ThinkPad P15s Gen 1 Intel® Core™ i7 i7-10610U Mobile workstation 39.6 cm (15.6") Full HD 24 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro P520 Wi-Fi 6 (802.11ax

Specifications

96 specifications in 19 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Colour gamut	45%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-10610U
Processor cores	4
Processor threads	8
Processor boost frequency	4.9 GHz
Processor frequency	1.8 GHz

Memory

Specification	Value
Internal memory	24 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	40 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA Quadro P520
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5

Audio

Specification	Value
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
Thunderbolt 3 ports quantity	1
Combo headphone/mic port	Yes
Docking connector	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	Portuguese

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery capacity	57 Wh

Power

Specification	Value
AC adapter power	65 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	1.75 kg
Width	365.8 mm
Depth	248 mm
Height	19.1 mm

Packaging content

Specification	Value
AC adapter included	Yes
