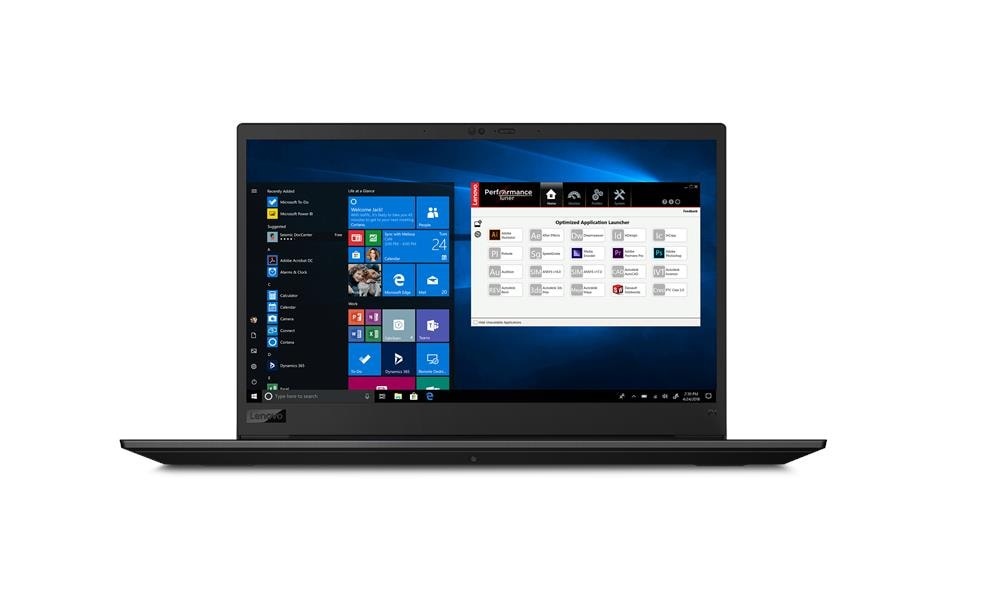

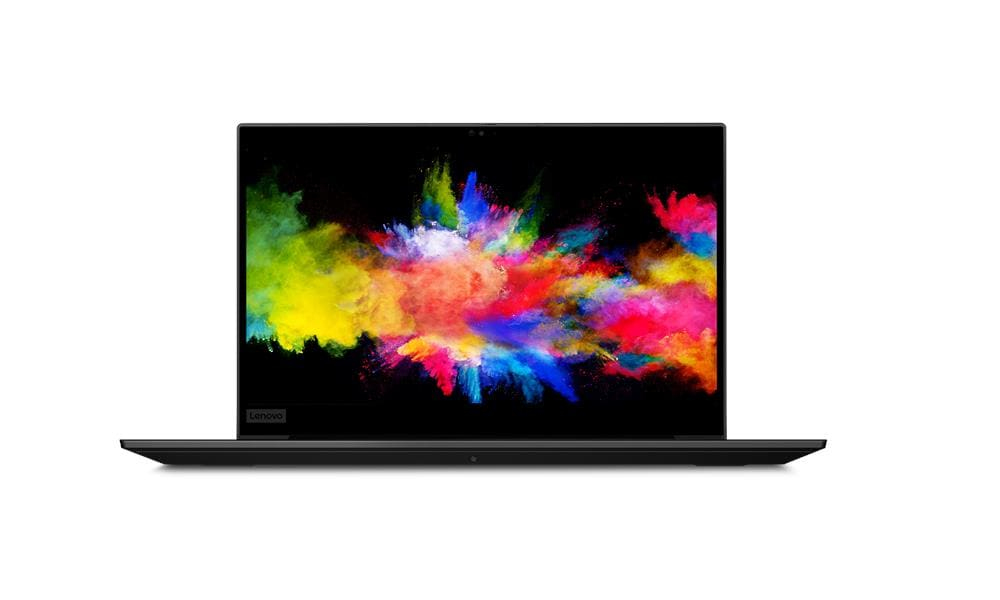

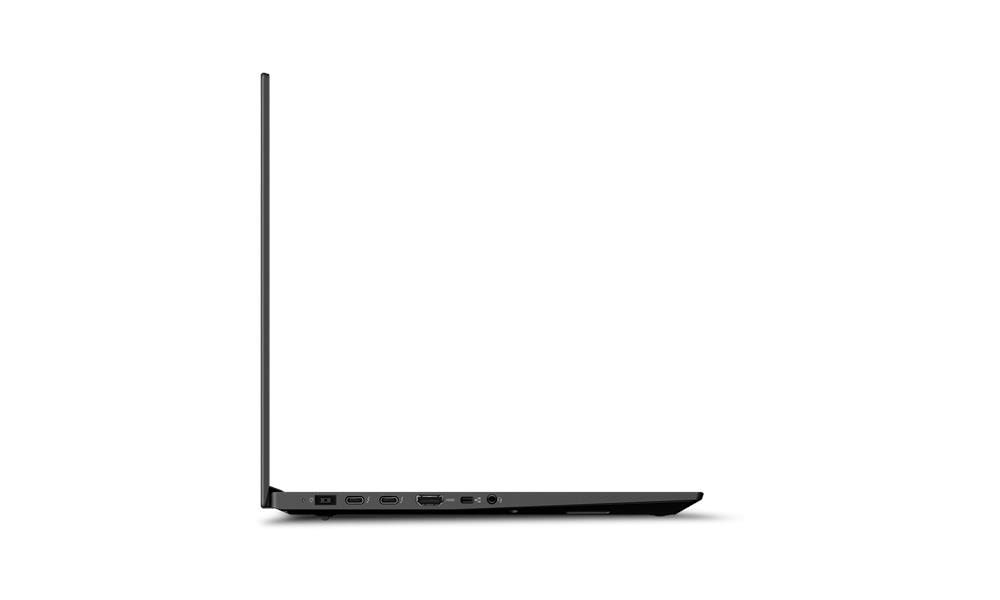

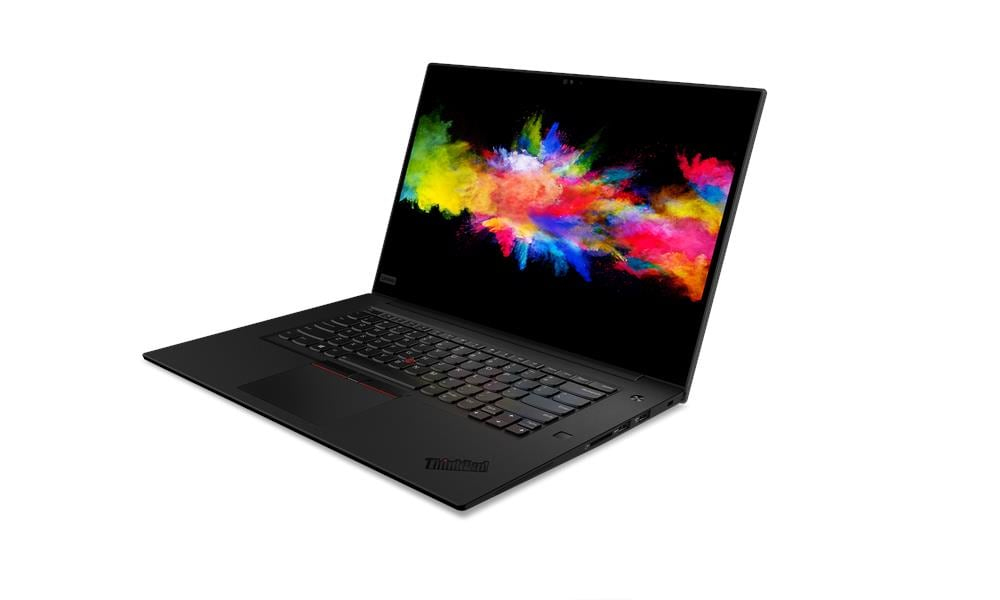

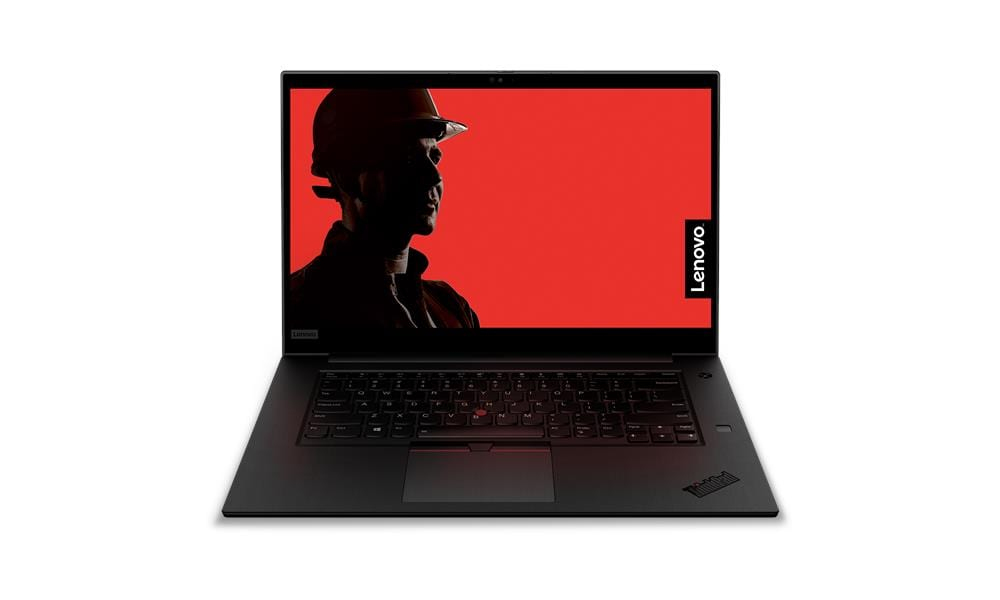

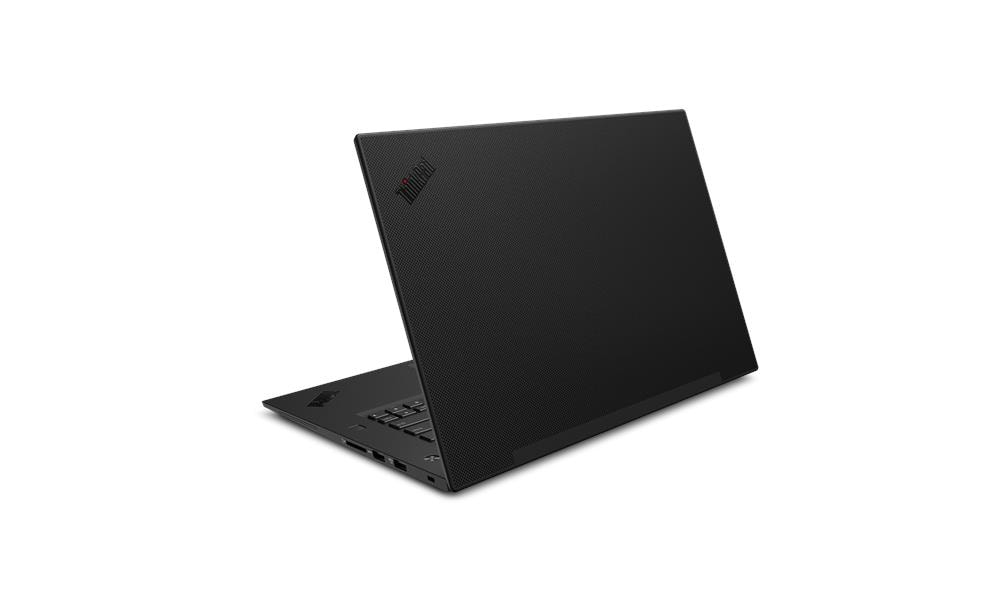

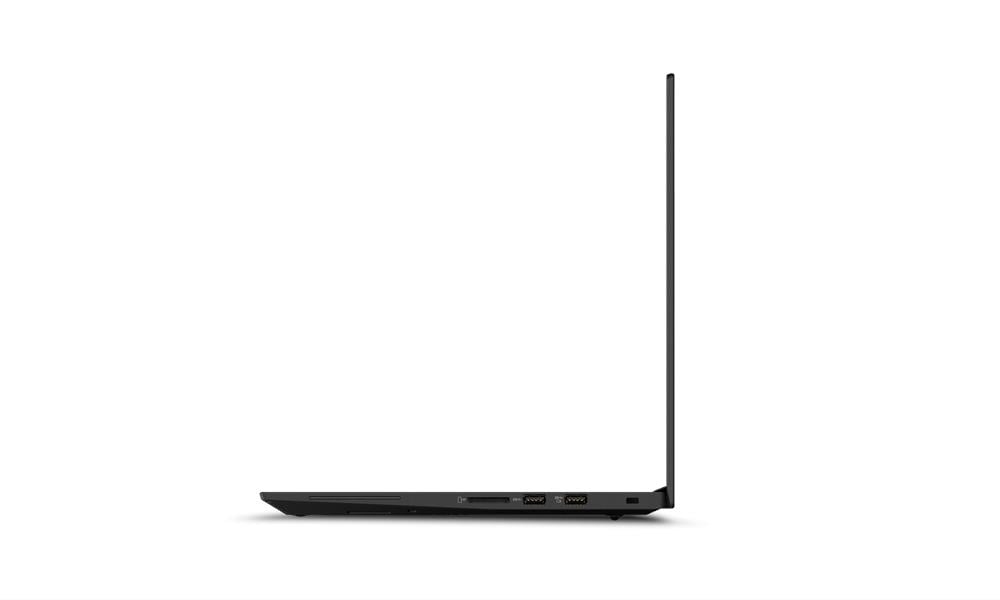

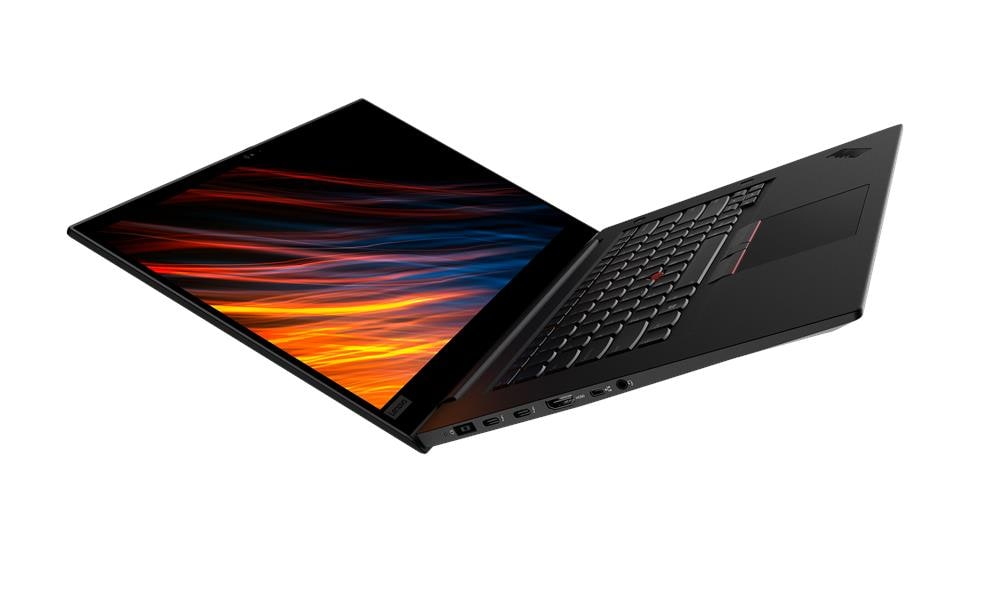

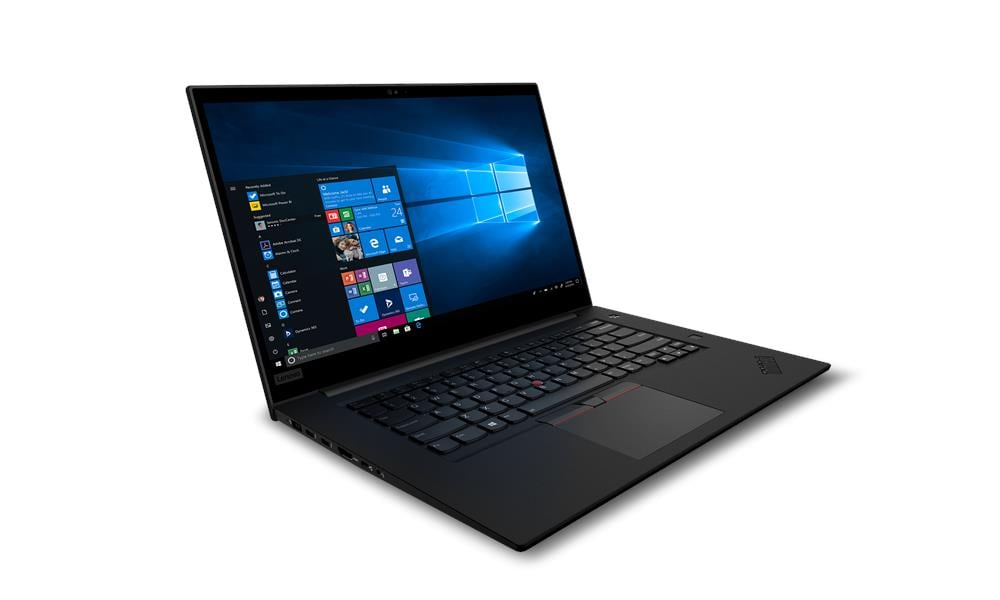

Lenovo ThinkPad P1 (2nd Gen)

ThinkPad P1 (2nd Gen)

Model ThinkPad P1 (2nd Gen)Part no. 20QT001XUSEAN 193386957706

96 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA Quadro T2000 Max-Q

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA Quadro T2000 Max-Q

Brand: Lenovo
Category: Laptop
Model: ThinkPad P1 (2nd Gen)
Part numbers: 20QT001XUS, 20QTS00J00, 20QU000VBR, 20QU000WBR, 20QU000XBR, 20QT0013US +34 more
EAN / UPC: 193386957706, 194552169305, 194552175955, 194552175962 +56 more
Also known as: Lenovo ThinkPad P1 (2nd Gen) Intel® Core™ i7 i7-9750H Mobile workstation 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro T2000 Max-Q Wi-Fi 6 (

Specifications

96 specifications in 19 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Colour name	Black, Paint
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	72%
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-9750H
Processor cores	6
Processor threads	12
Processor boost frequency	4.5 GHz
Processor frequency	2.6 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA Quadro T2000 Max-Q
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
NVIDIA Max-Q	Yes

Audio

Specification	Value
Audio chip	Synaptic CX11880
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX200
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel® CM246

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	English

Battery

Specification	Value
Battery capacity	80 Wh

Power

Specification	Value
AC adapter power	135 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	1.7 kg
Width	361.8 mm
Depth	245.7 mm
Height	18.4 mm

Packaging content

Specification	Value
AC adapter included	Yes
