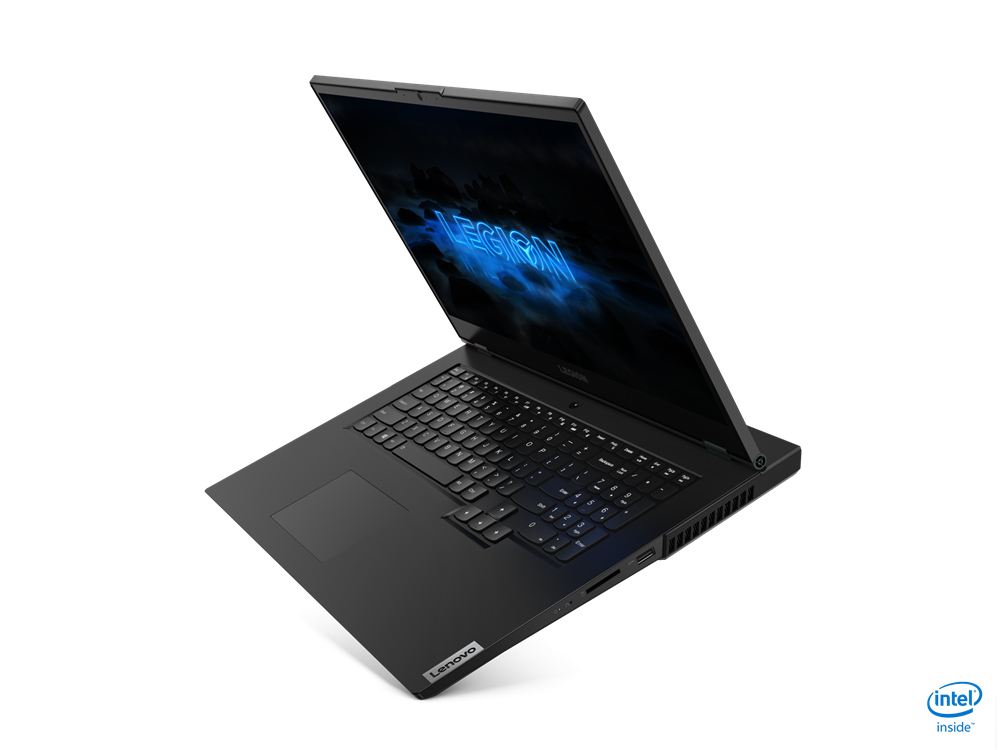

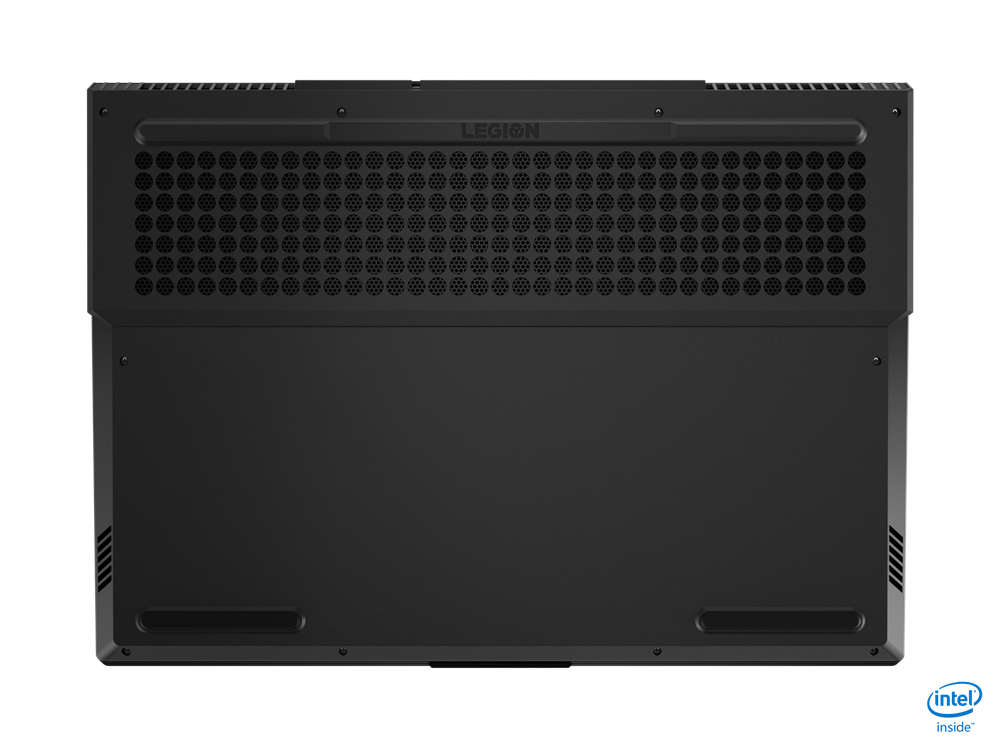

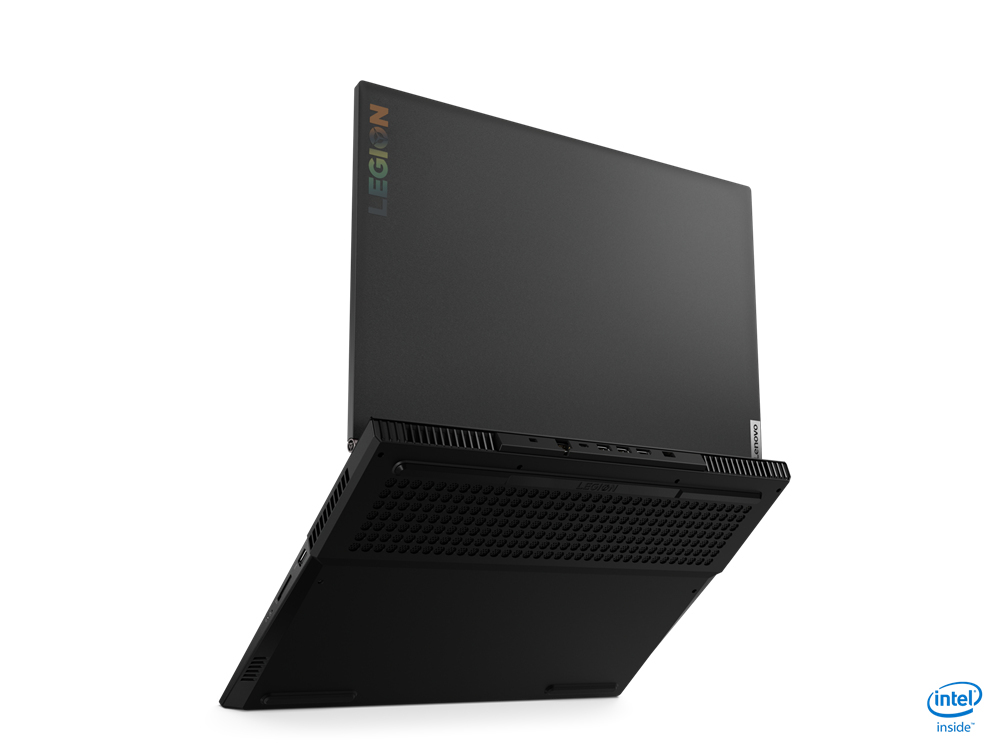

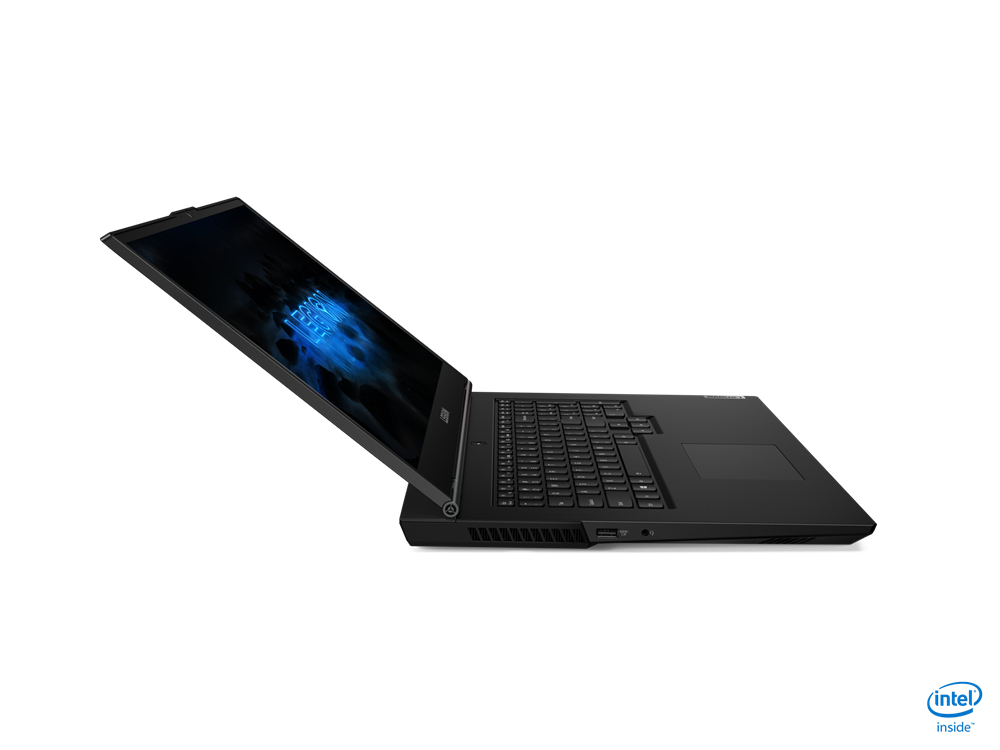

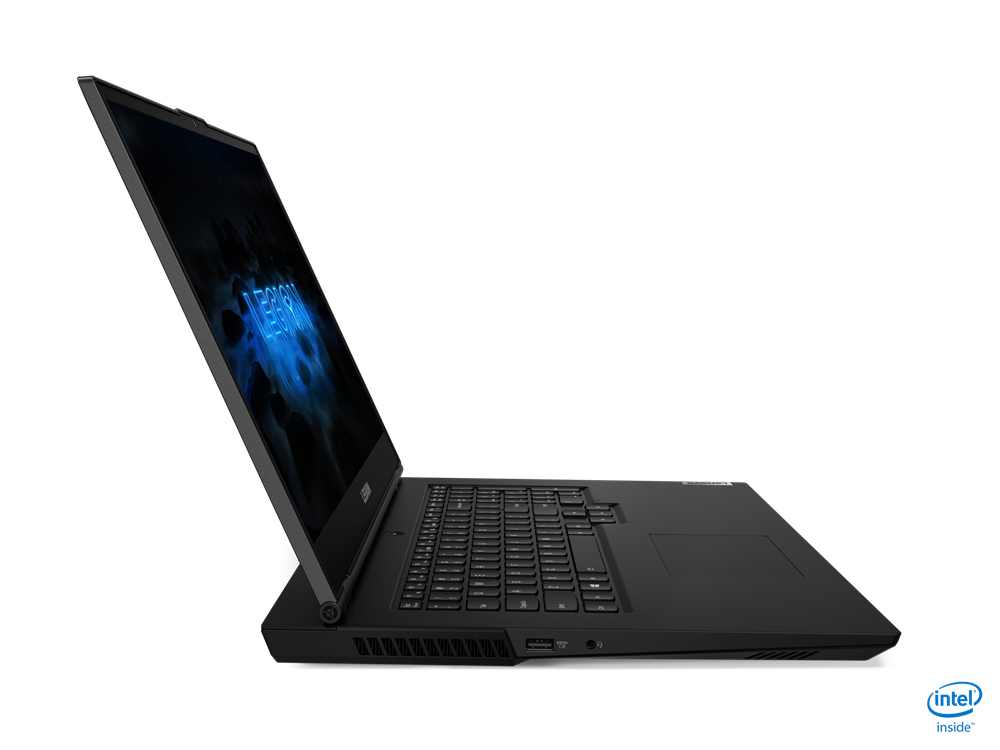

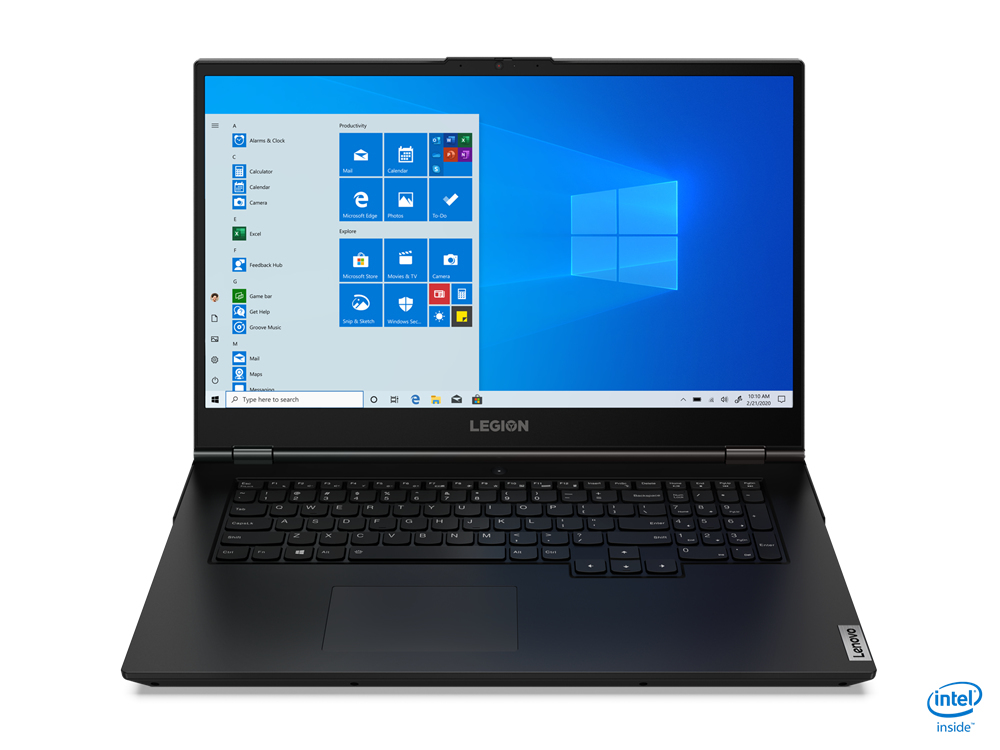

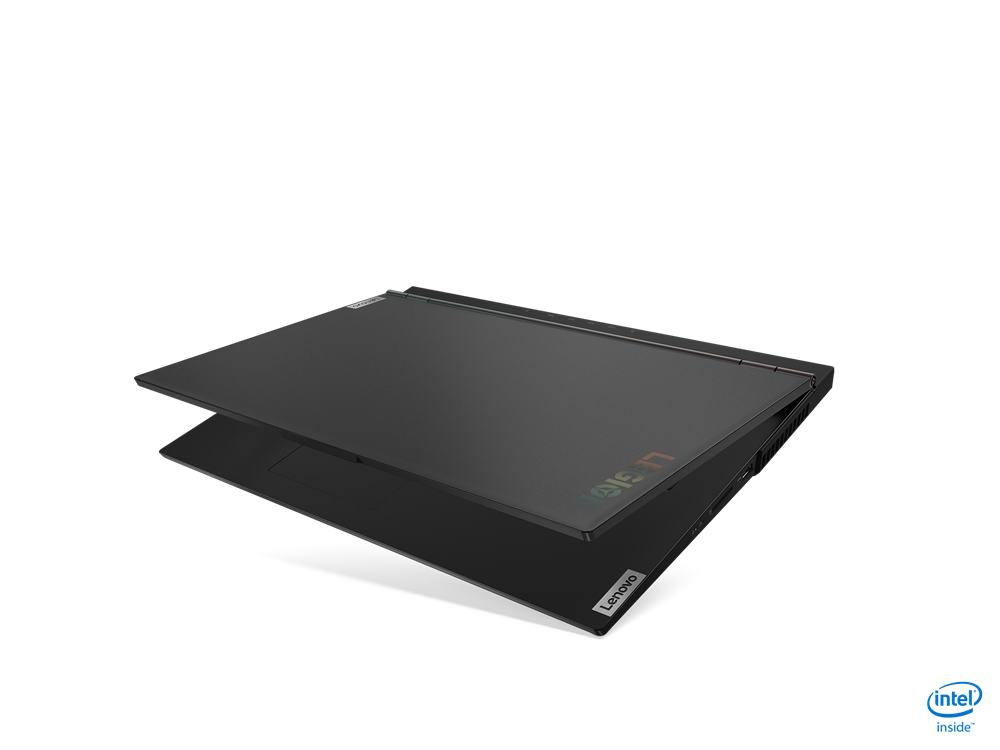

Legion 5 17IMH05H
Model Legion 5 17IMH05HPart no. 81Y80057USEAN 195042880892
138 specifications Checked today
- Display43.9 cm (17.3")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA® GeForce RTX™ 2060
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® GeForce RTX™ 2060
- Brand
- Lenovo
- Category
- Laptop
- Model
- Legion 5 17IMH05H
- Part numbers
- 81Y80057US, 81Y8002WGE, 81Y8002SMH, 81Y8002VMH, 81Y8003YMH, 81Y8003WMB +34 more
- EAN / UPC
- 195042880892, 194778959445, 194778947572, 194778958882 +48 more
- Also known as
- Lenovo Legion 5 17IMH05H Intel® Core™ i7 i7-10750H Laptop 43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11ax) Windo
Specifications
138 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Maximum refresh rate | 144 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Processor frequency | 2.6 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2933 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9BC4 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3287 |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in subwoofer | No |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 1 MP |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| WWAN | Not installed |

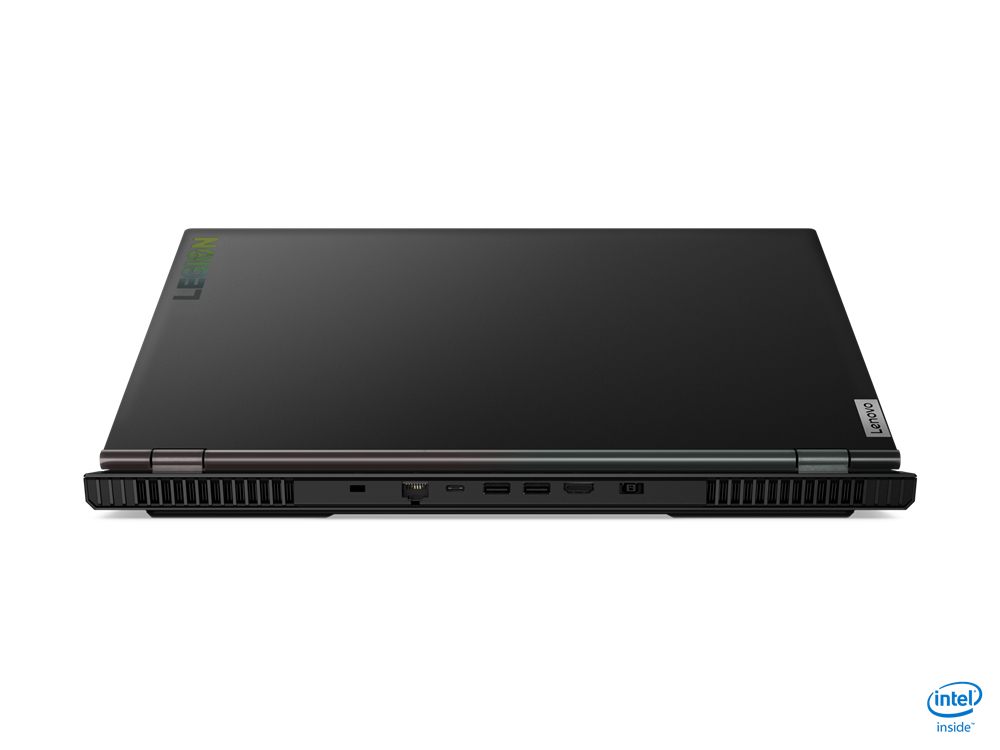

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |

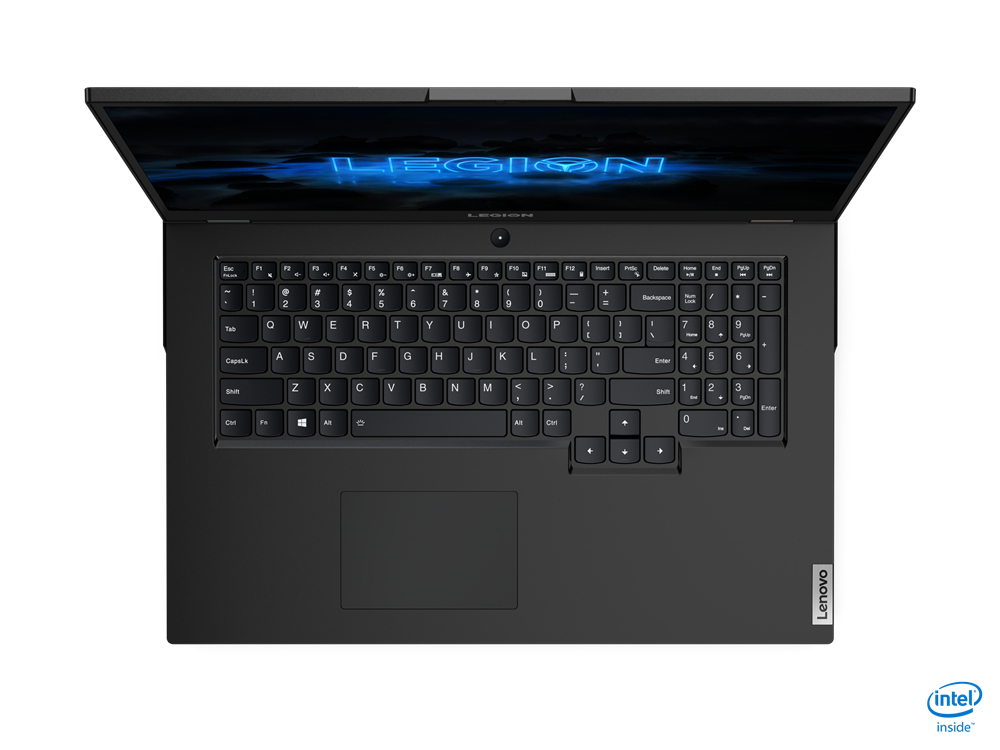

Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 201837 |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 80 Wh |
| Battery life (max) | 10 h |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
Power
| Specification | Value |
|---|---|
| AC adapter power | 230 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ErP lot3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.98 kg |
| Width | 398.6 mm |
| Depth | 290 mm |
| Height (front) | 2.43 cm |
| Height (rear) | 2.62 cm |
