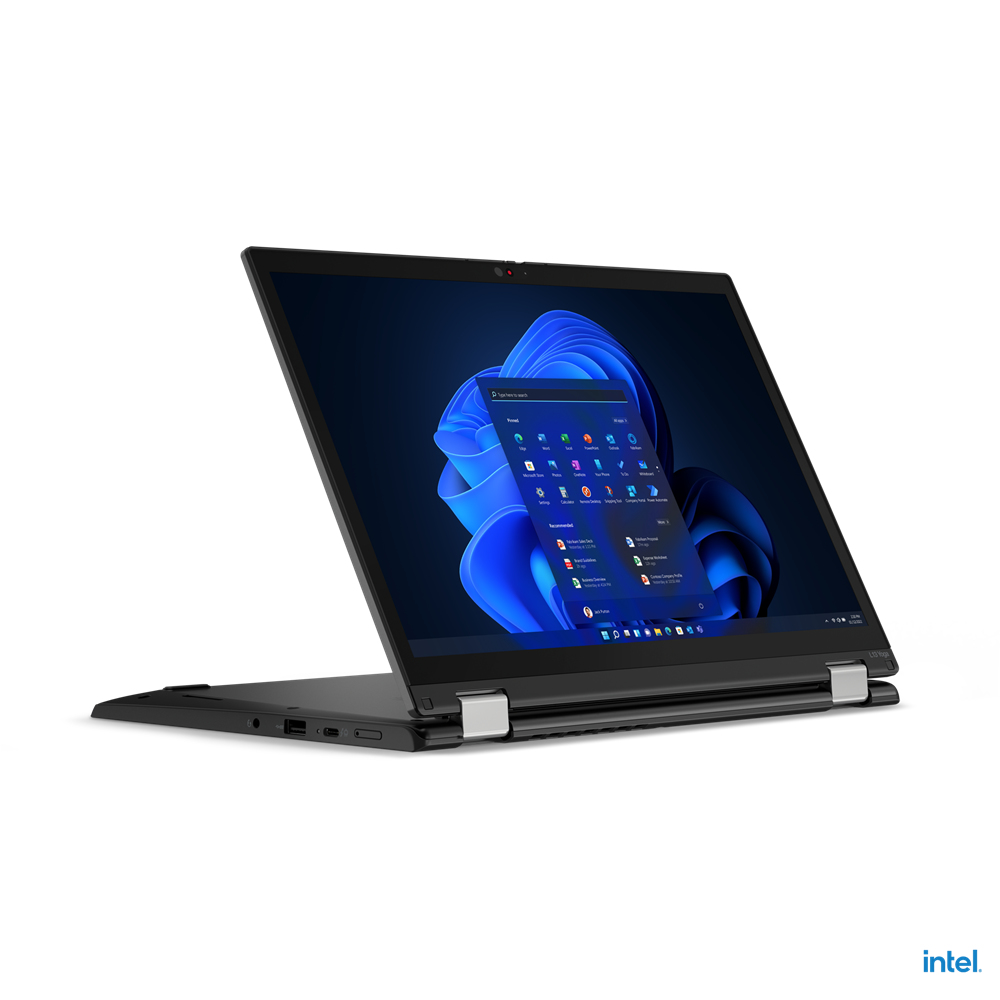

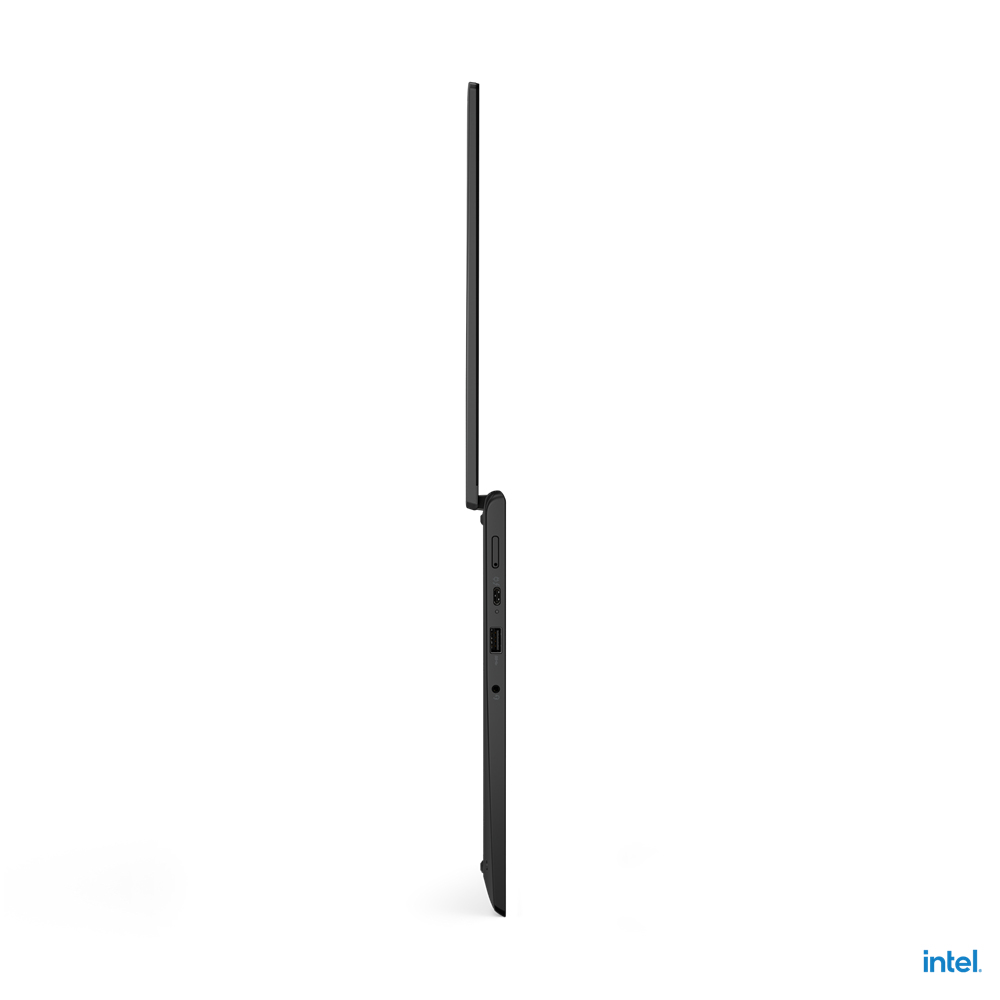

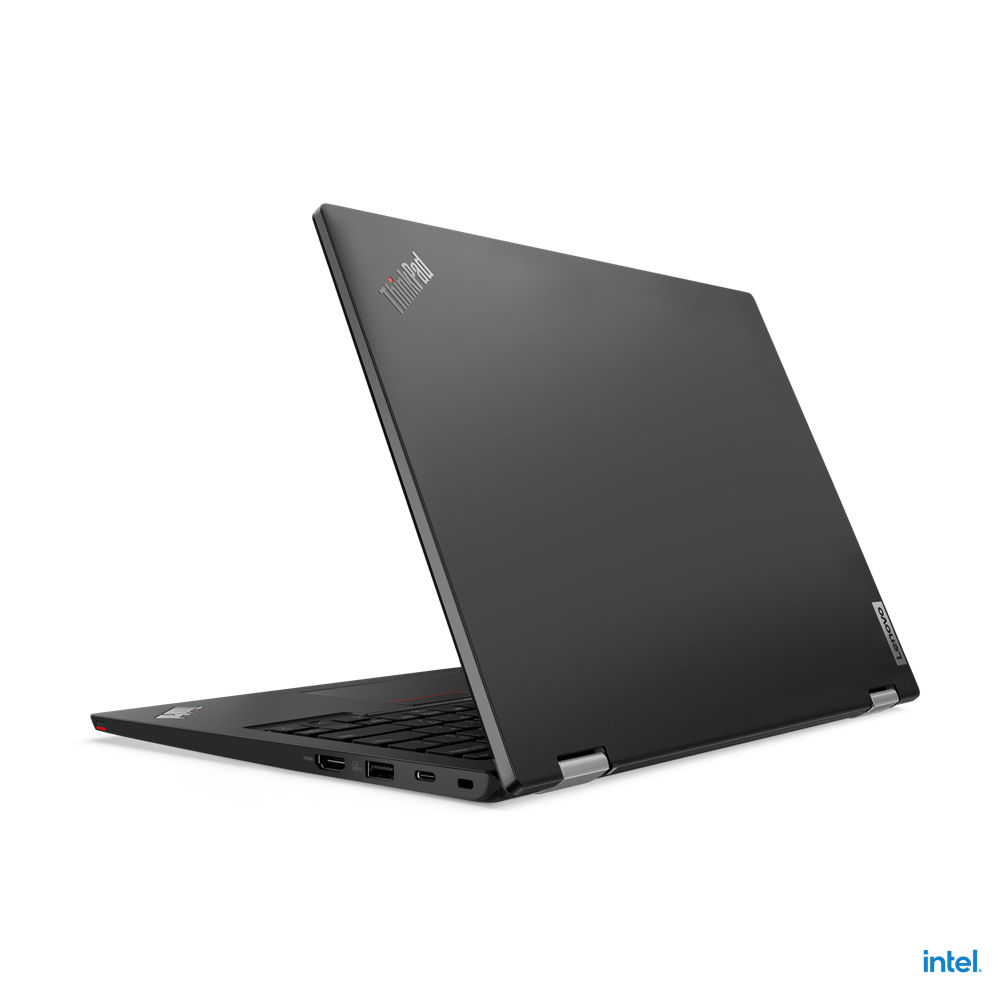

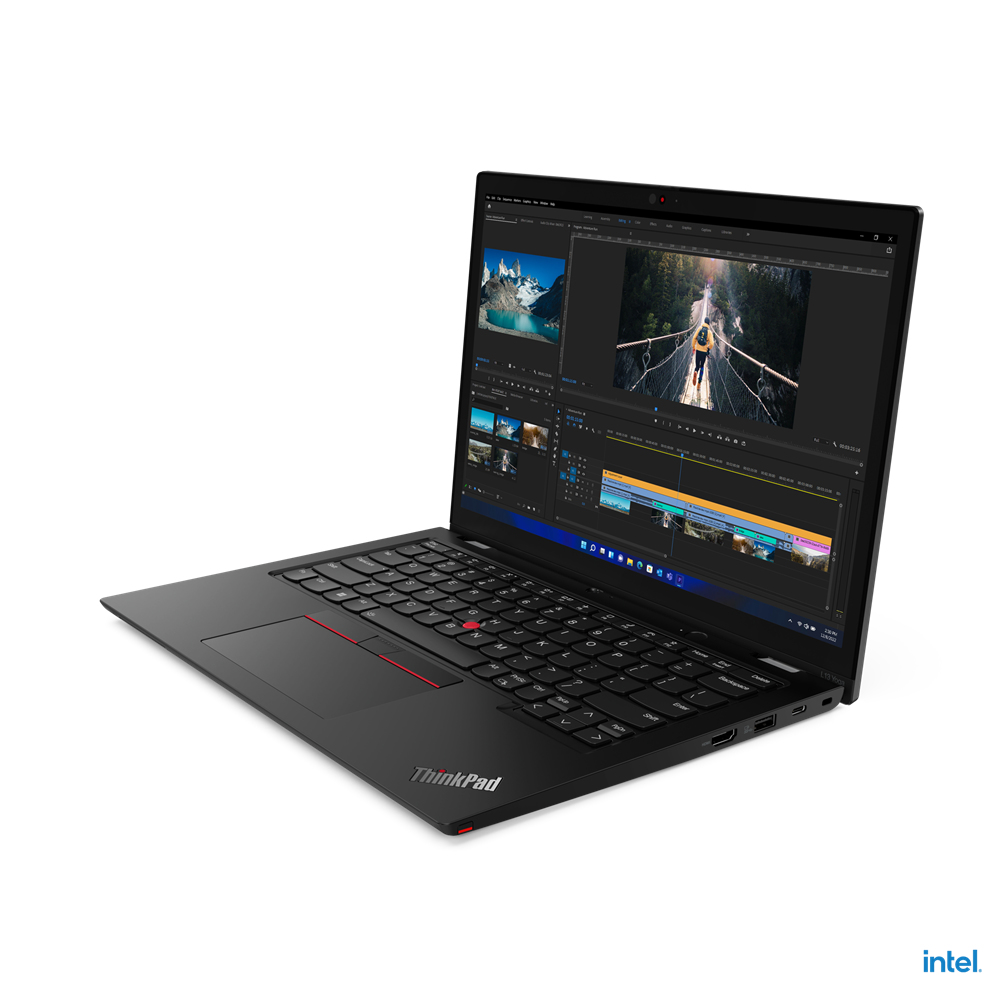

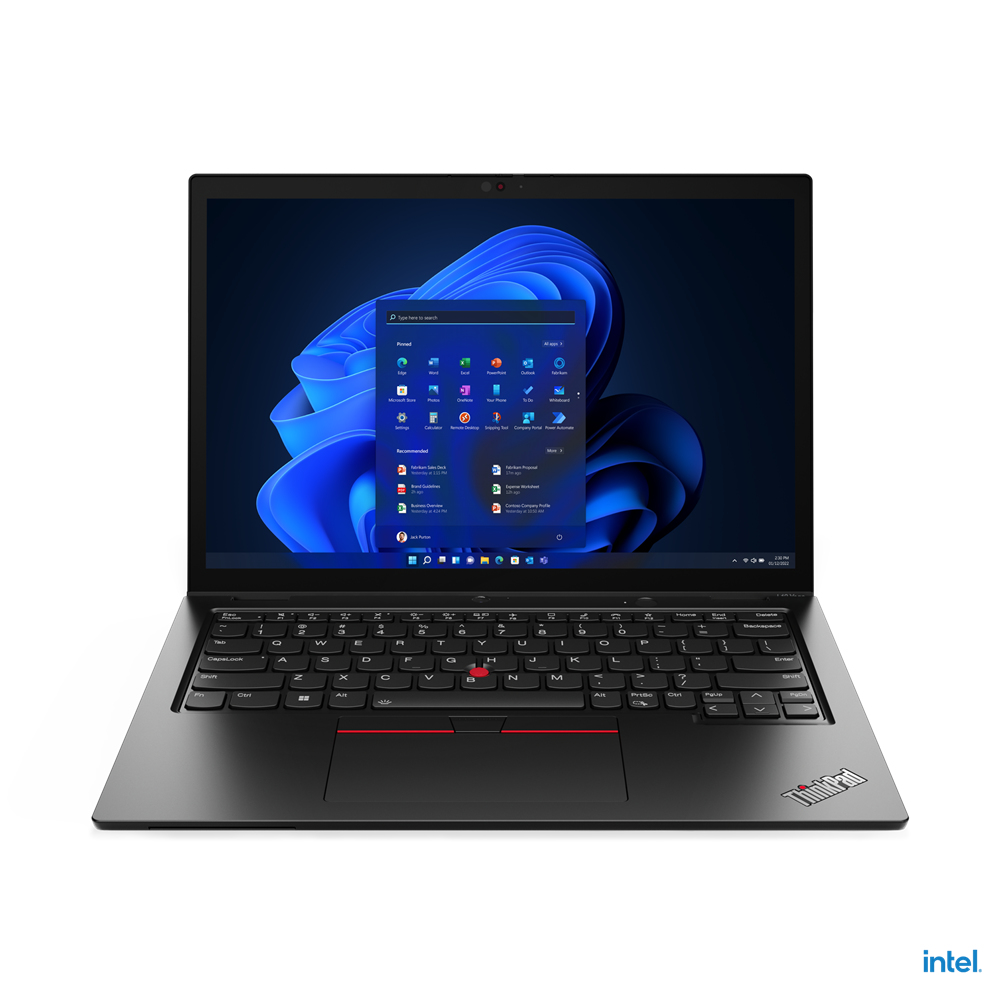

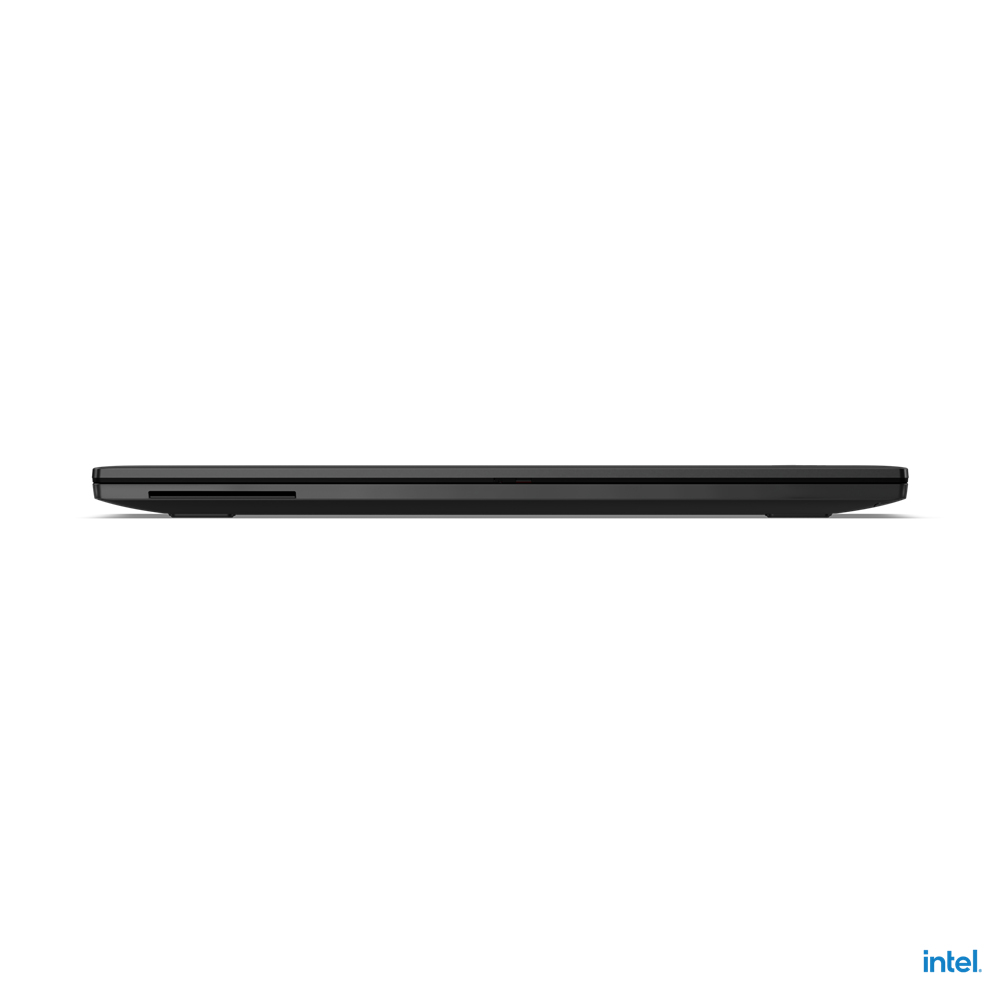

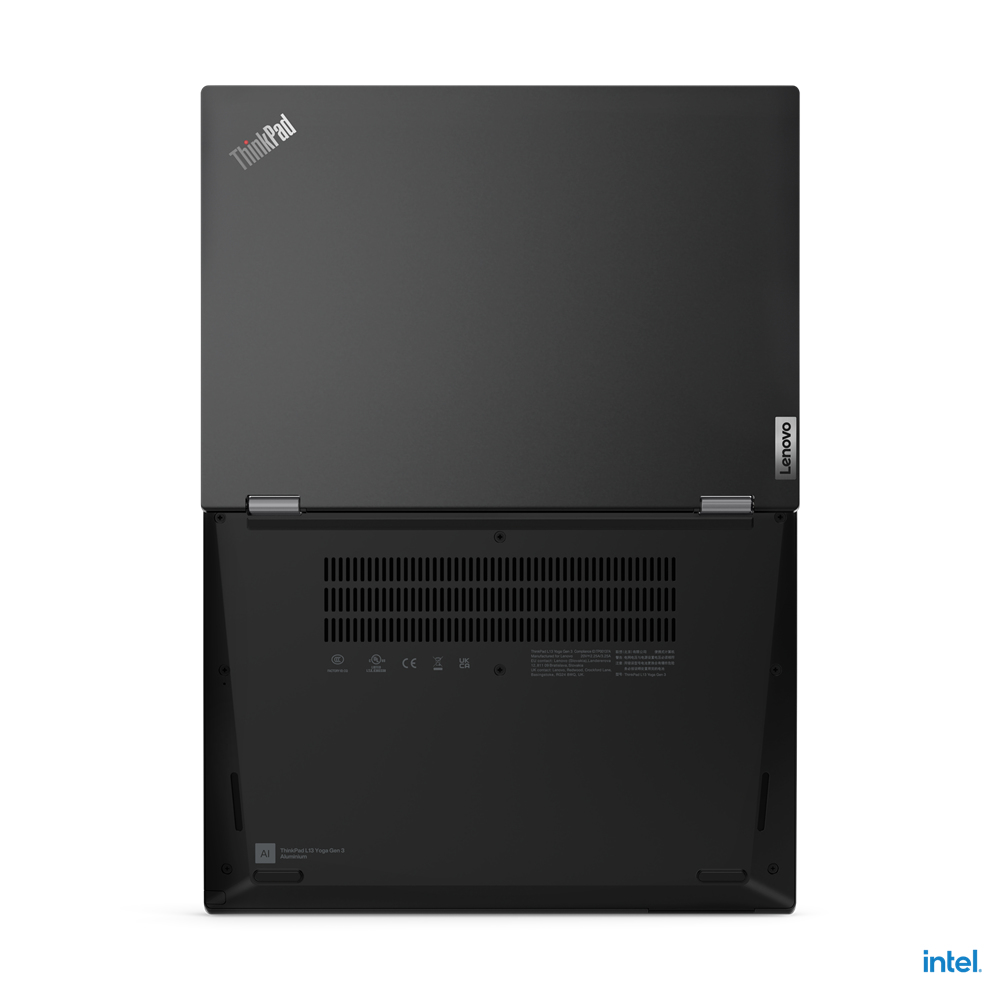

L13 Yoga
Model L13 YogaPart no. 21AD0005AU-HYBRIDDOCKEAN 195477511491
113 specifications Checked today
- Display33.8 cm (13.3")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- Laptop
- Model
- L13 Yoga
- Part numbers
- 21AD0005AU-HYBRIDDOCK, 21AD0009AU-USBCDOCK, 21AD0008AU-USBCDOCK, 21AD0004AU-3YR, 21AD0009AU-HYBRIDDOCK, 21AD0008AU-HYBRIDDOCK +34 more
- EAN / UPC
- 195477511491, 195890023328, 196119664063, 197529215012 +28 more
- Also known as
- Lenovo ThinkPad L13 Yoga Intel® Core™ i5 i5-1235U Hybrid (2-in-1) 33.8 cm (13.3") Touchscreen WUXGA 16 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pr
Specifications
113 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Black |
| Colour name | Thunder black |
| Form factor | Convertible (Folder) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| RGB colour space | sRGB |
| Contrast ratio (typical) | 1000:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-1235U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1744 |
| Configurable TDP-down | 12 W |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| M.2 SSD size | 2242 (22 x 42 mm) |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3287 |
| Audio system | Dolby Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Keyboard language | US English |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 46 Wh |
Power
| Specification | Value |
|---|---|
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor, SSD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
Certificates
| Specification | Value |
|---|---|
| Certification | EPEAT™ Gold ENERGY STAR® 8.0 ErP Lot 3 TCO Certified 9.0 RoHS MIL-STD-810H |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.32 kg |
| Width | 305 mm |
| Depth | 218 mm |
| Height | 17.1 mm |
