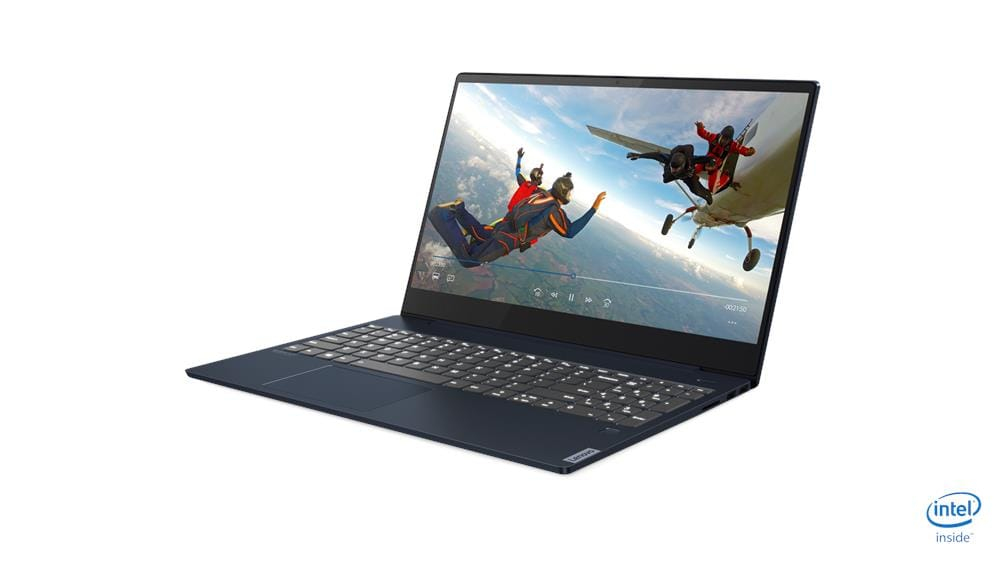

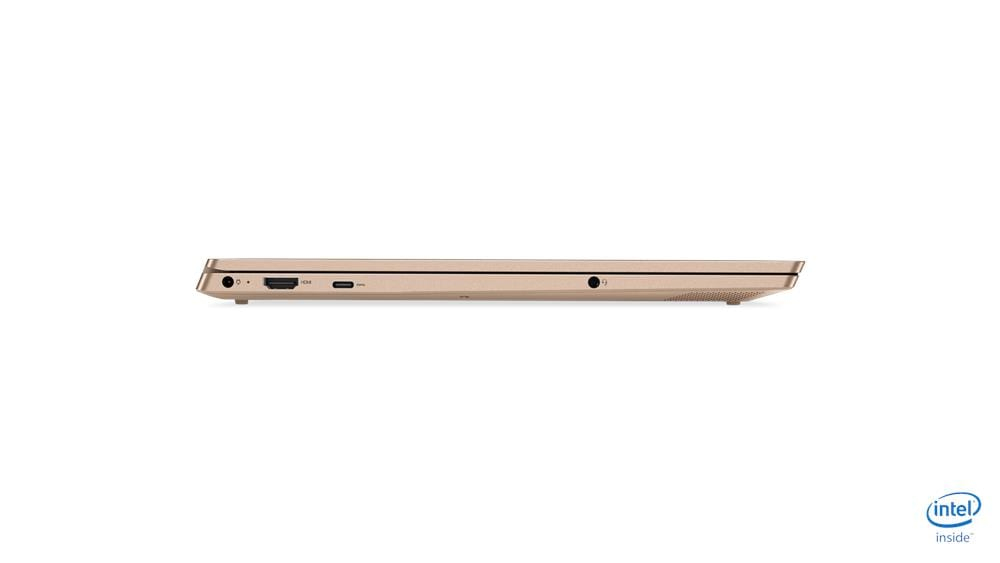

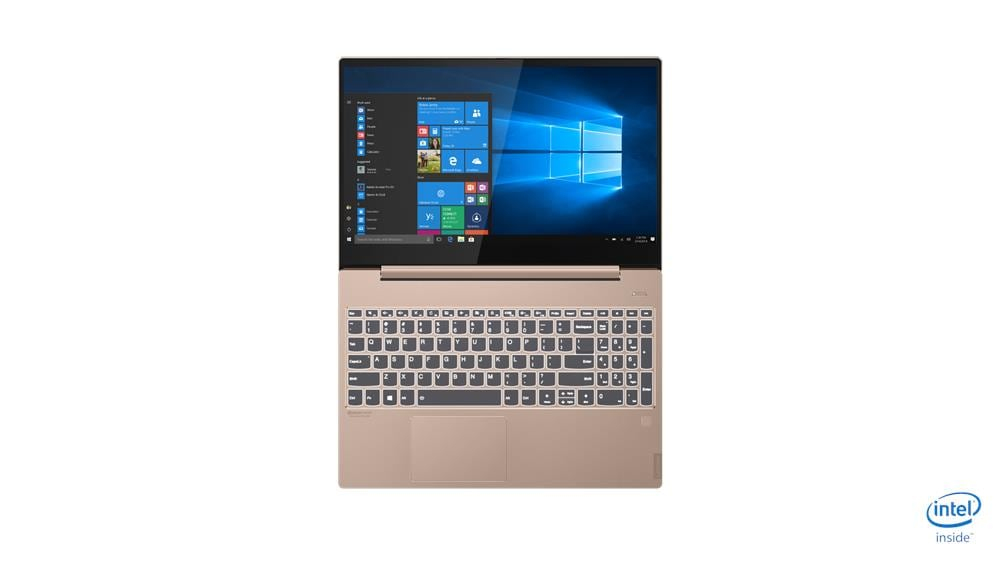

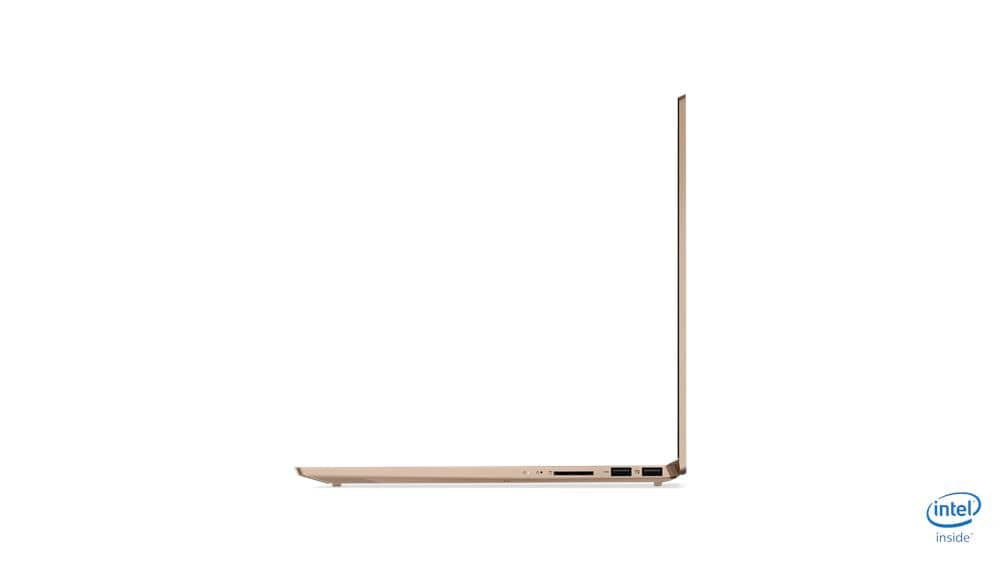

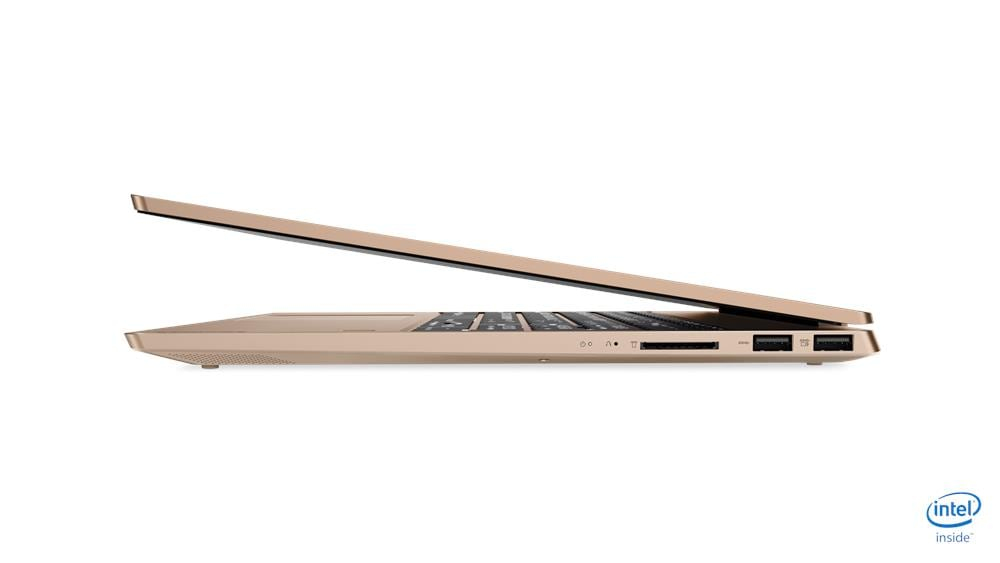

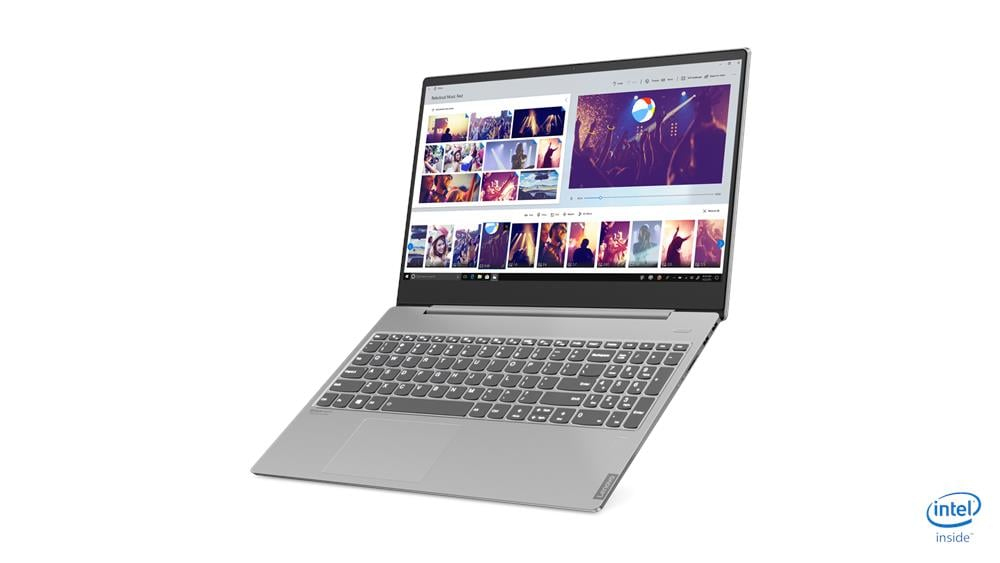

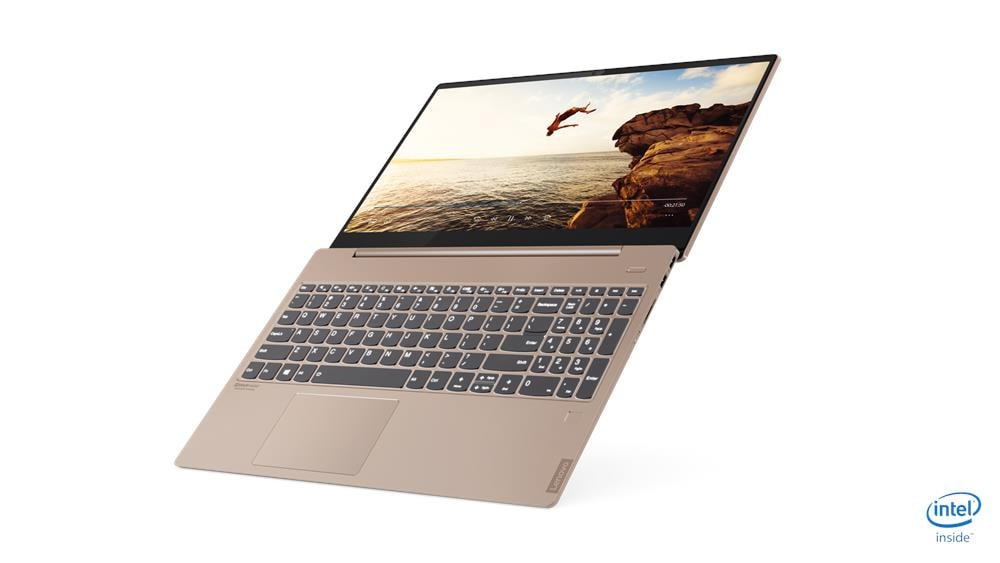

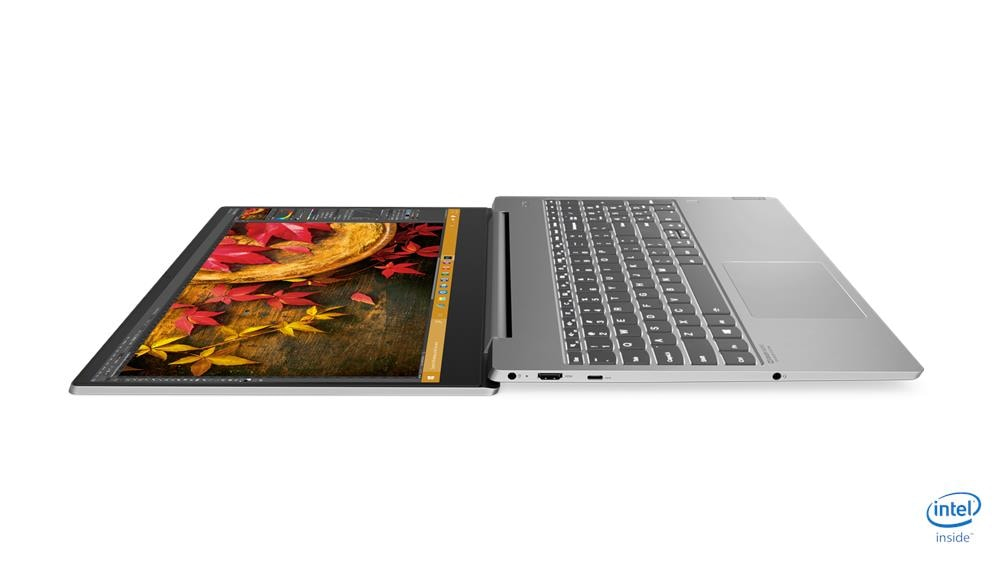

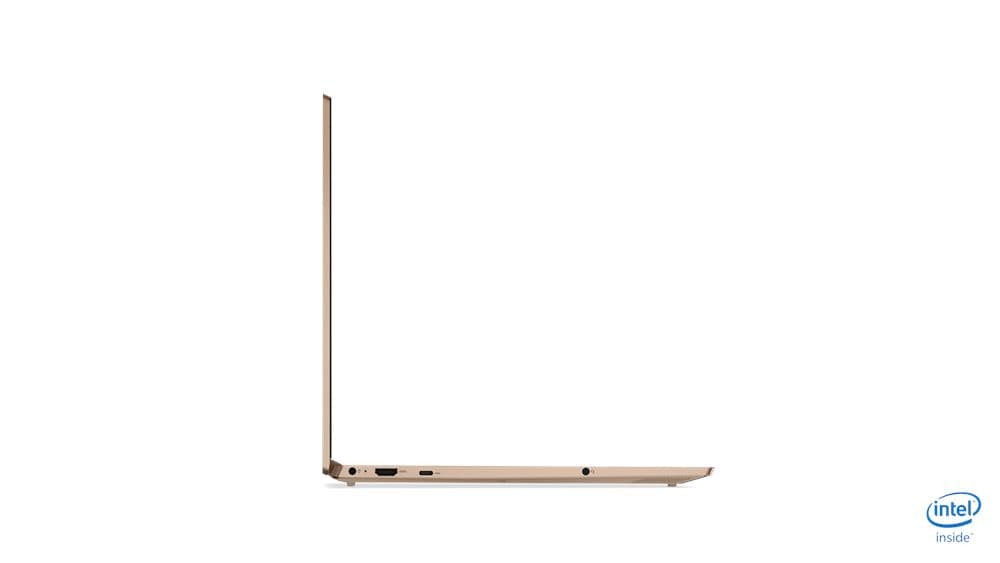

Lenovo ideapad S540-15IML

ideapad S540-15IML

Model ideapad S540-15IMLPart no. 81NG009WHVEAN 4580550737381

96 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory12 GB
Storage1.25 TB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 12 GB
Storage: 1.25 TB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ideapad S540-15IML
Part numbers: 81NG009WHV, 81NG001VCL, 81NG001XUK, 81NG000YGE, 81NG0010GE, 81NG001WUK +34 more
EAN / UPC: 4580550737381, 194552212865, 194552210236, 193638879435 +56 more
Also known as: Lenovo IdeaPad S540-15IML Intel® Core™ i7 i7-10510U Laptop 39.6 cm (15.6") Full HD 12 GB DDR4-SDRAM 1.25 TB HDD+SSD Wi-Fi 5 (802.11ac) Windows 10 Home Blue Span

Specifications

96 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Abyss Blue
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Aluminium

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Colour gamut	45%
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-10510U
Processor cores	4
Processor threads	8
Processor boost frequency	4.9 GHz
Processor frequency	1.8 GHz

Memory

Specification	Value
Internal memory	12 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	12 GB

Storage

Specification	Value
Total storage capacity	1.25 TB
Storage media	HDD+SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	5400 RPM
HDD size	2.5"
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.2
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	Spanish

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	Spanish
Trial software	Office

Battery

Specification	Value
Battery capacity	52.5 Wh

Power

Specification	Value
AC adapter power	65 W

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,RoHS

Weight & dimensions

Specification	Value
Weight	1.8 kg
Width	358 mm
Depth	245 mm
Height	16.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
