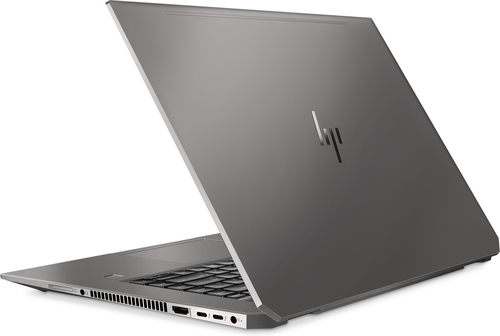

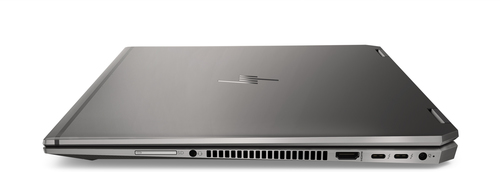

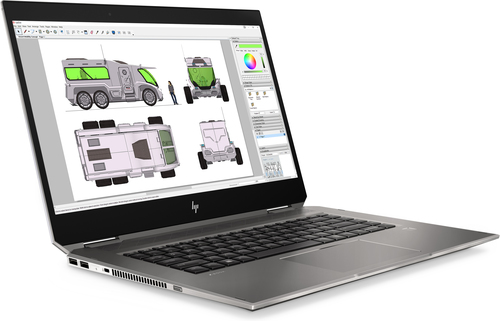

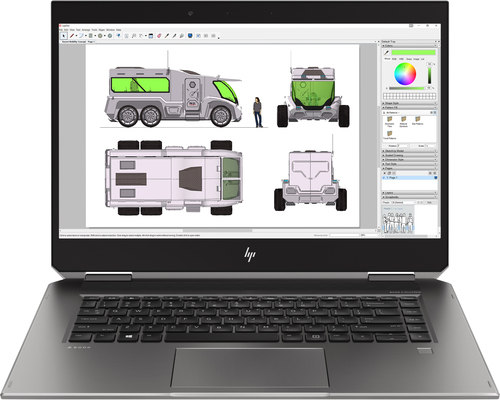

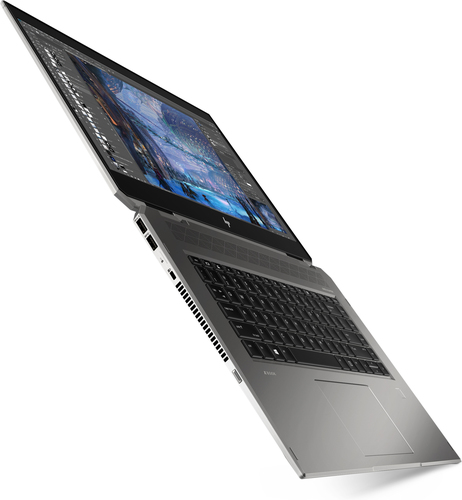

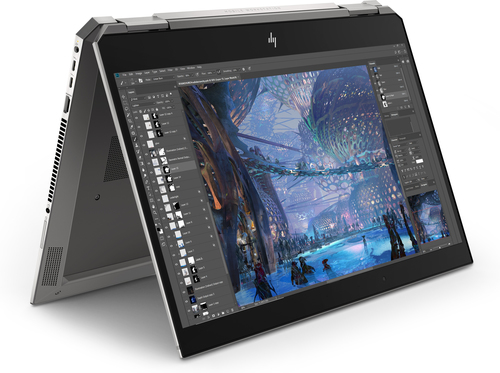

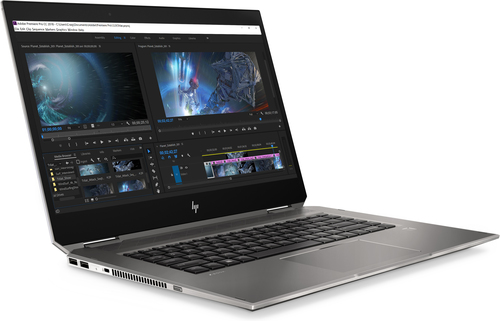

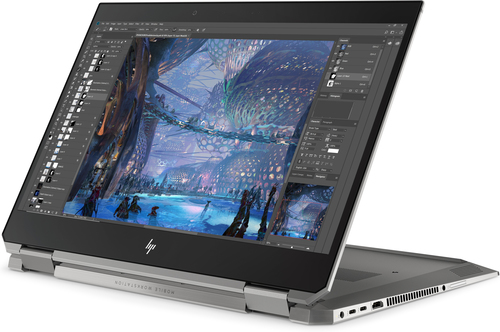

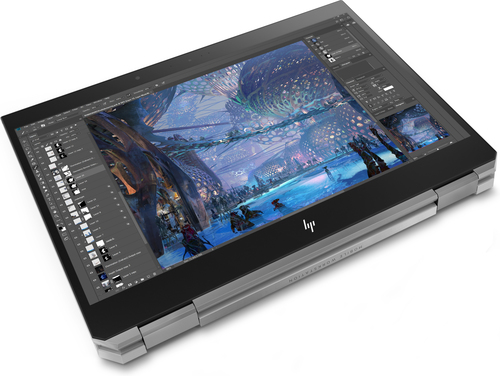

ZBook Studio x360 G5 Convertible Workstation

Model ZBook Studio x360 G5 Convertible WorkstationPart no. 1B9D8USEAN 194441849356

164 specifications Checked today

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i9
Memory16 GB
Storage512 GB
GraphicsNVIDIA Quadro T2000

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i9
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA Quadro T2000

Brand: HP
Category: Laptop
Model: ZBook Studio x360 G5 Convertible Workstation
Part numbers: 1B9D8US, 6TW63EA, 1A1L9UP, 152B9UP, 1S1G9EP
EAN / UPC: 194441849356, 194441845914, 194441848922, 194441848953 +16 more
Also known as: HP ZBook Studio x360 G5 Convertible Workstation Intel® Core™ i9 i9-9880H Mobile workstation 39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 512 GB SSD

Specifications

164 specifications in 21 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Convertible (Folder)
Intel® vPro™ Platform Eligibility	No
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	Yes
HD type	4K Ultra HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display glass type	Gorilla Glass
Display bezel technology	Micro-Edge
Display brightness	600 cd/m²
Colour gamut	100%
Display diagonal (metric)	39.6 cm
Dual-screen	No
RGB colour space	Adobe RGB
sRGB coverage (typical)	100%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	9th gen Intel® Core™ i9
Processor model	i9-9880H
Processor cores	8
Processor threads	16
Processor boost frequency	4.8 GHz
Processor frequency	2.3 GHz
System bus rate	8 GT/s
Processor cache	16 MB
Processor cache type	L3
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	1x SO-DIMM
ECC	No

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD memory type	TLC
NVMe	Yes
SSD interface	NVMe
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA Quadro T2000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E9B

Audio

Specification	Value
Audio system	Bang & Olufsen
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera signal format	720p
Infrared (IR) camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel® CM246

Keyboard

Specification	Value
Pointing device	Clickpad
Numeric keypad	No
Island-style keyboard	Yes
Spill-resistant keyboard	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	192987
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes

Brand-specific features

Specification	Value
HP JumpStart	Yes
HP speaker type	HP Dual Speakers
HP Recovery Manager	Yes
HP Support Assistant	Yes
HP Smart AC Adapter	Yes
HP Security tools	HP Device Access Manager, HP FingerPrint Sensor, HP Password Manager, HP Power On Authentication, HP Security Manager, HP Sure Click, HP System Software Manager (SSM), HP Manageability Integration, HP Secure Disk Erase
HP Software provided	HP ePrint + JetAdvantage, HP Hotkey Support, HP Performance Advisor, HP Velocity, HP WorkWise, HP LAN-WLAN Protection, HP Client Security Suite
HP segment	Business

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	6
Battery capacity	95.6 Wh

Power

Specification	Value
AC adapter power	150 W

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes
Password protection type	Power on

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.26 kg
Width	360 mm
Depth	254 mm
Height (front)	8.8 mm
Height (rear)	1.87 cm

Packaging content

Specification	Value
AC adapter included	Yes
