745 G6 (5x 9VZ53EA)
Model 745 G6 (5x 9VZ53EA)Part no. B9VZ53EA03
83 specifications Checked today
- Display35.6 cm (14")
- Resolution1920 x 1080 pixels
- ProcessorAMD Ryzen™ 5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen™ 5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- HP
- Category
- Laptop
- Model
- 745 G6 (5x 9VZ53EA)
- Part number
- B9VZ53EA03
- Also known as
- HP EliteBook 745 G6 (5x 9VZ53EA) AMD Ryzen™ 5 3500U Laptop 35.6 cm (14") Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Silver
Specifications
83 specifications in 17 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Silver |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 3000 Series |
| Processor model | 3500U |
| Processor cores | 4 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon Vega 8 |
Audio
| Specification | Value |
|---|---|
| Audio system | Bang & Olufsen |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 3 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | Yes |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |

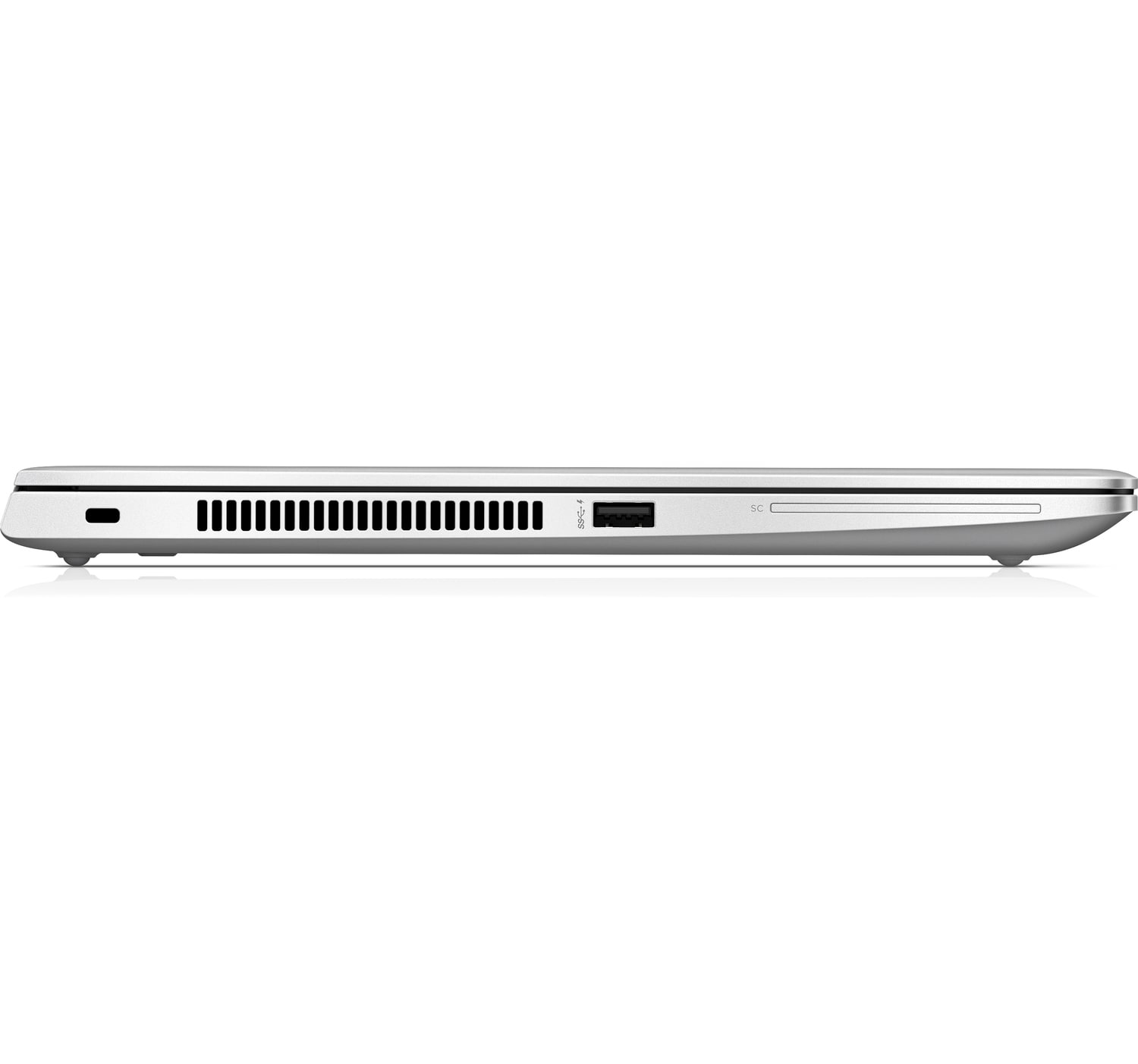

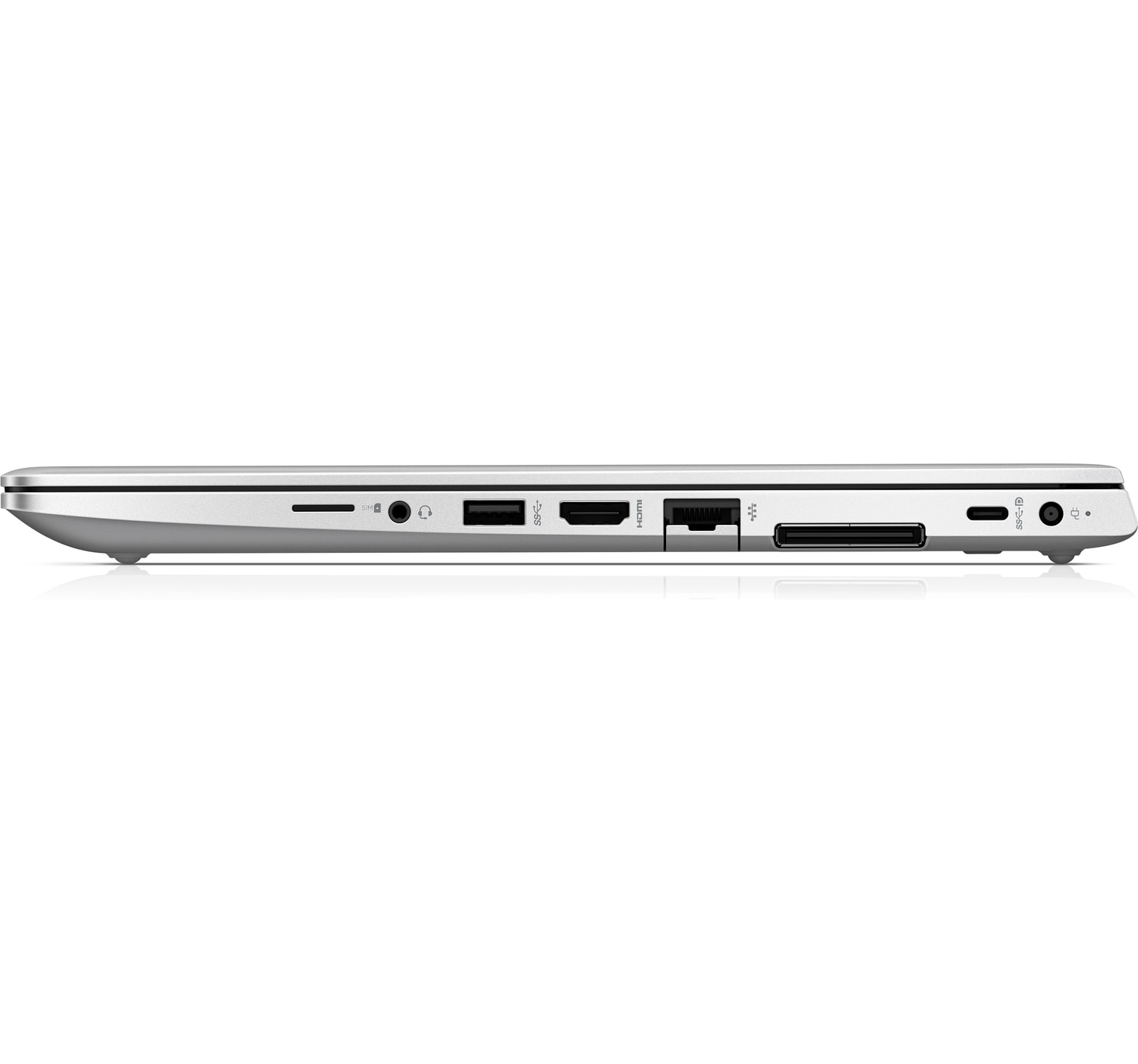

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
Performance
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Clickpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 50 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Smart card reader | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.53 kg |
| Width | 326 mm |
| Depth | 234.3 mm |
| Height | 17.9 mm |
