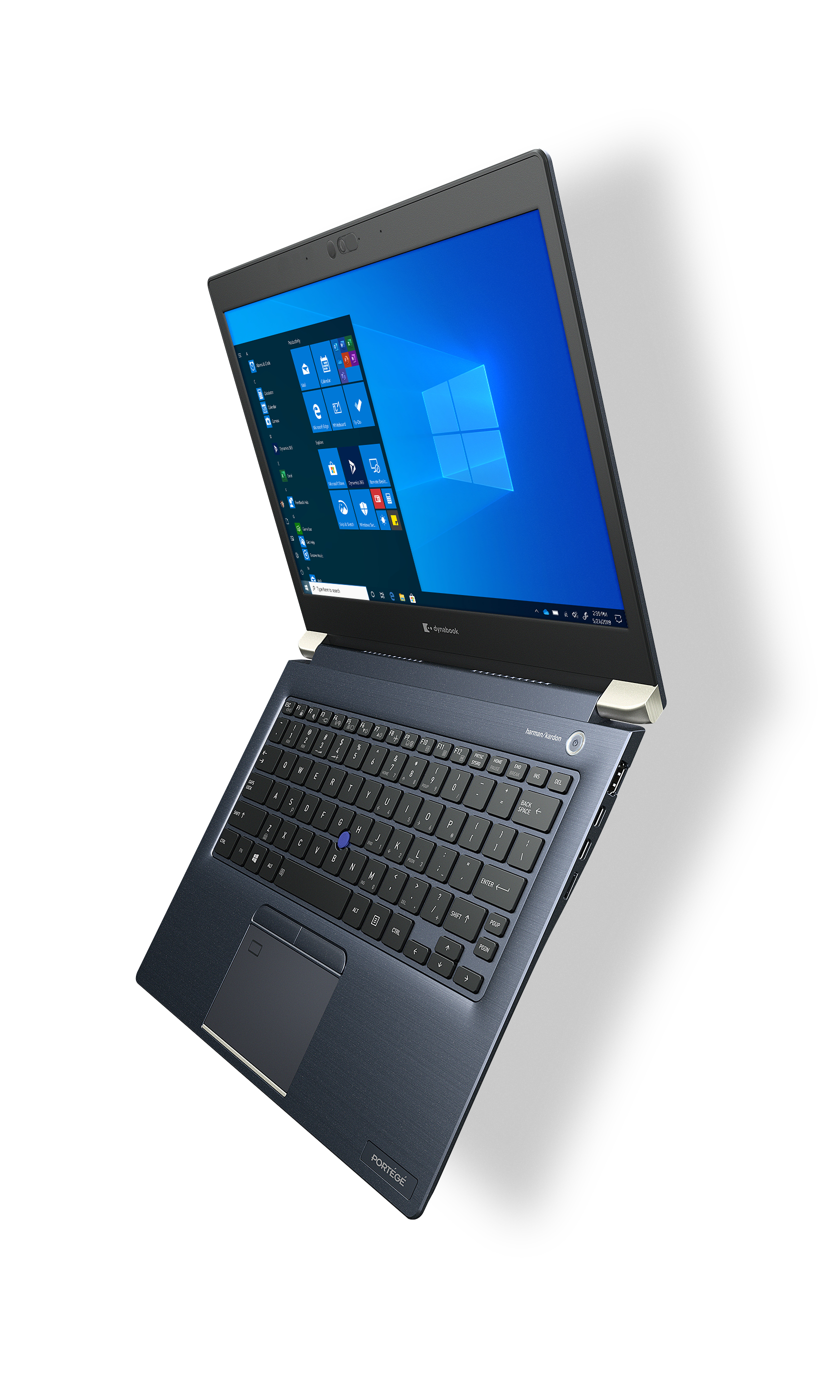

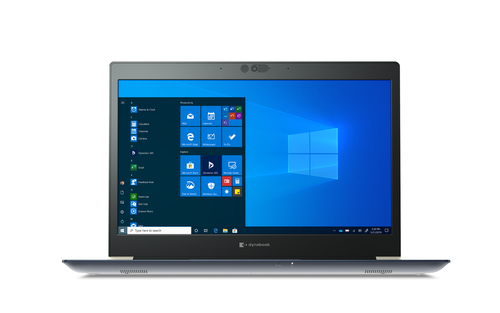

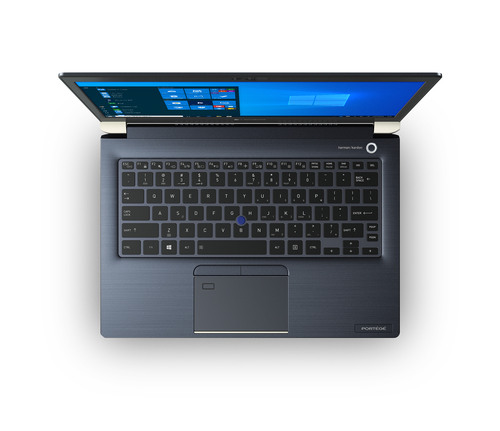

Dynabook Portégé X30-G-146 Intel® Core™ i7 i7-10510U Laptop

Portégé X30-G-146 Intel® Core™ i7 i7-10510U Laptop

33.8 cm (13.3") Full HD 32 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Navy

Model X30-G-146Part no. A1PUR41E116JEAN 4062507110954

122 specifications Checked today

Display33.8 cm (13.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 1 TB
Graphics: Not available

Brand: Dynabook
Category: Laptop
Model: X30-G-146
Part number: A1PUR41E116J
EAN / UPC: 4062507110954
Also known as: Dynabook Portégé X30-G-146 Intel® Core™ i7 i7-10510U Laptop 33.8 cm (13.3") Full HD 32 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Navy

Specifications

122 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Navy
Form factor	Clamshell

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IGZO
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	470 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10510U
Processor cores	4
Processor boost frequency	4.9 GHz
Processor frequency	1.8 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.3 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
ECC	No

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card 4K support	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Rear camera	No

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
3G standards	HSPA+
4G standard	LTE
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Thunderbolt technology	Yes
HDMI ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
GPS (satellite)	Yes

Keyboard

Specification	Value
Pointing device	Touchpad + Accupoint
Keyboard backlit	Yes
Numeric keypad	No
Full-size keyboard	Yes
Keyboard number of keys	87

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Trial software	Microsoft 365

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery life (max)	12.42 h

Power

Specification	Value
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
USB charging voltage	5,9,15,20 V

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Smart card reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes

Certificates

Specification	Value
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.05 kg
Width	316 mm
Depth	227 mm
Height	16.4 mm
