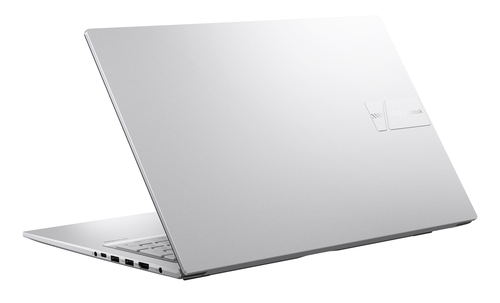

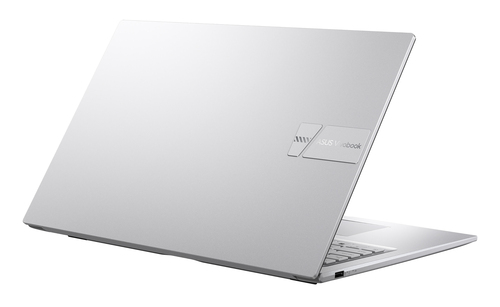

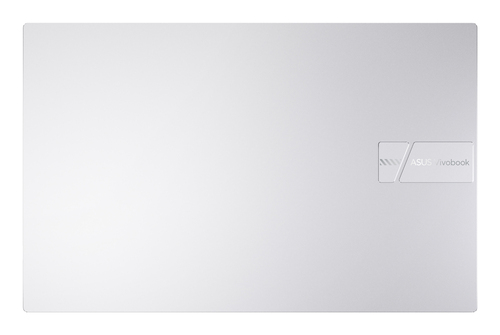

Vivobook 17 X1704ZA-AU037W Intel® Pentium® Gold 8505 Laptop 43.9 cm (17.3") Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 11 Home Silver
Model X1704ZA-AU037WPart no. 90NB10F1-M00460EAN 197105219496
98 specifications Checked today
- Display43.9 cm (17.3")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Pentium® Gold
- Memory8 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Pentium® Gold
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- ASUS
- Category
- Laptop
- Model
- X1704ZA-AU037W
- Part number
- 90NB10F1-M00460
- EAN / UPC
- 197105219496, 4711387219492
- Also known as
- ASUS Vivobook 17 X1704ZA-AU037W Intel® Pentium® Gold 8505 Laptop 43.9 cm (17.3") Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 11 Home Silver
Specifications
98 specifications in 23 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Silver |
| Colour name | Cool Silver |
| Form factor | Clamshell |
| Housing material | Plastic |
| Market positioning | Home |
| Introduction year | 2023 |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 250 cd/m² |
| Colour gamut | 45% |
| RGB colour space | NTSC |
| Maximum refresh rate | 60 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Gold |
| Processor model | 8505 |
| Processor cores | 5 |
| Processor boost frequency | 4.4 GHz |
| Processor cache | 8 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
Audio
| Specification | Value |
|---|---|
| Audio system | SonicMaster |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 4.5 mm |
Performance
| Specification | Value |
|---|---|
| Repairability index | 7.8 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 50 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 2.37 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
| USB Type-C charging port | No |
| USB Power Delivery (USB PD) | No |
Security
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.1 kg |
| Width | 399.3 mm |
| Depth | 254.3 mm |
| Height | 19.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 65 mm |
| Package depth | 515 mm |
| Package height | 305 mm |
| Package weight | 3.67 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
