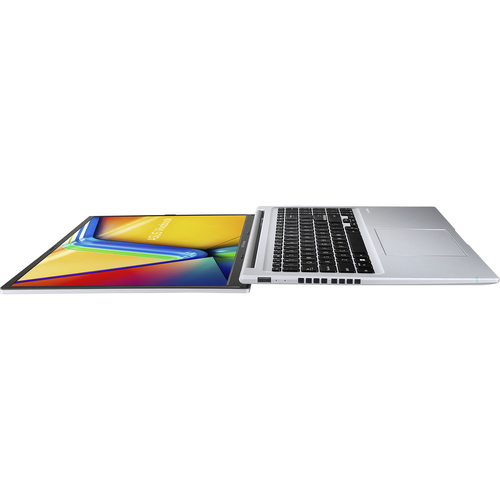

Vivobook 16 X1605ZA-MB004W Intel® Core™ i5 i5-1235U Laptop 40.6 cm (16") WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Silver
Model X1605ZA-MB004WPart no. 90NB0ZA2-M00LL0EAN 197105241398
103 specifications Checked today
- Display40.6 cm (16")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
Overview
- Display
- 40.6 cm (16")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Brand
- ASUS
- Category
- Laptop
- Model
- X1605ZA-MB004W
- Part number
- 90NB0ZA2-M00LL0
- EAN / UPC
- 197105241398, 4711387241394
- Also known as
- ASUS Vivobook 16 X1605ZA-MB004W Intel® Core™ i5 i5-1235U Laptop 40.6 cm (16") WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Silver
Specifications
103 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Silver |
| Colour name | Transprant Silver |
| Form factor | Clamshell |
| Housing material | Plastic |
| Market positioning | Home |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Colour gamut | 45% |
| RGB colour space | NTSC |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-1235U |
| Processor cores | 10 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 12 W |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Audio system | SonicMaster |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 4.5 mm |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 42 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 2.37 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
| USB Type-C charging port | No |
Security
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.88 kg |
| Width | 358.7 mm |
| Depth | 249.5 mm |
| Height | 19.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 65 mm |
| Package depth | 488 mm |
| Package height | 310 mm |
| Package weight | 4.82 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
