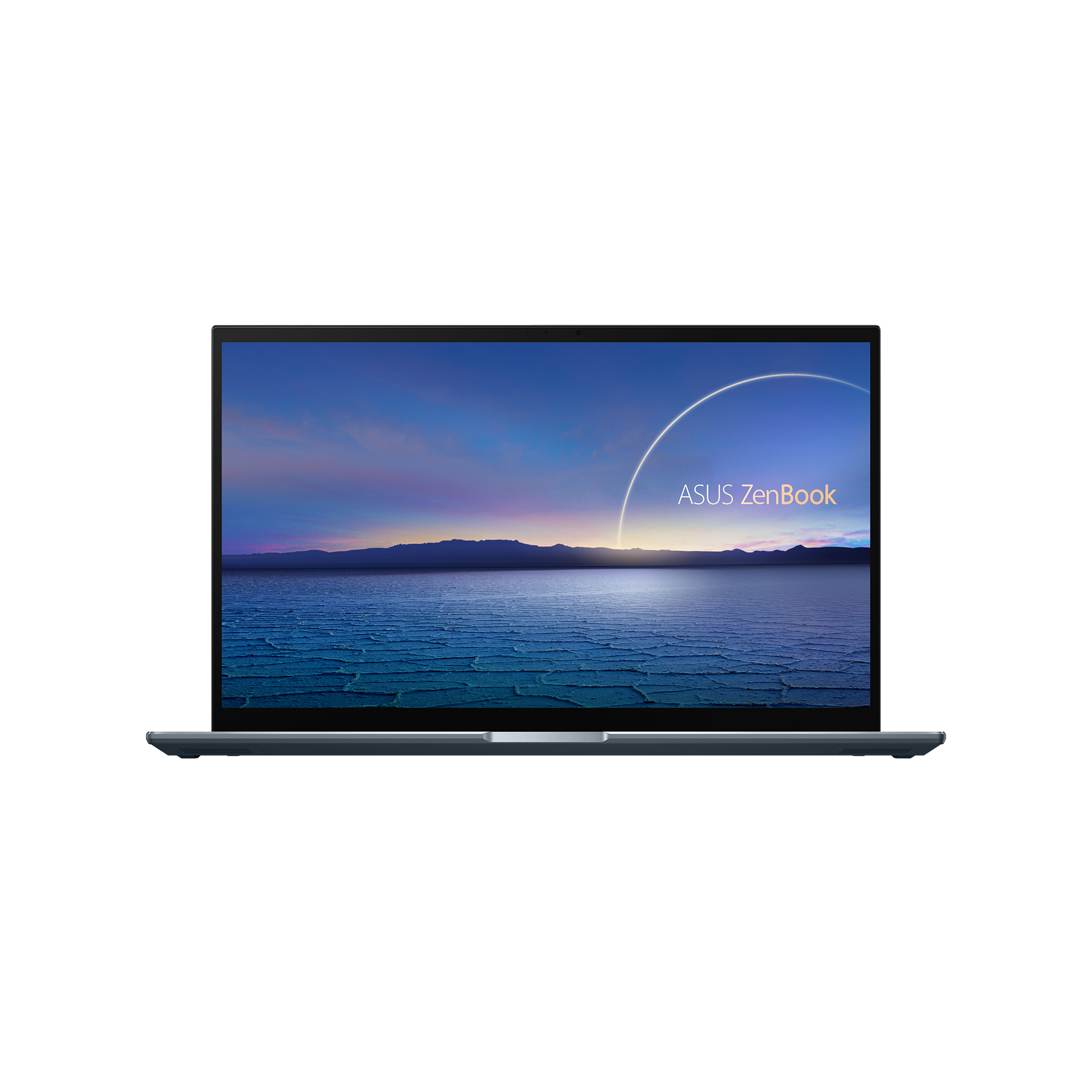

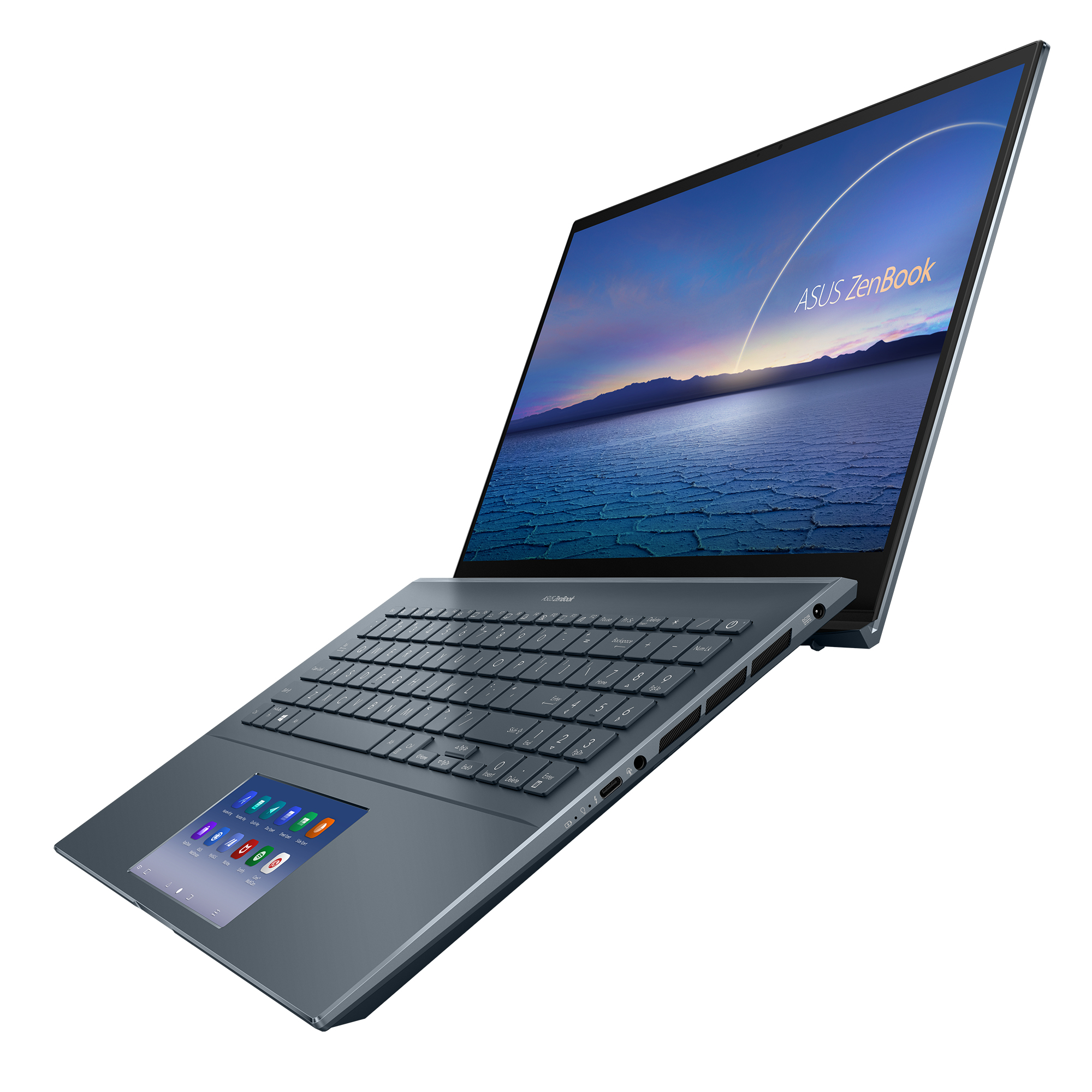

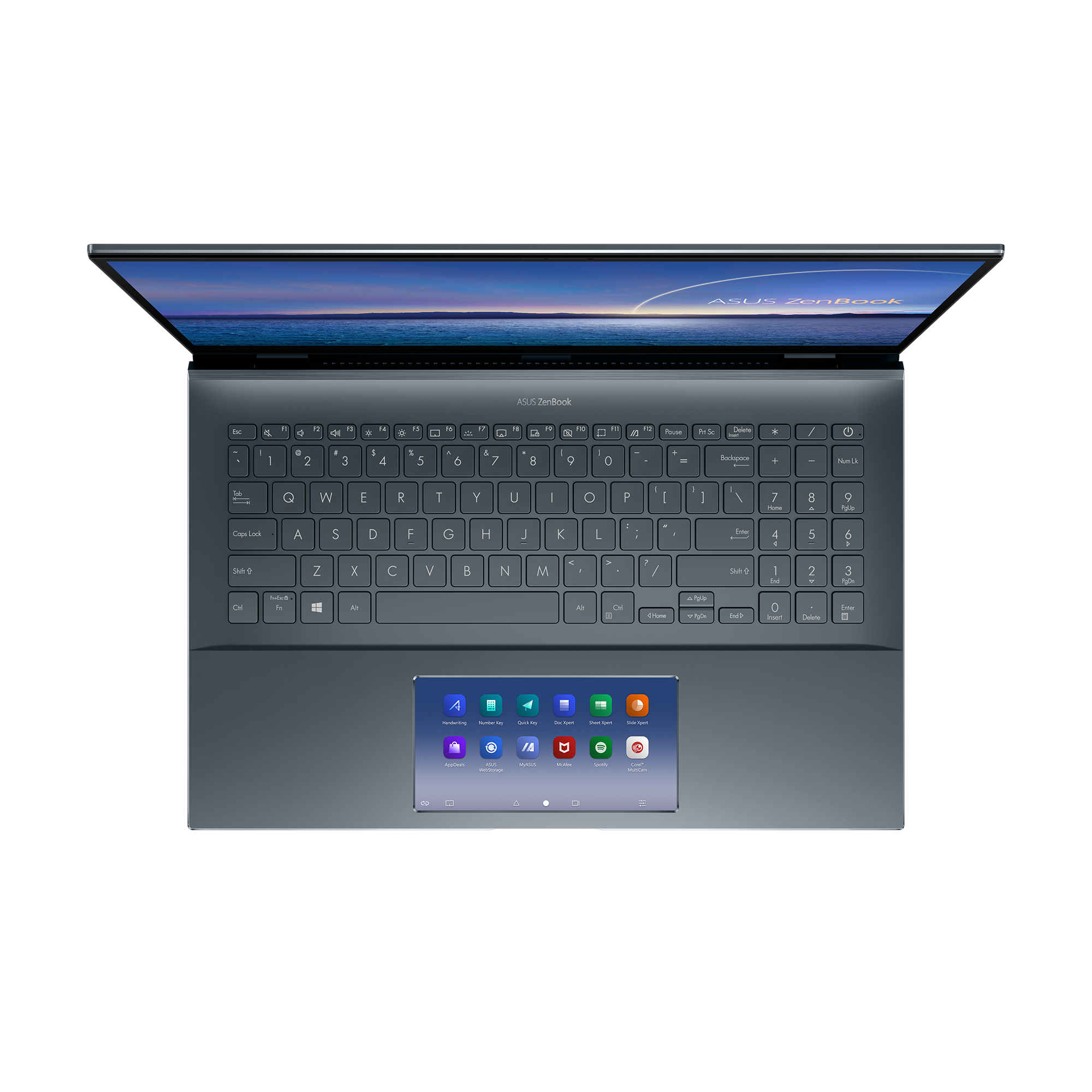

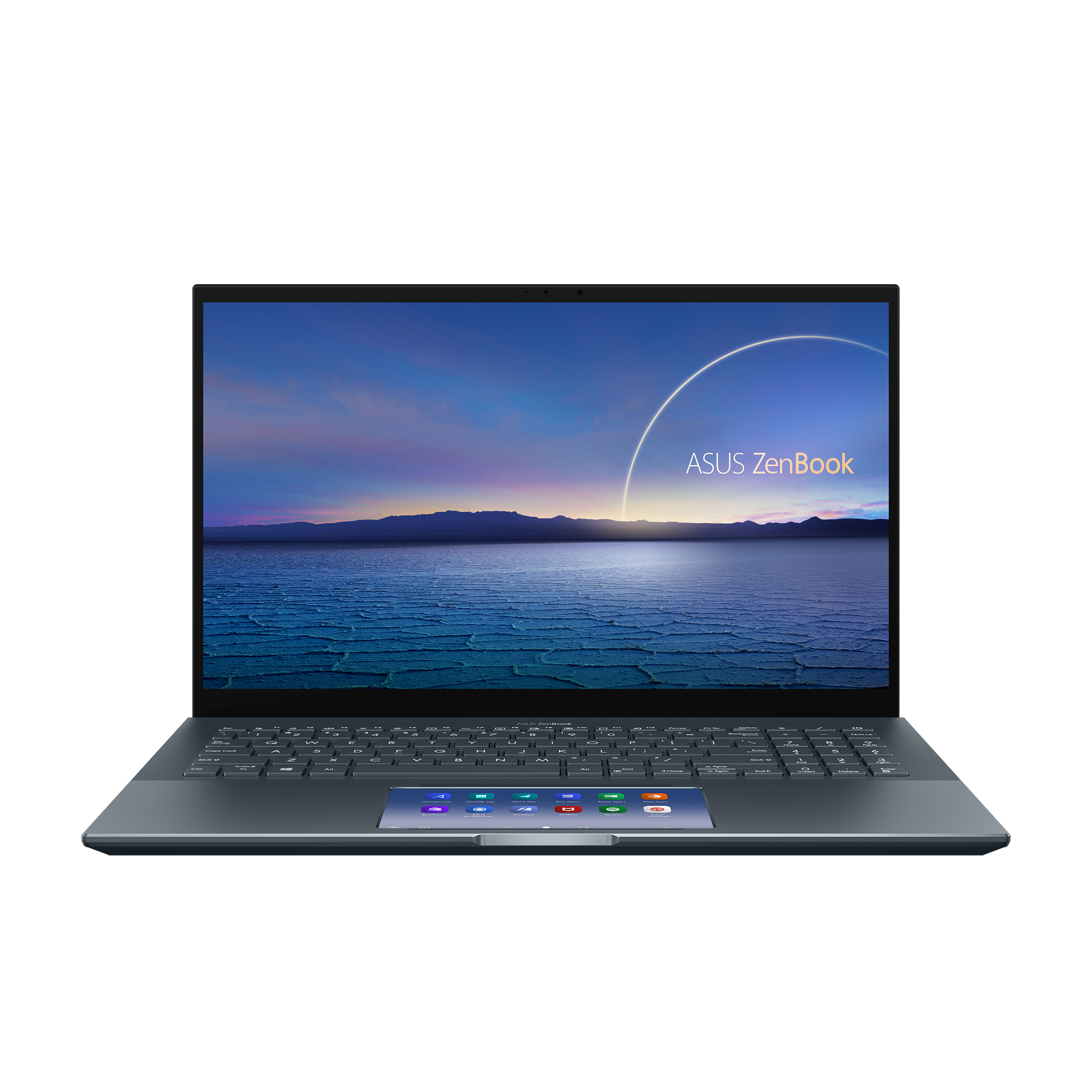

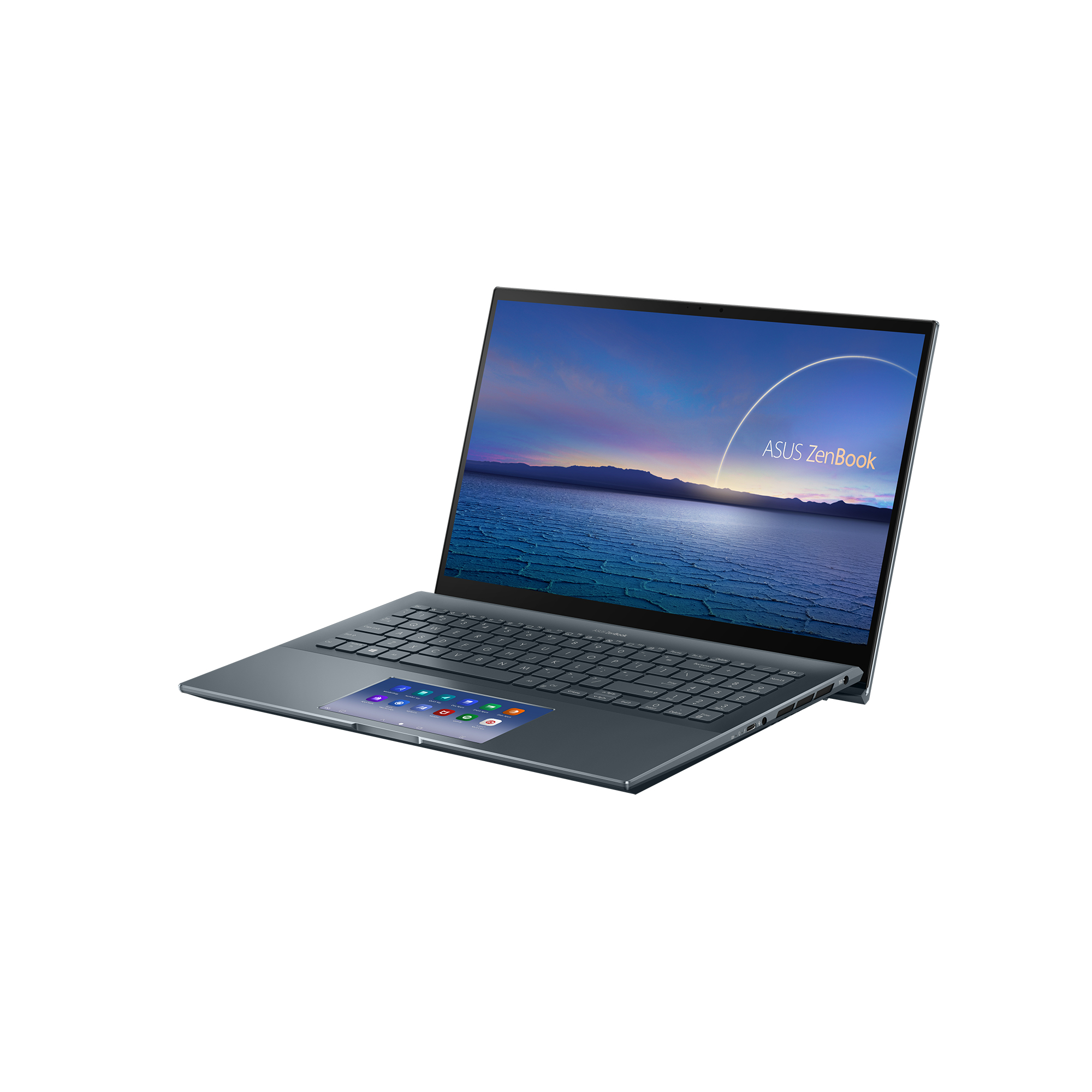

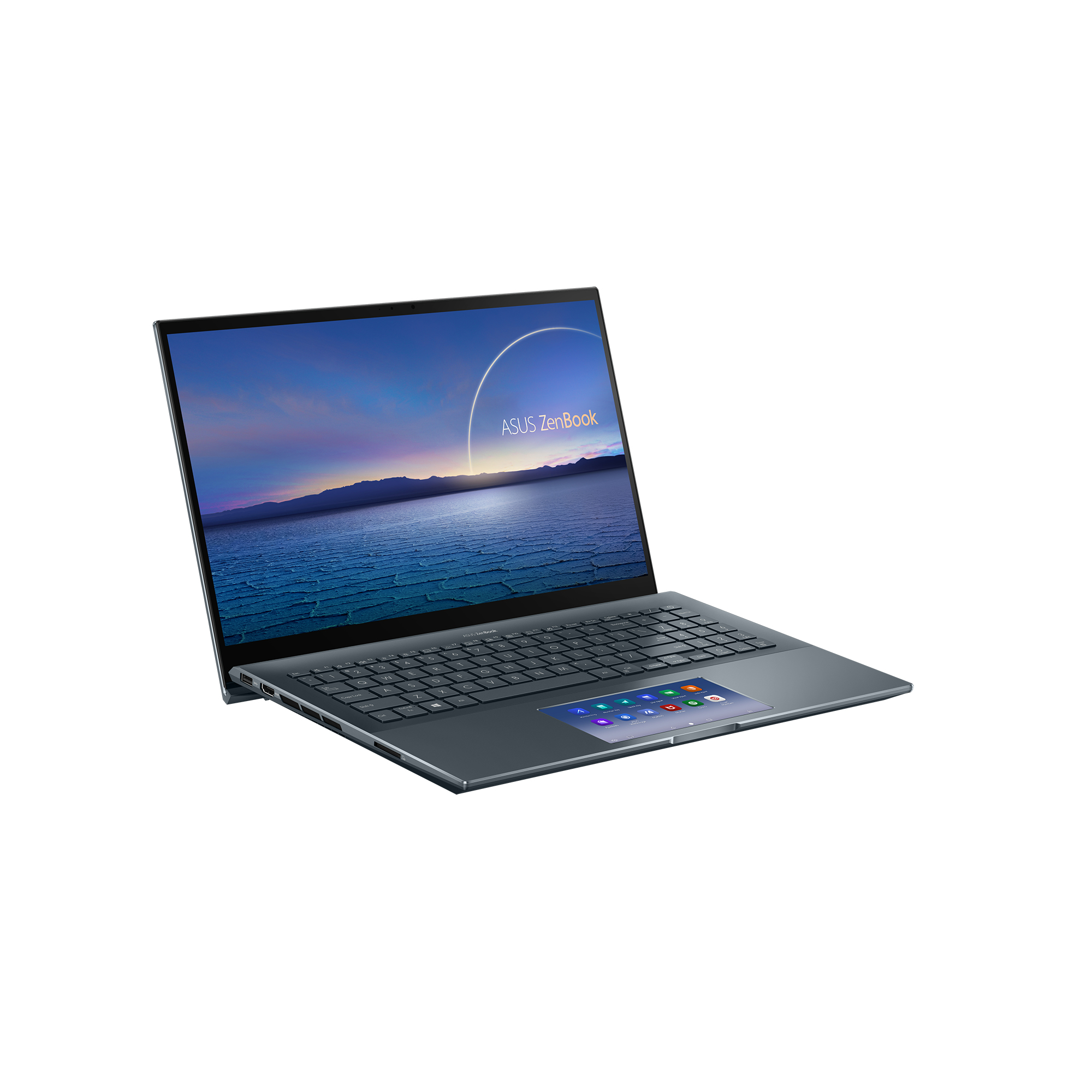

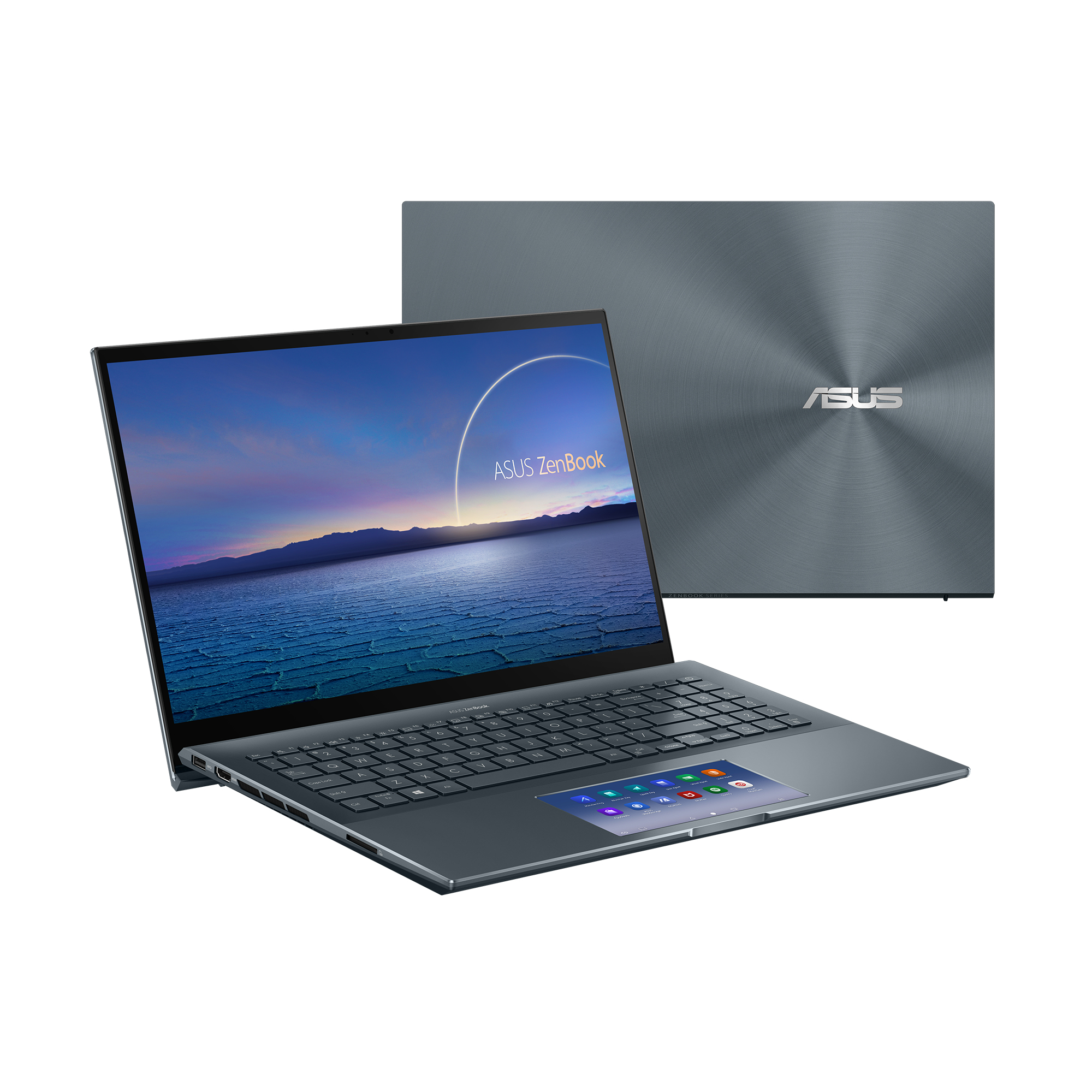

ASUS Zenbook Pro 15 UX535LH-BN150T Intel® Core™ i7 i7-10870H Laptop

Zenbook Pro 15 UX535LH-BN150T Intel® Core™ i7 i7-10870H Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Max-Q Wi-Fi 6

Model UX535LH-BN150TPart no. 90NB0RX2-M03620EAN 4711081147978

103 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA® GeForce® GTX 1650 Max-Q

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce® GTX 1650 Max-Q

Brand: ASUS
Category: Laptop
Model: UX535LH-BN150T
Part number: 90NB0RX2-M03620
EAN / UPC: 4711081147978
Also known as: ASUS Zenbook Pro 15 UX535LH-BN150T Intel® Core™ i7 i7-10870H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Max-Q Wi-Fi 6

Specifications

103 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Pine Grey
Form factor	Clamshell
Market positioning	Home

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10870H
Processor cores	8
Processor boost frequency	5 GHz
Processor frequency	2.2 GHz
Processor cache	16 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1650 Max-Q
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt technology	Yes
HDMI ports quantity	1
HDMI version	2.0b
Thunderbolt 3 ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM470
Repairability index	6.3

Keyboard

Specification	Value
Pointing device	ScreenPad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	64 Wh

Power

Specification	Value
AC adapter power	150 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	7.5 A
AC adapter output voltage	20 V
DC-in jack	Yes

Security

Specification	Value
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Weight & dimensions

Specification	Value
Weight	1.8 kg
Width	354 mm
Depth	238 mm
Height (front)	1.78 cm
Height (rear)	1.8 cm
