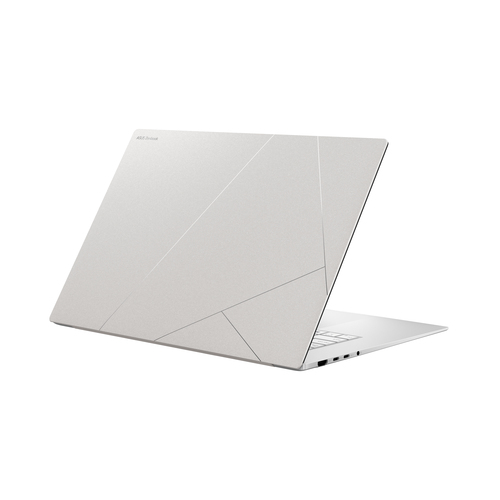

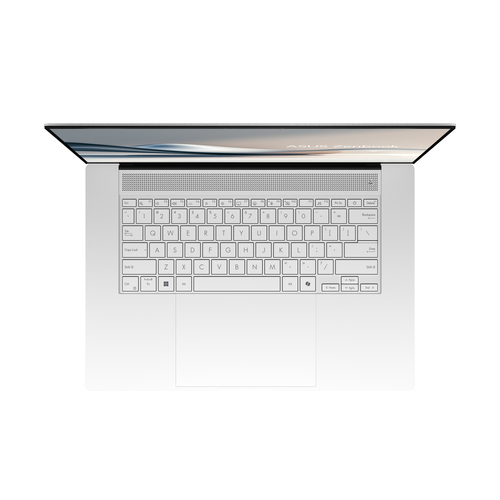

ASUS Zenbook S16 UM5606WA-RJ091W AMD Ryzen AI 9 HX 370 Laptop

Zenbook S16 UM5606WA-RJ091W AMD Ryzen AI 9 HX 370 Laptop

40.6 cm (16") Touchscreen 3K 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home White

Model UM5606WA-RJ091WPart no. 90NB13M4-M003U0EAN 4711387634110

109 specifications Checked today

Display40.6 cm (16")
Resolution2880 x 1800 pixels
ProcessorAMD Ryzen AI 9 HX
Memory32 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2880 x 1800 pixels
Processor: AMD Ryzen AI 9 HX
Memory: 32 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: UM5606WA-RJ091W
Part numbers: 90NB13M4-M003U0, 90NB13M4-M00PY0
EAN / UPC: 4711387634110, 4711636138673, 197105634114, 4711387637470
Also known as: ASUS Zenbook S16 UM5606WA-RJ091W AMD Ryzen AI 9 HX 370 Laptop 40.6 cm (16") Touchscreen 3K 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home White

Specifications

109 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	White
Colour name	Scandinavian White
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	3K
Panel type	OLED
Display number of colours	1.07 billion colours
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	500 cd/m²
Colour gamut	100%
Display diagonal (metric)	40.6 cm
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 500

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen AI 9 HX
Processor generation	AMD Ryzen AI 300 Series
Processor model	370
Processor cores	12
Processor threads	24
Processor boost frequency	5.1 GHz
Processor frequency	2 GHz
Processor cache type	L2 & L3

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	80 TOPs
NPU performance up to	50 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 890M

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	9.3

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	Microsoft 365 (30-day trial)

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	78 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	353.6 mm
Depth	243 mm
Height (front)	1.19 cm
Height (rear)	1.29 cm

Packaging data

Specification	Value
Package width	494 mm
Package depth	116 mm
Package height	320 mm
Package weight	1.75 kg

Packaging content

Specification	Value
AC adapter included	Yes
