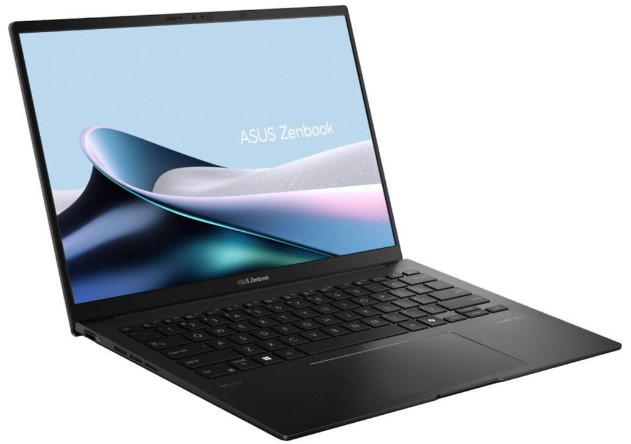

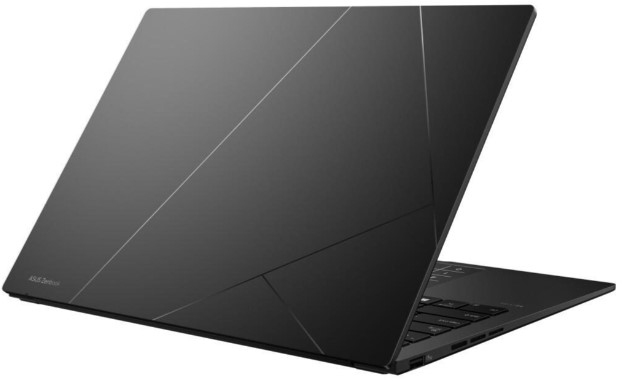

ASUS Zenbook 14 OLED UM3406HA-QD161X AMD Ryzen™ 7 8840HS Laptop

Zenbook 14 OLED UM3406HA-QD161X AMD Ryzen™ 7 8840HS Laptop

35.6 cm (14") WUXGA 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Black German

Model UM3406HA-QD161XPart no. 90NB1271-M009Y0EAN 4711387763308

101 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: UM3406HA-QD161X
Part number: 90NB1271-M009Y0
EAN / UPC: 4711387763308
Also known as: ASUS Zenbook 14 OLED UM3406HA-QD161X AMD Ryzen™ 7 8840HS Laptop 35.6 cm (14") WUXGA 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Black German

Specifications

101 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Jade Black
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	OLED
Native aspect ratio	16:10
Display bezel technology	NanoEdge
Display brightness	400 cd/m²
Colour gamut	100%
Display diagonal (metric)	35.6 cm
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 8000 Series
Processor model	8840HS
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.3 GHz
Processor cache	24 MB
Processor cache type	L2 & L3
L3 cache	16 MB
L2 cache	8 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 780M

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy cover
Rear camera	No

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	9.2

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Pro
Trial software	Microsoft 365, McAfee

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	312.4 mm
Depth	220.1 mm
Height	14.9 mm

Packaging data

Specification	Value
Package width	75 mm
Package depth	410 mm
Package height	284 mm
Package weight	1.45 kg
