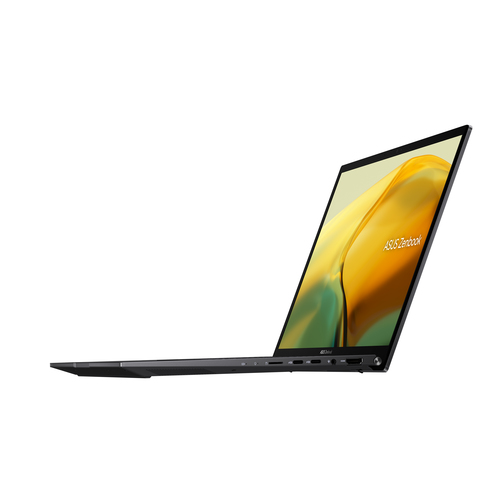

Zenbook 14 UM3402YA-KP475W AMD Ryzen™ 7 7730U Laptop
35.6 cm (14") WQXGA 16 GB LPDDR4x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Black
Model UM3402YA-KP475WPart no. 90NB0W95-M01NA0EAN 4711387655061
88 specifications Checked today
- Display35.6 cm (14")
- Resolution2560 x 1600 pixels
- ProcessorAMD Ryzen™ 7
- Memory16 GB
- Storage1 TB
- GraphicsNot available
Overview
- Display
- 35.6 cm (14")
- Resolution
- 2560 x 1600 pixels
- Processor
- AMD Ryzen™ 7
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- Not available
- Brand
- ASUS
- Category
- Laptop
- Model
- UM3402YA-KP475W
- Part number
- 90NB0W95-M01NA0
- EAN / UPC
- 4711387655061
- Also known as
- ASUS Zenbook 14 UM3402YA-KP475W AMD Ryzen™ 7 7730U Laptop 35.6 cm (14") WQXGA 16 GB LPDDR4x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Black
Specifications
88 specifications in 17 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Colour name | Jade Black |
| Form factor | Clamshell |
| Market positioning | Home |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS-Level |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 400 cd/m² |
| Colour gamut | 100% |
| RGB colour space | sRGB |
| Maximum refresh rate | 60 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 7000 Series |
| Processor model | 7730U |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 2 GHz |
| Processor cache type | L2 & L3 |
| L3 cache | 16 MB |
| L2 cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
Audio
| Specification | Value |
|---|---|
| Audio system | Smart Amp |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | Full HD |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 7.5 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 75 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.25 A |
| AC adapter output voltage | 20 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.35 kg |
| Width | 313.6 mm |
| Depth | 220.6 mm |
| Height | 16.9 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
