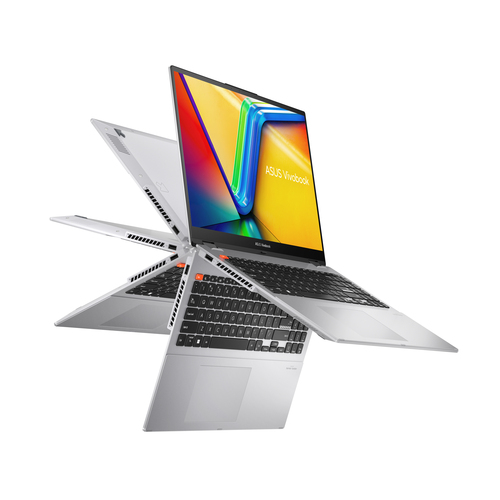

ASUS Vivobook S16 Flip TN3604YA-MC131W AMD Ryzen™ 7 7730U Hybrid (2-in-1)

Vivobook S16 Flip TN3604YA-MC131W AMD Ryzen™ 7 7730U Hybrid (2-in-1)

40.6 cm (16") Touchscreen WUXGA 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows

Model TN3604YA-MC131WPart no. 90NB1042-M005L0EAN 4711387630600

94 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: TN3604YA-MC131W
Part numbers: 90NB1042-M005L0, 90NB1042-M005M0
EAN / UPC: 4711387630600, 197105630697, 4711387630693
Also known as: ASUS Vivobook S16 Flip TN3604YA-MC131W AMD Ryzen™ 7 7730U Hybrid (2-in-1) 40.6 cm (16") Touchscreen WUXGA 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows

Specifications

94 specifications in 17 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Colour name	Cool Silver
Form factor	Convertible (Folder)
Housing material	Aluminium, Plastic
Market positioning	Home

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 7000 Series
Processor model	7730U
Processor cores	8
Processor boost frequency	4.5 GHz
Processor frequency	2 GHz
Processor cache	16 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	9.3

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTY
Keyboard language	Dutch

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.37 A
AC adapter output voltage	19 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	355.2 mm
Depth	252.4 mm
Height (front)	1.96 cm
Height (rear)	1.97 cm
