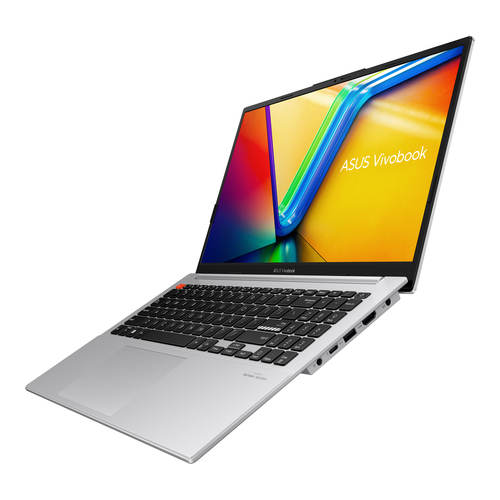

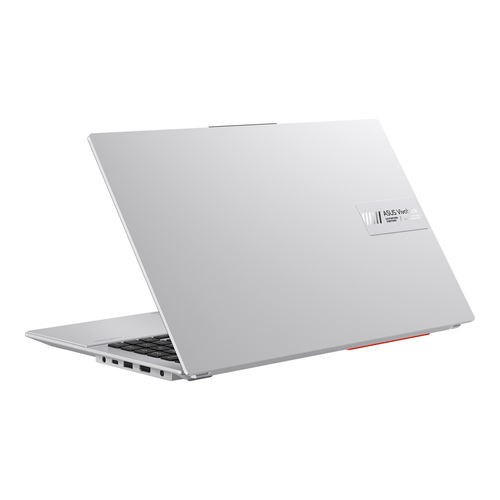

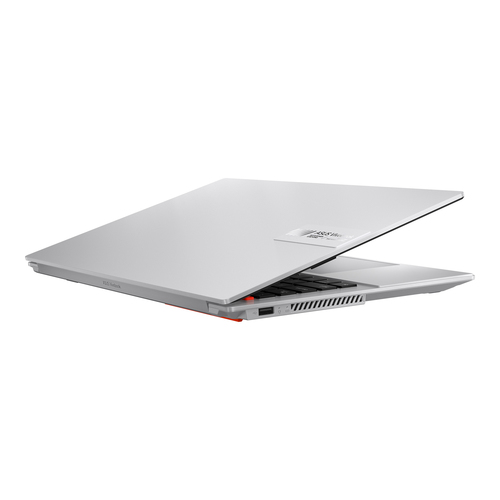

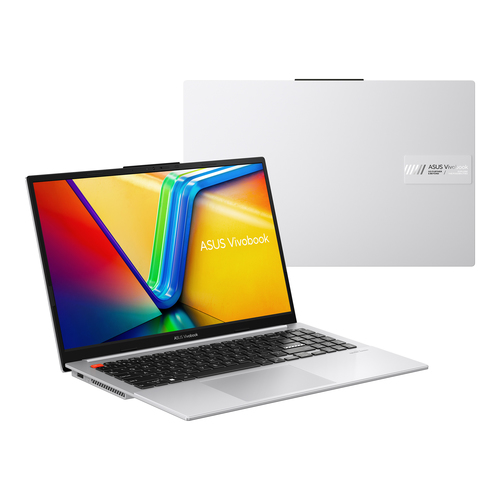

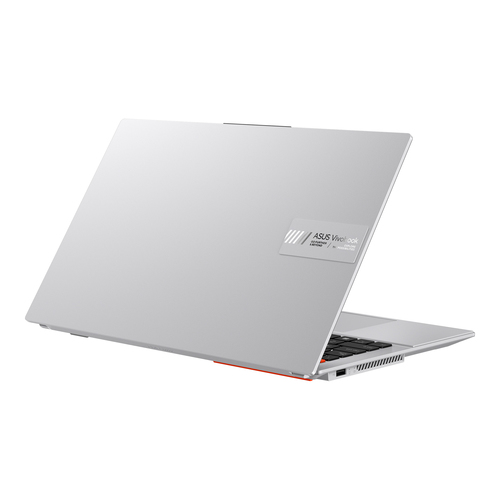

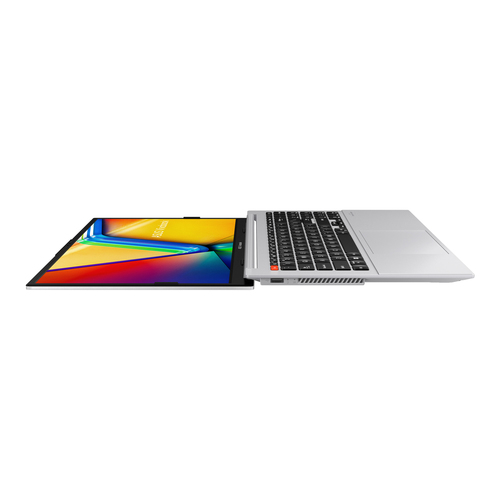

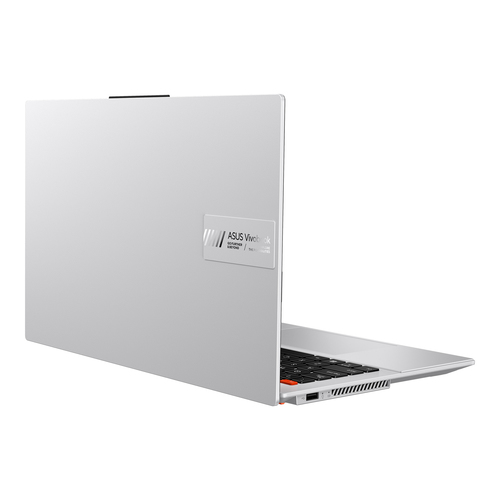

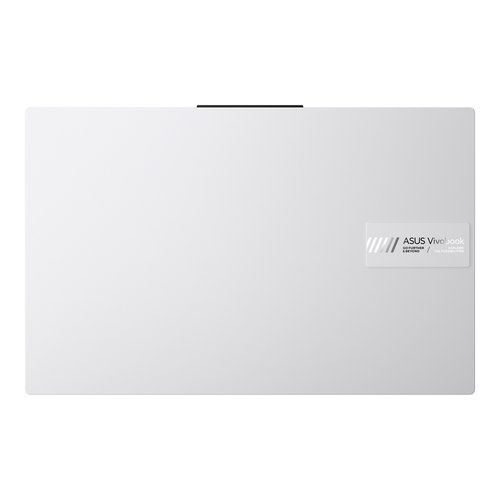

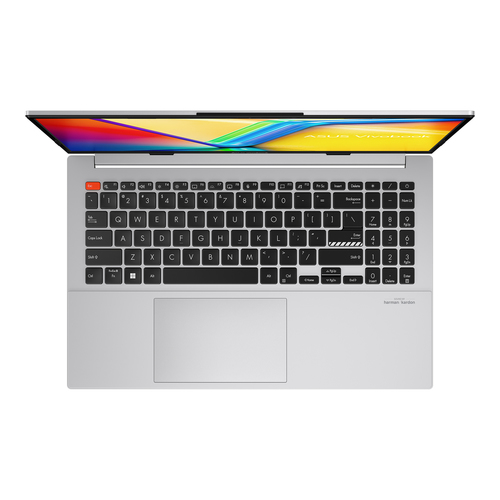

ASUS Vivobook S15 OLED S5504VA-L1049W Intel® Core™ i7 i7-13700H Laptop

Vivobook S15 OLED S5504VA-L1049W Intel® Core™ i7 i7-13700H Laptop

39.6 cm (15.6") Full HD 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home

Model S5504VA-L1049WPart no. 90NB0ZK3-M002A0EAN 197105059191

100 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: S5504VA-L1049W
Part number: 90NB0ZK3-M002A0
EAN / UPC: 197105059191, 4711387059197
Also known as: ASUS Vivobook S15 OLED S5504VA-L1049W Intel® Core™ i7 i7-13700H Laptop 39.6 cm (15.6") Full HD 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home

Specifications

100 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell
Housing material	Aluminium
Introduction year	2023

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	OLED
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model	i7-13700H
Processor cores	14
Processor boost frequency	5 GHz
Processor cache	24 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.

Processor special features

Specification	Value
Intel® Evo™ Platform Verified	Yes
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.8 kg
Width	359.3 mm
Depth	229.4 mm
Height	17.9 mm

Packaging data

Specification	Value
Package width	460 mm
Package depth	65 mm
Package height	290 mm
Package weight	2.57 kg
