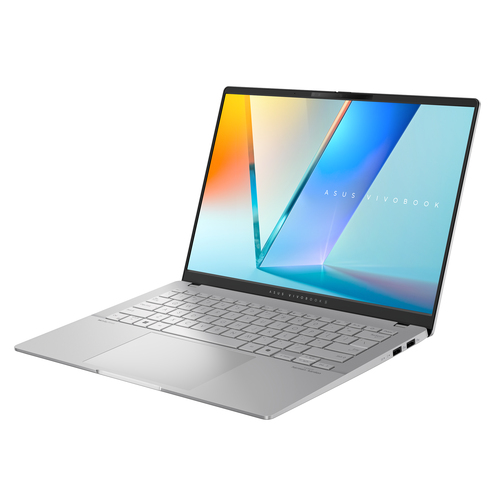

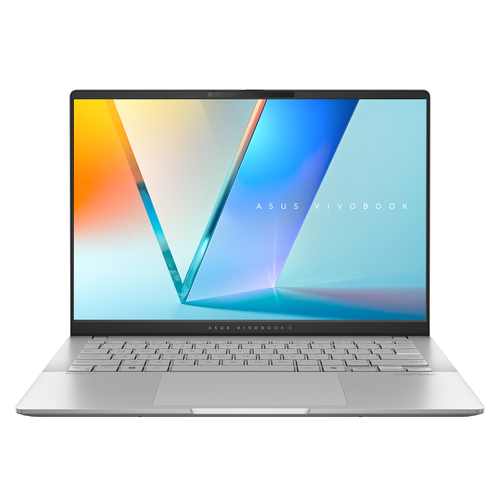

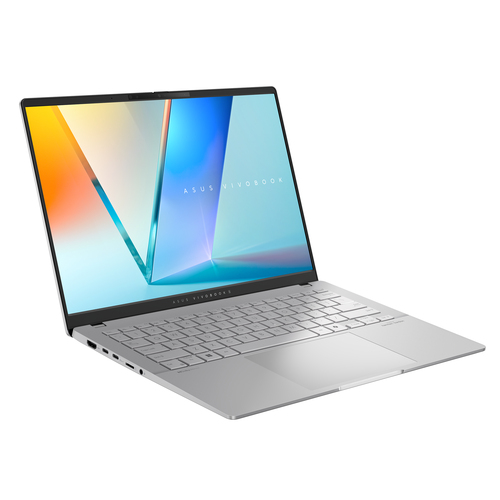

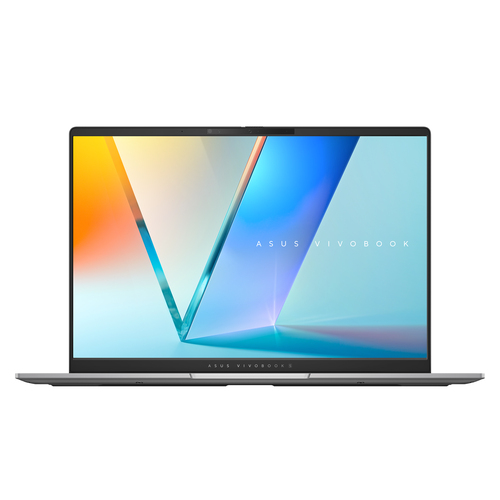

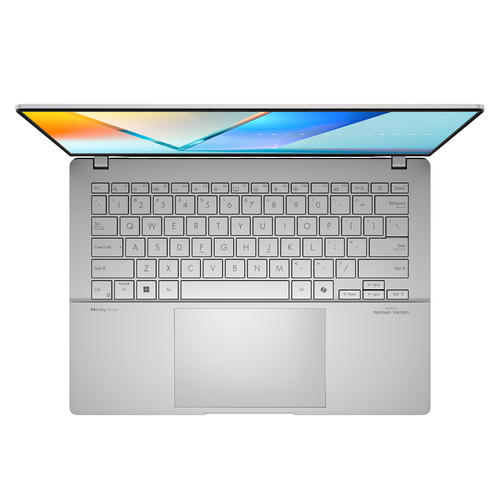

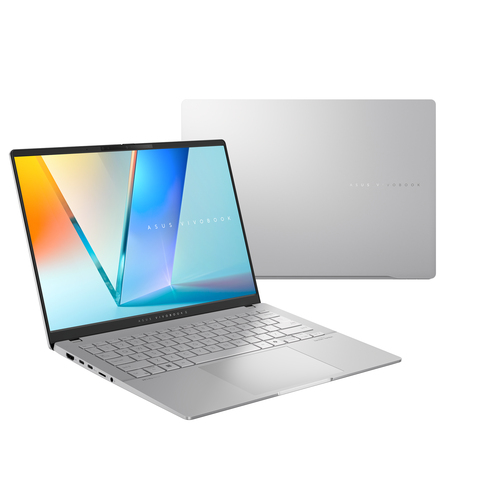

ASUS Vivobook S14 OLED S5406WA-DRQD122W Copilot+ PC AMD Ryzen AI 9 365 Laptop

Vivobook S14 OLED S5406WA-DRQD122W Copilot+ PC AMD Ryzen AI 9 365 Laptop

35.6 cm (14") WUXGA 24 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11

Model S5406WA-DRQD122WPart no. 90NB14P1-M007B0EAN 4711387691090

114 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen AI 9
Memory24 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen AI 9
Memory: 24 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: S5406WA-DRQD122W
Part number: 90NB14P1-M007B0
EAN / UPC: 4711387691090
Also known as: ASUS Vivobook S14 OLED S5406WA-DRQD122W Copilot+ PC AMD Ryzen AI 9 365 Laptop 35.6 cm (14") WUXGA 24 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11

Specifications

114 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home
Introduction year	2024
Certified refurbished	No

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	OLED
Display number of colours	1.07 billion colours
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 600

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen AI 9
Processor generation	AMD Ryzen AI 300 Series
Processor model	365
Processor cores	10
Processor threads	20
Processor boost frequency	5 GHz
Processor frequency	2 GHz
Processor cache type	L2 & L3
L3 cache	24 MB
L2 cache	10 MB

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	73 TOPs
NPU performance up to	50 TOPs

Memory

Specification	Value
Internal memory	24 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	24 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon 880M

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.4

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Microsoft Copilot	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 -60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	REACH

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Weight & dimensions

Specification	Value
Weight	1.3 kg
Width	310.5 mm
Depth	221.9 mm
Height (front)	1.39 cm
Height (rear)	1.59 cm

Packaging content

Specification	Value
AC adapter included	Yes
